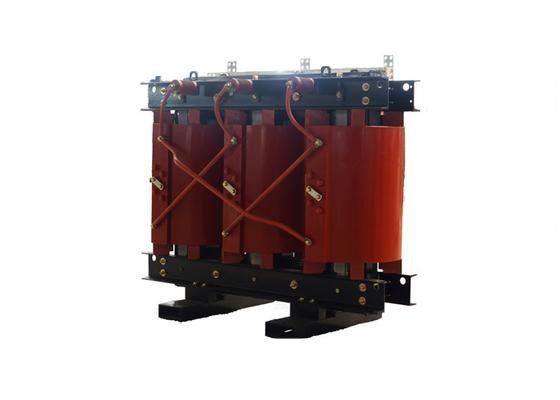

11 KV Cast Resin Dry Type Distribution Transformer / Step Down Transformer

11 KV  Cast Resin Dry Type Distribution Transformer / Step Down Transformer
11 KV  Cast Resin Dry Type Distribution Transformer / Step Down Transformer 11 KV  Cast Resin Dry Type Distribution Transformer / Step Down Transformer

Large Image :  11 KV Cast Resin Dry Type Distribution Transformer / Step Down Transformer

Product Details:
Place of Origin: China
Brand Name: Tianan Electric
Certification: CESI,CTQC,ISO
Model Number: SCB11 SCB10
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: Pending
Packaging Details: Nude
Delivery Time: 60 Work Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 20000PCS
Detailed Product Description
Tapping Range: 2.5% Or Others Altitude: Up To 1, 000m Above Sea Level
Environment: Indoor Insulation: Resin
Frequency: 50Hz Service Life: 20 Years
High Light:

dry type electrical transformers

,

three phase dry type transformer

11 KV Cast Resin Dry Type Distribution Transformer / Step Down Transformer

NINGBO TIANAN (GROUP) CO., LTD.



General:

Epoxy resin cast dry-type transformers, can be used as oil-immersed distribution transformer replacement products, all types of dry-type transformers in the best performance products, especially for urban power grids, high-rise buildings, business centers, theaters, hospitals, Hotels, tunnels, subways, underground power plants, laboratories, stations, docks, airports, combined substations and other important places.



Technical Parameter:

Type P0

Pk

(75℃)

U k I 0 LPA Dimensions(mm)

GT

(Kg)

a b c d g h k i
SC10-30/10 190 610











4

2.2 43 700 460 750 400 230 260 240 200 320
SC10-50/10 270 860 2.0 43 945 750 950 550 210 330 315 210 500
SC10-80/10 365 1200 1.8 43 945 750 950 550 220 340 315 210 580
SC10-100/10 400 1370 1.8 44 945 750 970 550 225 345 315 210 660
SC10-125/10 470 1610 1.6 44 1040 860 1050 660 235 355 355 225 790
SC10-160/10 545 1850 1.4 44 1040 860 1090 660 240 360 355 225 920
SC10-200/10 625 2200 1.4 45 1040 860 1120 660 250 370 370 225 1020
SC10-250/10 720 2400 1.4 45 1170 860 1120 660 260 380 390 225 1180
SC10-315/10 880 3030 1.2 47 1180 800 1285 660 240 334 400 350 1410
SCB10-400/10 980 3480 1.2 47 1280 800 1285 660 277 345 430 350 1630
SCB10-500/10 1150 4260 1.2 47 1330 800 1315 660 282 349 445 350 1840
SCB10-630/10 1280 5200 1.0 50 1440 800 1265 660 282 343 480 350 2000
SCB10-1000/10 1760 7090 6 0.8 53 1530 920 1510 820 299 361 510 350 2800
SCB10-1250/10 2060 8460 0.8 53 1620 920 1590 820 308 370 545 350 3320
SCB10-1600/10 2400 10240 0.8 53 1670 920 1760 820 319 378 560 350 3970
SCB10-2000/10 3060 12700 0.6 54 1850 920 1830 820 371 383 605 350 4600
SCB10-2500/10 3600 15000 0.6 56 1980 1170 1865 1070 393 465 660 350 5820

Notes:

The Dimension and weight will be changed according to the requirements.

These two data in the table will be subject to the factory documents.
