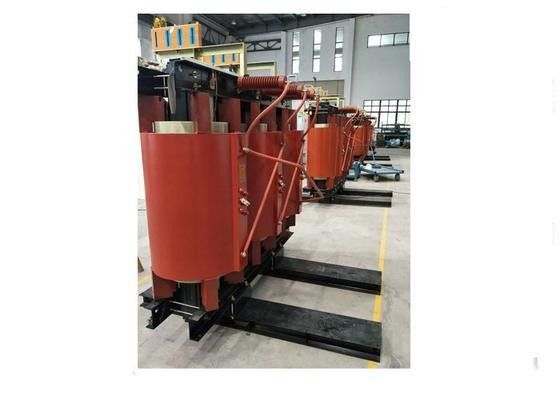

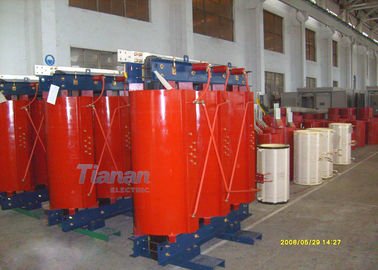

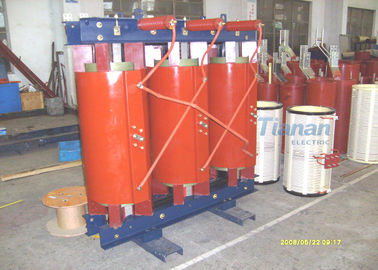

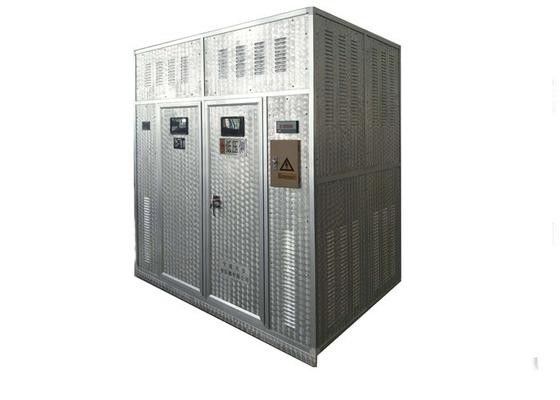

Scb Series Outdoor Dry Type Transformer 35kv With An / Af Cooling Mode

Scb Series Outdoor Dry Type Transformer 35kv With An / Af Cooling Mode
Scb Series Outdoor Dry Type Transformer 35kv With An / Af Cooling Mode Scb Series Outdoor Dry Type Transformer 35kv With An / Af Cooling Mode Scb Series Outdoor Dry Type Transformer 35kv With An / Af Cooling Mode Scb Series Outdoor Dry Type Transformer 35kv With An / Af Cooling Mode

Large Image :  Scb Series Outdoor Dry Type Transformer 35kv With An / Af Cooling Mode

Product Details:
Place of Origin: China
Brand Name: Tianan Electric
Certification: ISO9001-2000, ISO9001, CCC
Model Number: SCB10
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: Pending
Packaging Details: wooden material
Delivery Time: 45 work days
Payment Terms: L/C, T/T, D/P, D/A, Western Union, MoneyGram
Supply Ability: 2000Sets Per Year
Detailed Product Description
Usage: Distribution Transformer Shape Of Core: Ring
Insulation Grade: F/H Rated Voltage: 6-35KV
Cooling Mode: AN/AF Coils: Copper Conductor
High Light:

dry type distribution transformer

,

three phase dry type transformer



35KV Transformer Station Resin Insulation Dry - Type Power Transformer



Overview

SCB series resin insulation dry type power transformer is the new dry type low power loss and low noise, it imported FRVT manufacturing technology from ABB-Micafil in 1990’s and newest technology of padding vacuum thin insulation pouring and low voltage foil winding from Europe. In the base of existing equipment clipping line from Germany Georg company and stowe burger winding machine, it imported HUBERS new pouring equipment from Germany and new type foil winding machine from Italy again. The product feature reached and exceed to IEC60076, GB1094.11-2007, GB/T10228-2008 standard by evaluation.

This product is widely used in transmit and transform system, hotel, restaurant, high building, commercial center, stadium, petroleum chemical factory, underground railway, station, airport and well drilling platform on sea, ect. It is special suitable for load center and place specially need fire proof.





Technical date:
1 Capacity: 30~10000kVA
2 Voltage class: 6-35 kV
3 Tapping range: ± 2× 2.5%, ±5% or others
4 Number of phases: Three phase
5 Frequency: 50Hz or 60Hz
6 Connection symbol: Dyn11,Yyn0 or others specified
7 Impedance voltage:

8 Insulation level:
1) 10kV: AC 35 LI 75kv

2) 20kV: AC 50 LI 125kV

3) 35kV: AC 70  LI 170kV
9 Insulation degree : F/H grade
10 Application: widely used in the transmission system
11 Package: Wooden pallet or wooden case
12.Working condition: relative humidity 100%, ambient
temperature not more than 40C.
13. Maximum temperature rising: 100K 125K
14. Cooling mode: air cooling (AN) or fan cooling (AF)

15.Payment Term: 30%~50% in advance as deposit byT/T.Other balance is paid off before delivery and shipment.
