Power Distribution High Voltage Electrical Switchgear For Mining Enterprises

China Ningbo Tianan (Group) Co.,Ltd. certification
China Ningbo Tianan (Group) Co.,Ltd. certification
I'm Online Chat Now

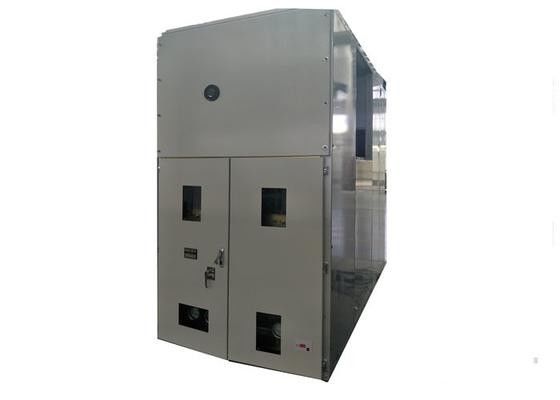

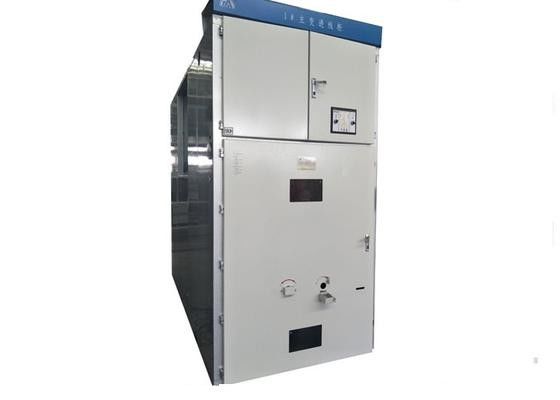

Power Distribution High Voltage Electrical Switchgear For Mining Enterprises

Power Distribution High Voltage Electrical Switchgear For Mining Enterprises
Power Distribution High Voltage Electrical Switchgear For Mining Enterprises Power Distribution High Voltage Electrical Switchgear For Mining Enterprises

Large Image :  Power Distribution High Voltage Electrical Switchgear For Mining Enterprises

Product Details:
Place of Origin: CHINA
Brand Name: Tianan Electric
Certification: ISO9001:2000 IEC62271:200 CCC VDE
Model Number: KYN61-40.5
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Pending
Packaging Details: Wooden Case
Delivery Time: 60 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 5000sets per year
Detailed Product Description
Rated Current: 1250, 1600, 2000,2500A Altitude: <1 000m
Rated Voltage: 35KV Application: Power Plant ,substation , Industrial , Mining Enterprises
High Light:

gas insulated switchgear

,

high voltage electrical switchgear

Indoor 40 . 5 KV High Voltage Switchgear Cubicle For Power Distribution



Product description:

KYT1 (KYN61)-40.5 Power Distribution Cabinet is a three-phase AC 50Hz, indoor whole set distribution unit with rated voltage 40.5kV.,which accept and distribute electric energy in power plant ,substation and industrial and mining enterprises and can control, protect and supervise circuits.




Operating Conditions:



No. Description Requirement
1 Ambient air temperature -15℃ ~ +40℃
2 Average temperature (within 24h) +35℃
3 Altitude ≤1000m
4 Monthly average relative humidity ≤90%
5 Daily average relative humidity(within24h) ≤95%
6 Monthly average water vapor pressure 1.8 kPa
7 Daily average water vapor pressure(24h) 2.2 kPa
8 The ambient air is not clearly contaminated with dust, smoke, corrosive and/or combustible gases, vapors or salt mist.


Note: Customized products are available.

Main technical specification:





ü It is applicable for rated voltage 40.5kV, three phase AC 50Hz indoor electric system.

ü It is used as power receiving and distributing in power plants, substations and industrial and mining enterprises to control, protect and monitor the circuit.

ü The product meets the requirements of GB3906 “3-35kV AC Metal Enclosed Switchgear” and GB/T11022 “Technical Requirements for Indoor AC High Voltage Switchgear”.

ü It can be used coordinately with vacuum circuit breaker ZN85-40.5 or and LN2-40.5 type SF6 circuit breaker.
