24kv High Voltage Circuit Breaker , Ac Circuit Breaker Vacuum Are - Extinguishing Chamber

China 24kv High Voltage Circuit Breaker , Ac Circuit Breaker Vacuum Are - Extinguishing Chamber supplier

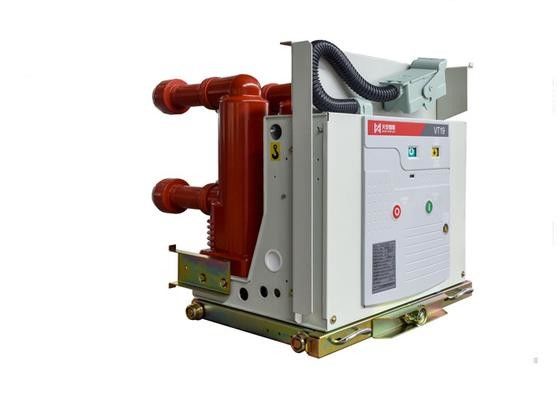

Large Image :  24kv High Voltage Circuit Breaker , Ac Circuit Breaker Vacuum Are - Extinguishing Chamber

Product Details:

Place of Origin: China
Brand Name: Tianan Electric
Certification: GB1984、GB/T11022、DL/T403 and IEC62271
Model Number: VT19-24

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Price: Pending
Packaging Details: Wooden Cases
Delivery Time: 35 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 2000PCS/year
Contact Now
Detailed Product Description
Rated Voltage: 24KV Embedded Poles: APG Process
Rated Current: 630 A,1250A Type: Fixed Type / Handcart Type

24kv Vacuum Are - extinguishing Chamber High Voltage AC Vacuum Circuit Breaker

NINGBO TIANAN (GROUP) CO., LTD.



Overview

VT19-24indoor HV vacuum circuit breaker is used in three-phase AC electric system of 50HZ,24kV. It is used as control and protection department in the mining company ,power factory and substation. Because of its special advantages, it is also suitable for the site which frequently operation under rated current or multiple breaking short-circuit current.

The circuit breaker is identified by some national standards and international relative standards, such as GB1984,GB/T11022,DL/T403 and IEC62271, etc. It has reliable lockage, used as truck department or fixed installation department.



The structure of vacuum arc-extinguish room

Vacuum arc-extinguish room is the core parts of circuit breaker to bear,make and break current energy. It has sufficient arc-extinguish function and high operation duration.

  • Insulation enclosure (1) of arc-extinguish room is made up of high intensity alumina ceramics material, both ends shall be welded stainless steel cover (6) and it will be formed into sealed cavity.
  • Inner layer of arc-extinguish room is metal shied cover(5) which metal moist caused by arc can be compounded or condensed on the metal shied cover in short time during terminal making & breaking, insulation media intensity of inner arc-extinguish room will be recover. Meantime, shied cover can protect ceramics enclosure from hurt of metal splashing.
  • Retracted stainless steel accordion pipe (4) is the important part of arc-extinguish room that moving terminal (3) can move in the fully-closed arc-extinguish room. Sealing function and long duration of accordion pipe is one of the main factors which decided the mechanical duration of vacuum arc-extinguish room.
  • Terminal is the heart of vacuum arc-extinguish room, adopt chromium-copper, advanced smelt technology can ensure the breaking function and electric duration of vacuum circuit breaker, and decrease the operation over-voltage level.



The main parameter of 24KV circuit breaker



Rated voltage 24kV
Rated frequency 50Hz
Rated lighting impulse withstand voltage 125kV
Rated 1 min power frequency withstand voltage 65kV
Rated operation sequence O-0.3s-CO-180s-CO
Rated current (A) 630,1250 1250,1600,2000,2500
Rated short circuit breaking current (r.m.s, kA) 20/25 31.5
Rated short circuit making current (peak value, kA) 50/63 80
Rated short time withstand current/short circuit continuous time (kA/s) 20,25/4 31.5/4
Rated peak value withstand current (kA) 50/63 80
Breaking times of rated short circuit(times) 30
Mechanical duration (times0 20000
Weight (kg) Fixed type ≤250
Truck type ≤350
Name Unit Data
Distance of contact terminal mm 12±1
Over-travel 4±1
Three-phase opening & closing asynchronous ms ≤2
Tripping time of closing contact terminal ms ≤2
Closing & opening time Opening ms ≤50
Closing ≤70
Average opening speed(after opening 6mm) m/s 1.4±0.3
Average closing speed(after closing 6mm) 0.8±0.2
