Off - Load Tap Changer Power Distribution Transformer Oil Immersed 10kv

China Ningbo Tianan (Group) Co.,Ltd. certification
China Ningbo Tianan (Group) Co.,Ltd. certification
I'm Online Chat Now

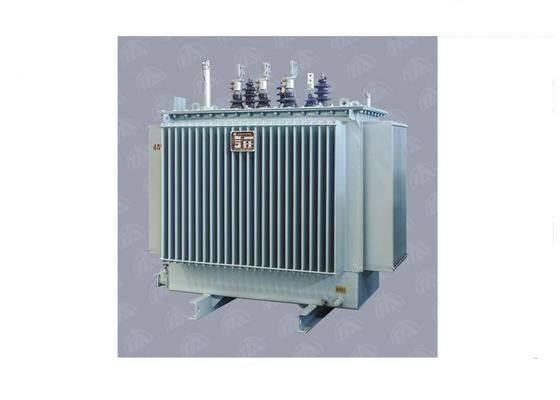

Off - Load Tap Changer Power Distribution Transformer Oil Immersed 10kv

Off - Load Tap Changer Power Distribution Transformer Oil Immersed 10kv
Off - Load Tap Changer Power Distribution Transformer Oil Immersed 10kv

Large Image :  Off - Load Tap Changer Power Distribution Transformer Oil Immersed 10kv

Product Details:
Place of Origin: China
Brand Name: Tianan Electric
Certification: CESI,ISO,IEEE,IEC
Model Number: S9,S10
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Pending
Packaging Details: Nude
Delivery Time: 60 days
Payment Terms: T/T, L/C, D/A, D/P
Supply Ability: 5000PCS
Detailed Product Description
Hight Voltage: 6/6.3/10kv Low Voltage: 0.4kv
Capacity: 30--2000kVA Oil: High-quality Mineral Oil
High Light:

power transmission transformer

,

oil type transformer

10kV Oil Immersed Off - Load Tap Changer Power Distribution Transformer



General:

11KV class transformers are widely used in power transmission and distribution stations, industry plants, Generation Set-up Unit (GSU). They have the characteristic of high efficiency, low loss and maintenance free.



Structural Features :

► Iron core
The iron core is made of cold rolled grain oriented silicon steel sheet. Laminations are cut to length on GEORG cut-to- length line with step-lap cut and automatic stacking functions. The multi-step lamination structure can reduce the loss and noise .The steel sheet in the core limbs and yokes are clamped together by glass-epoxy bonds.
► Winding
High quality enameled or paper covered copper is used as conductor, the winding was made as drum type, spiral type, improved spiral type, continuous type and interleaved type to ensure the insulation strength. Standard tapings are ±2*2.5%of the HV winding.

► Tank
The tank, cover and the conservator are
made by corrugated steel plate .For the small transformers, we use a deep tank and a cover, but for larger transformers, we manufacture bell type .The corrugated construction are a effective way for oil cooling.
► Insulation oil
The tanks are filled with high quality grade mineral oil as per IEC296 and it is PCB and PCT free. The oil is used to help cooling the transformer. It is also used provide part of the electrical insulation between internal live parts.
►Tap changer
Tap changers are used to regulate the output voltage of the transformers to required levels .We achieve this by changing the ratios of the transformer on the system by altering the number of turns in the HV winding .Tap changers can be on load (OLTC) or off load(OCTC).
►​ Assembly
The core and the windings assembled together from the active part of the transformer. The active body assembled with multi-windings and identical pressure dry method adopted, effectively improved the electrical strength and the ability to short circuit withstanding



Technical Data of Typical Products ;



Type Rating
KVA
On-load
loss
(w)
Load
loss
(w)
I
(%)
UK
(%)
Dimension (mm) Weight
(kg)
a b c
S9-M-50/11 50 170 870 2.0 4.0 1215 660 1170 430
S9-M-250/11 250 560 3050 1.2 4.0 1190 815 1370 1115
S9-M-400/11 400 800 4300 1.0 4.0 1515 770 1580 1380
S9-M-500/11 500 960 5050 1.0 4.0 1635 840 1610 1600
S9-M-1000/11 1000 1700 10300 0.7 4.5 1960 1095 1960 2860
S9-M-2500/11 2500 3300 23000 0.55 5.5 2230 2305 2445 5660
S10-M-30/10 30 110 600 1.8 4.0 870 645 1025 310
S10-M-50/10 50 140 870 1.7 4.0 1090 650 1080 395
S10-M-80/10 80 200 1250 1.6 4.0 1140 675 1110 490
S10-M-100/10 100 240 1500 1.5 4.0 1185 690 1130 560
S10-M-125/10 125 280 1800 1.4 4.0 1205 710 1180 670
S10-M-160/10 160 340 2200 1.3 4.0 1255 720 1200 780
S10-M-200/10 200 400 2600 1.2 4.0 1295 740 1215 875
S10-M-250/10 250 470 3050 1.1 4.0 1340 755 1260 1115
S10-M-315/10 315 560 3650 1.0 4.0 1400 770 1320 1280
S10-M-400/10 400 680 4300 0.9 4.0 1500 860 1400 1490
S10-M-500/10 500 810 5150 0.9 4.0 1575 895 1430 1740
S10-M-630/10 630 1020 6200 0.8 4.5 1660 930 1545 2110
S10-M-800/10 800 1190 7500 0.7 4.5 1830 1070 1590 2625
S10-M-1000/10 1000 1450 10300 0.6 4.5 1935 1175 1685 2860
S10-M-1250/10 1250 1650 12000 0.6 4.5 1960 1170 1730 3330
S10-M-1600/10 1600 2040 14500 0.5 4.5 2325 1220 2120 3765
S10-M-2000/10 2000 2140 17820 0.5 4.5 2395 1260 2225 4530
