110KV - 220KV on Load Tap Changer Power Transmission Transformer

China Ningbo Tianan (Group) Co.,Ltd. certification
China Ningbo Tianan (Group) Co.,Ltd. certification
I'm Online Chat Now

110KV - 220KV on Load Tap Changer Power Transmission Transformer

110KV - 220KV  on Load Tap Changer Power Transmission Transformer
110KV - 220KV  on Load Tap Changer Power Transmission Transformer 110KV - 220KV  on Load Tap Changer Power Transmission Transformer 110KV - 220KV  on Load Tap Changer Power Transmission Transformer

Large Image :  110KV - 220KV on Load Tap Changer Power Transmission Transformer

Product Details:
Place of Origin: CHINA
Brand Name: Tianan Electric
Certification: IEC ANSI IEEE
Model Number: SFZ63000/110KV
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: Pending
Packaging Details: Body in Bulk and Parts in Wooden Cases
Delivery Time: 45 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 5000sets per year
Detailed Product Description
Winding: 100% Cooper Capacity: 6300-63000kVA
Winding Type: Two-winding Transformer Tap Changer: On Load And Off Load
High Light:

oil type transformer

,

power transmission transformer

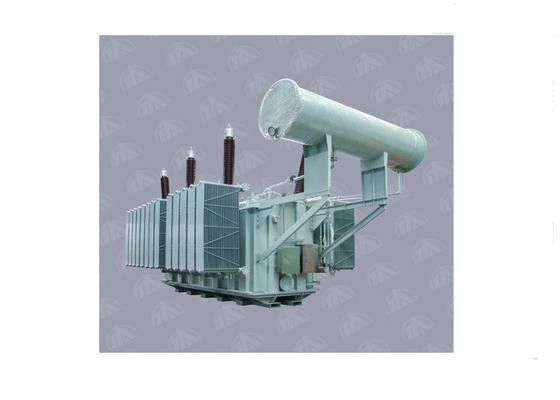

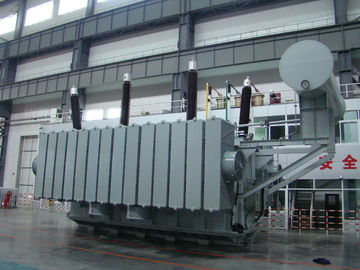

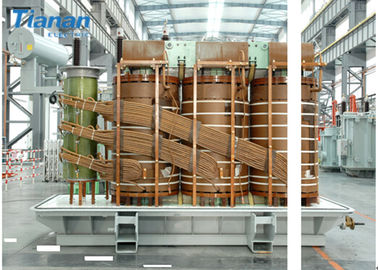

110KV - 220KV on Load Tap Changer Power Transmission Transformer​



Overview:

The 220kV transformer adopted the full folding plate tank structure of 110kV transformer, making its structure more rational, easier for site installation and inspection; combining our many-year design and manufacture experiences,the reliability and performance of the product have reached international advanced level.

Through continuous improvement and alteration, our products are with characteristics of low loss, low noise, low partial discharge, high shortcircuit withstand capacity, high impedance,and fully -enclosed structure.The series covers tw o-winding and three -Winding off-circuit tap changing power transformer, on- load tap changing transformer and tap-changing auto transformer.


S10 series 110kV double winding non-excitation tap-changing transformer

Type Voltage and tap range
Connection
No-load loss
(kW)
Load loss
(kW)
No-load current
(%)
Impendence
(%)
Dimension
LxWxH (mm)
HV LV
S(F)10-6300/110
110
115
121
132
±2
x2.5%
6.3
6.6
10.5
11

YNd11
8 34 0.65
10.5
4090 x 2980 x 4750
S(F)10-8000/110 9.5 42 0.65 4140 x 3020 x 4780
S(F)10-10000/110 11.2 48.5 0.64 4380 x 3080 x 4780
S(F)10-12500/110 12.1 59 0.55 4700 x 4200 x 5000
S(F)10-16000/110 16.0 73 0.5 3710 x 2880 x 4420
S(F)10-20000/110 18.5 86 0.5 5250 x 3937 x 4260
S(F)10-25000/110 21.3 98 0.5 5280 x 3980 x 4270
S(F)10-31500/110 24.2 120 0.47 5300 x 4060 x 4310
S(F)10-40000/110 29.3 139 0.47 5410 x 4150 x 4330
S(F)10-50000/110 36 180 0.5 5900 x 4380 x 6100
S(F)10-63000/110 40 217 0.5 6810 x 4520 x 5885
S(F)10-75000/110 48 246 0.5 5970 x 4600 x 6500
S(FP)10-75000/110 39.2 248 0.5 6420 x 4437 x 6356
S(FP)10-80000/110 51.9 273 0.5 6980 x 4390 x 6435
S(FP)10-90000/110 53.2 283 0.4 12440 x 5200 x 6700
S(FP)10-150000/110 15.75 79.2 420 0.4 9410 x 3450 x 6213
S(FP)10-240000/110 13.8 141 601 0.4 8500 x 5750 x 6400




Type
Voltage and tap range Connection No-load loss
(kW)
Load loss
(kW)
No-load current
(%)
Impendence
(%)
Dimension
L xW xH (mm)
HV LV
S(F)Z10-6300/110
110
115
121
132
±8
x
1.25%

6.3
6.6
10.5
11.

YNd11
8.5 35 0.55
10.5
4940 x 3710 x 4620
S(F)Z10-8000/110 10.5 43 0.55 5010 x 3770 x 4680
S(F)Z10-10000/110 12 50 0.55 5040 x 3810 x 4730
S(F)Z10-12500/110 14.5 59 0.55 5100 x 3870 x 4760
S(F)Z10-16000/110 16.4 70 0.5 5160 x 3900 x 4810
S(F)Z10-20000/110 18.9 86 0.5 5760 x 3780 x 4730
S(F)Z10-25000/110 22.6 101 0.5 5820 x 3840 x 4790
S(F)Z10-31500/110 26.4 117 0.45 6320 x 4035 x 5160
S(F)Z10-40000/110 32.6 142 0.4 6550 x 4670 x 5740
S(F)Z10-50000/110 34.6 179 0.4 6270 x 4560 x 5865
S(F)Z10-63000/110 39 217 0.4 6320 x 4610 x 5930
