12kv Vacuum Load Break Switch

12kv Vacuum Load Break Switch
12kv Vacuum Load Break Switch

Large Image :  12kv Vacuum Load Break Switch

Product Details:
Place of Origin: CHINA
Brand Name: TIANAN
Certification: ISO;CE
Model Number: FNl6A-12RD/200-31.5
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: Pending
Packaging Details: Nude
Delivery Time: 35 work days
Payment Terms: L/C, T/T, D/P, D/A
Supply Ability: 3000 Sets
Detailed Product Description
Maximum Rated Current Of Fuse: 200A Structure: Fuse And Load Switch Are Linked
No. Of Pole: Three Type: Manual Operation / Motor Operation
High Light:

12kv vacuum load break switch

,

HV vacuum load break switch

,

200A vacuum load break switch

12KV Indoor HV AC Vacuum Load Switch - Fuse Combination Apparatus



Overview

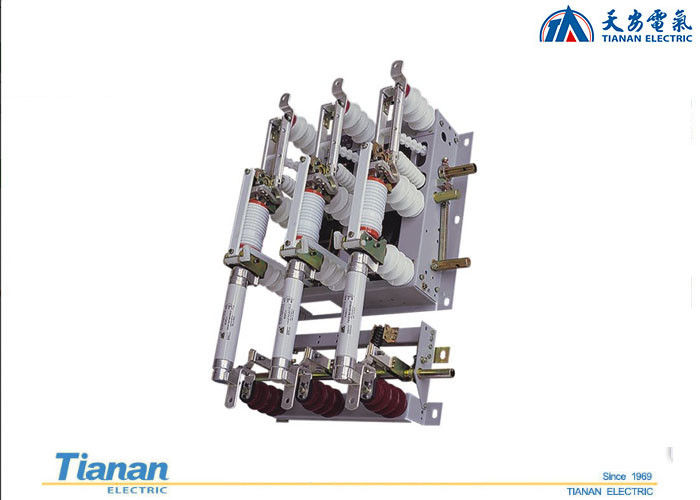

FN16A-12RD/200-31.5 Type combination units within FN16A-12 in combination with a high-voltage load switch current limiting fuse together the indoor high voltage switchgear, the upper end of the fuse is fixed to the lower bracket of the vacuum interrupter, the lower end is fixed to the seat by contacting the insulator, lower bracket grounding switch and fuse together. Grounding switch and disconnecting switch with mechanical interlock.It  can break load current,overload current and short circuit current.


Technical Parameters: Load switch - fuse combinations



No. Item Unit Parameters
1 Rated voltage kV 12
2 Rated frequency Hz 50
3 Maximum rated current fuse A 200
4 Rated transfer current A 3150
5 Melting tube trigger opening time of the switch ms 31 (0 + 5)
6 Rated short circuit breaking current (expected value) kA 31.5
7 Rated short-circuit current (prospective peak) kA 80
8 1 min power frequency withstand voltage (rms)
to ground, interphase, vacuum fracture / isolation fracture
kV 42/48
9 Lightning impulse withstand voltage (peak) to
ground, interphase, vacuum fracture / isolation fracture
kV 75/85
10 Fuse link striking output energy J 2 ~ 5
11 Net weight kg 75
12 Dimensions mm 720 x 490 x 4065
13 Package dimension mm

1115 x 900 x 520





Technical Parameters: combination of electrical fuses
Type Rated voltage (kV) Fuse rated current(kA) Rated breaking current(kA) Melt the rated current(A)
SDLAJ.XRNT
12
40 31.5,40,50 6.3,10,16,20,25,31.5,40
SFLAJ.XRNT 100 50, 63, 71, 80, 100
SKLAJ.XRNT 125 125
German company SBA 12 200 40 160, 200
