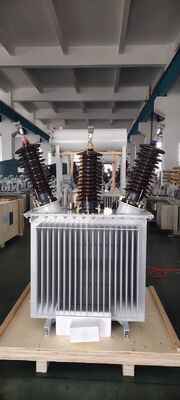

IEC60076 33kV/415V Dyn1 Oil Filled Distribution Power Transformer

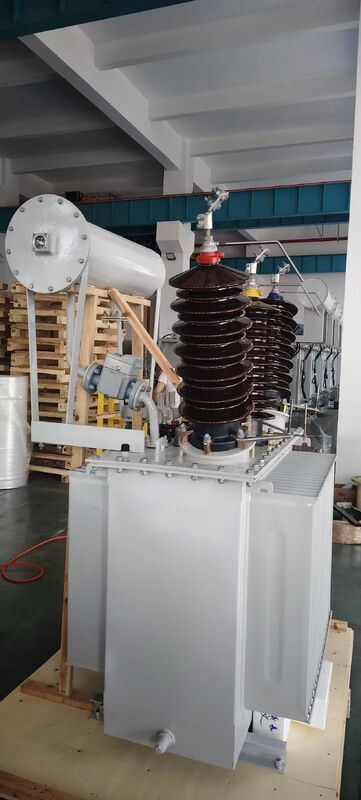

Large Image : IEC60076 33kV/415V Dyn1 Oil Filled Distribution Power Transformer

Product Details:

Place of Origin:	China
Brand Name:	Tianan Electric
Certification:	GB1984、GB/T11022、DL/T403 and IEC62271
Model Number:	VT19-40.5EP

Payment & Shipping Terms:

Minimum Order Quantity:	1 unit
Price:	Pending
Packaging Details:	Wooden Cases
Delivery Time:	35 work days/unit
Payment Terms:	L/C,T/T
Supply Ability:	2000PCS/year

Contact Now

Detailed Product Description

Rated Voltage:	33000/415V	Rated Frequency:	≤2000m
Ambient Temperature:	15℃	Oil Grade:	45#
Vector Group:	Dyn1	Standard:	IEC-60076
Insulation Level:	LI170AC70/LI30AC3	Color:	To Be Pending
Highlight:	40.5KV High Voltage Circuit Breaker , 2000m High Voltage Circuit Breaker , 630A High Voltage Circuit Breaker

Main Technical Parameter

This 33kV oil immersed distribution transformer is designed and produced strictly following IEC-60076 international criteria with rated voltage of 33000/415V and Dyn1 vector group. It adopts No.45 transformer oil as cooling & insulating medium, with specified reference ambient temperature at 15℃ and designed applicable altitude ≤2000m. Its insulation level is LI170AC70/LI30AC3 to guarantee outstanding dielectric performance against surge and power frequency overvoltage.

Product Features & Construction

Configured with high-strength porcelain high voltage bushing and conservator tank, the transformer allows convenient oil level observation and off-load voltage adjustment. Corrugated tank realizes efficient ONAN natural heat dissipation without extra cooling fans, while fully sealed tank structure effectively prevents transformer oil leakage and dust ingress. Customizable paint color is available as per clients’ requirement.

Application Range

This step-down power transformer converts 33kV medium voltage down to 415V low voltage, widely deployed for industrial workshops, residential power supply and photovoltaic grid-tie projects, serving Africa and Southeast Asian markets adopting 33kV local grid standard.

Q&A Section

Q1: What’s the production standard of this 33kV distribution transformer?

A: It is manufactured in accordance with IEC-60076 international standard.

Q2: Which transformer oil is filled inside this unit?

A: The transformer is filled with standard 45# grade transformer oil.

Q3: What is the vector group of this 33000/415V transformer?

A: Its vector group is Dyn1, the most common connection type for low-voltage distribution.

Q4: Can we customize the outer painting color of transformer tank?

A: Yes, tank color is pending confirmation and customizable as buyer’s demand.

Q5: What’s the defined ambient reference temperature for design?

A: The design reference ambient temperature is 15℃, max applicable installation altitude ≤2000m.
