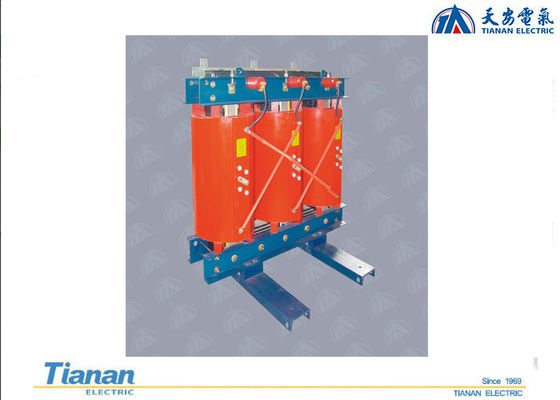

11~35kV Indoor Installation Cast Resin Dry Type Transformer with 20 Years Service Life

Large Image : 11~35kV Indoor Installation Cast Resin Dry Type Transformer with 20 Years Service Life

Product Details:

Place of Origin:	China
Brand Name:	Tianan Electric
Certification:	ISO9001-2000 ，UL
Model Number:	SCB11 SCB10

Payment & Shipping Terms:

Minimum Order Quantity:	1 unit
Price:	Pending
Packaging Details:	Nude
Delivery Time:	60 Days
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability:	12000 PCS

Contact Now

Detailed Product Description

Tapping Range:	2.5% Or Others	Altitude:	Up To 1, 000m Above Sea Level
Environment:	Indoor	Insulation:	Resin-cast
Frequency:	50Hz	Service Life:	20 Years
Highlight:	dry type electrical transformers , three phase dry type transformer

Electrical Cast Resin Dry Type Transformer 11~35kV Indoor Dry Type Transformer

SC(B)-10 Three Phase Resin Insulation Dry Type Power Transformer

NINGBO TIANAN (GROUP) CO., LTD.

Product Overview

Cast resin dry type transformers are safe, non-polluting, and flame-proof products that can be installed directly on load centers. These transformers offer numerous advantages including free maintenance, easy installation, low operation costs, reduced energy loss, and excellent humidity resistance. They can operate normally under 100% humidity conditions and can be put into service immediately without requiring drying procedures after periods of non-use.

Applications

SCB series dry type transformers serve as superior substitutes for traditional oil-filled transformers. They are specifically designed for critical applications including:

High-rise buildings and commercial centers
Theaters, hospitals, and laboratories
Museums and cultural institutions
Petroleum drilling platforms and marine vessels
Ports, stations, and airports
Petrochemical facilities
Underground railways, tunnels, and mining operations
Combination substations and other vital infrastructure

Product Features
