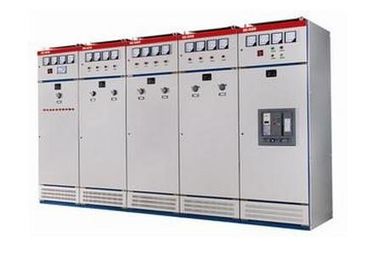

Low Voltage Power Distribution Switchgear GGD Electrical Control Cabinet

China Low Voltage Power Distribution Switchgear GGD Electrical Control Cabinet supplier
Low Voltage Power Distribution Switchgear GGD Electrical Control Cabinet supplier Low Voltage Power Distribution Switchgear GGD Electrical Control Cabinet supplier

Large Image :  Low Voltage Power Distribution Switchgear GGD Electrical Control Cabinet

Product Details:

Place of Origin: China
Brand Name: Tianan Electric
Certification: CCC, ISO9001
Model Number: GGD

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Price: Pending
Packaging Details: Wooden Case
Delivery Time: 35 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 5000PCS/YEAR
Contact Now
Detailed Product Description
Shell Material: Steel Plate Reted Frequency: 50Hz/60Hz
Room Design: H.V.Transformer And L.V.Room Installation: Fixed

Product Description
Low Voltage Power Distribution System GGD Switchgear Electrical Control Cabinet

Product Description
GGD-type low voltage fixed-mounted switchgear assembly is applicable to the power users, such as power plants, substations, industrial and mining enterprises etc. with AC 50Hz, rated operating voltage 380V, rated current up to 3150A power distribution system as a driving force, conversion of electrical energy for lighting and power distribution equipment as well as the purposes of distribution and control. The product has high breaking capacity. The rated short-time withstand current is up to 50KA, with the characteristics of flexible line scheme, convenient combination, strong practicality, novel structure and so on. The product is one of our assembly type fixed panel switchgears in China.

This product complies with the Standards GB7251 Low-voltage Switchgear Assembly and Control Equipment, IEC 60439 Low - voltage Switchgear Assembly and Control Equipment.

Features:
1. Metal-enclosed and separately arranged, with high protection Category
2. Enclosure with Front -Cabinet protection and back-cabinet protection, the Board can be arranged and fixed along with the wall to save the spaces
3. Protection Category of enclosure reaches to IP4X,
4. Elec.Line Cabinet with full spaces for mount and arrange in-coming and out-going lines for the convenience of Fixing, protecting and maintaining



Environmental Requirement
Normal Operation Conditions
1. Altitude : up to 2000m sea level at site.
2. Ambient temperature: -10°C ~ +40°C (temperature can be as low as -25°C during transportation and storage)
3. Relative humidity: daily relative humidity 95% on average; monthly relative humidity 90% on average
4. Seismic scale of earthquake 8
5. The switchgear is applicable to category II contaminated environment.

Special Operation Conditions
If the switchgear will be used in conditions that exceed the normal environmental conditions, users shall
negotiate with the manufacturer.

Application
The switchgear is mainly used in power plants, small- and mediumsized power generators, industrial and mining enterprises, and secondary substations of power system for power receiving, power transmission, and startup of large-sized high-voltage motor in order to implement control, protection, and monitor.



Packaging and Shipping:
Packing:
1. Wrapped with plastic film.
2. Fixed in a wooden case.
3. Wooden case on a pallet.
4. Iron shelf
5. Special packaging: According to customer's requirement

Delivery Details : 10-20 days according to order quantities







Low Voltage Power Distribution Switchgear GGD Electrical Control Cabinet
