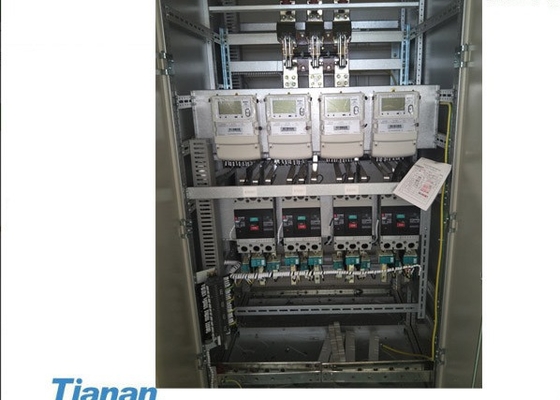

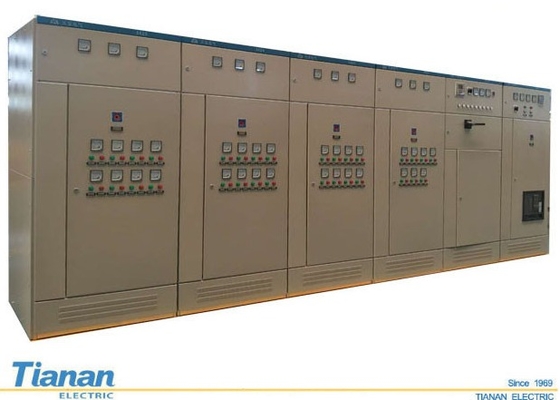

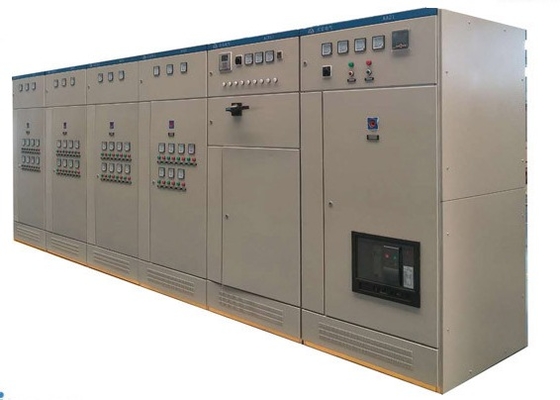

Low Voltage AC Switchgear GGD Cabinet / Electrical Control Panel

China Low Voltage AC Switchgear GGD Cabinet /  Electrical Control Panel supplier
Low Voltage AC Switchgear GGD Cabinet /  Electrical Control Panel supplier Low Voltage AC Switchgear GGD Cabinet /  Electrical Control Panel supplier Low Voltage AC Switchgear GGD Cabinet /  Electrical Control Panel supplier Low Voltage AC Switchgear GGD Cabinet /  Electrical Control Panel supplier

Large Image :  Low Voltage AC Switchgear GGD Cabinet / Electrical Control Panel

Product Details:

Place of Origin: CHINA
Brand Name: Tianan Electric
Certification: IEC61439-2,GB7251.12
Model Number: GGD

Payment & Shipping Terms:

Minimum Order Quantity: 1unit
Price: pending
Packaging Details: wooden case
Delivery Time: 45workdays
Payment Terms: L/C, T/T
Supply Ability: 5000pcs/year
Contact Now
Detailed Product Description
Shell Material: Steel Plate: Steel Plate Rated Short Circuit Breaking Current: 30KA
Rated Current: 630~1500A Rated Voltage: 380V

Low voltage switchgear GGD cabinet / Electrical control panel


Application:applicable to power distribution system of AC 50Hz, with rated operation voltage of 380V, rated operation current to 3150A , in power users like generators, transformer substation, mining enterprises,etc



Features:
1) Reasonable structure and layout
2) Easy to operate
3) Use and maintenance of low cost
Technical Parameter

NO. Description Unit Data
1 Rated voltage V 380
2 Rated current A 630~1500
3 Rated frequency Hz 50
4 Protection degree /

IP30



Operating Conditions:

a) Air temperature: Maximum temperature: +40°C; Minimum temperature:-15°C

b) Humidity: Monthly average humidity 95%; Daily average humidity 90% .

c) Altitude above sea level: Maximum installation altitude: 1000M.

d) Ambient air not apparently polluted by corrosive and flammable gas, vapor etc.

e) No frequent violent shake

Model     Rated short-time withstand current(KA)
Rated current(A) Rated peak withstand current(KA)

GGD1
A 1000
15

30
B 600(630)
C 400

GGD2
A 1500(1600)
30

63
B 1000
C /

GGD3
A 3150
50


105
