Epoxy Powder Polymerised At High Temperature IP54 Blokset Series LV Switchgear

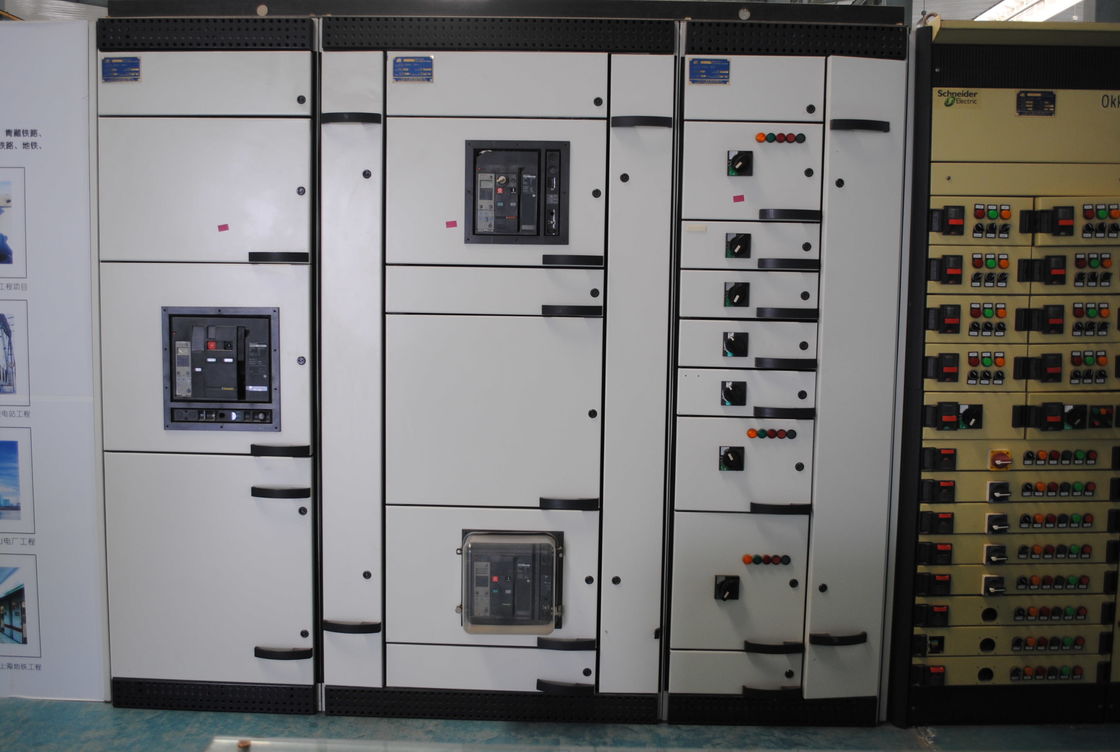

Large Image : Epoxy Powder Polymerised At High Temperature IP54 Blokset Series LV Switchgear

Product Details:

Place of Origin:	CHINA
Brand Name:	Tianan Electric
Certification:	VDE CCC ISO9001:2000 IEC62271:200
Model Number:	Blokset

Payment & Shipping Terms:

Minimum Order Quantity:	1unit
Price:	pending
Packaging Details:	Wooden case
Delivery Time:	45 work days
Payment Terms:	L/C, D/P, T/T,, D/A, Western Union
Supply Ability:	5000 PCS/Year

Contact Now

Detailed Product Description

Rated Insulation Voltage V AC:	1000	Type:	D/Dc/C/Mf/Mw/Ms
Environment:	Indoor	Protection Degree:	54
Forms:	Form1/Form2d/Form3d/Form4
Highlight:	low voltage metal clad switchgear , industrial electrical switchgear

A multi-function range
>> Type D: Distribution switchboards up to 6300 A
>> Type DC: Power factor correction column
>> Type Mf: Fixed-type motor-control centres up to 6300 A
>> Type Mw: Withdrawable-type motor-control centres up to 6300 A
>> Type Ms: Variable-speed drives and starters column
>> Type C: Cubicles up to 630 A.

Electrical and Mechanical Characteristics

Application	D	Dc	C
	132Type	132type	134Type
Rated voltage
Rated insulation voltage (V AC)	1000V
Rated operating voltage(V AC)	690V
Rated impulse withstand voltage	12KV
Overvoltage category	IV
pollution degree	3
Frequency	Up to 400HZ
Rated Current


Main busbars	Single busbars	Double busbars
Rated current A	Up to 4000A	Up to 6300A
Rated peak withstand current KA	63/105/187KA	220KA
Rated short time current KA rms/1s	30/50/85	100


Distribution busbars
Rated current	Up to 3200			630
Rated peak withstand current KA	63/105/187			40/53
Rated short time current KA rms/1s	30/50/85			20/25

Application	Mf	Mw	Ms
	132Type	132type	134Type
Rated voltage
Rated insulation voltage (V AC)	1000V
Rated operating voltage(V AC)	690V
Rated impulse withstand voltage	12KV
Overvoltage category	IV
pollution degree	3
Frequency	Up to 400HZ
Rated Current


Main busbars	Single busbars	Double busbars
Rated current A	Up to 4000A	Up to 6300A
Rated peak withstand current KA	63/105/187KA	220KA
Rated short time current KA rms/1s	30/50/85	100

Distribution busbars
Rated current	Up to 3200	1000A		Up to 3200
Rated peak withstand current KA	63/105/187	187		63/105/187
Rated short time current KA rms/1s	30/50/85	85		30/50/85
