Indoor 40 . 5 KV High Voltage Switchgear Cubicle For Power Distribution

Good quality Mobile Transformer Substation for sales
Good quality Mobile Transformer Substation for sales
I'm Online Chat Now

Indoor 40 . 5 KV High Voltage Switchgear Cubicle For Power Distribution

China Indoor 40 . 5 KV High Voltage Switchgear Cubicle For Power Distribution supplier
Indoor 40 . 5 KV High Voltage Switchgear Cubicle For Power Distribution supplier Indoor 40 . 5 KV High Voltage Switchgear Cubicle For Power Distribution supplier Indoor 40 . 5 KV High Voltage Switchgear Cubicle For Power Distribution supplier Indoor 40 . 5 KV High Voltage Switchgear Cubicle For Power Distribution supplier

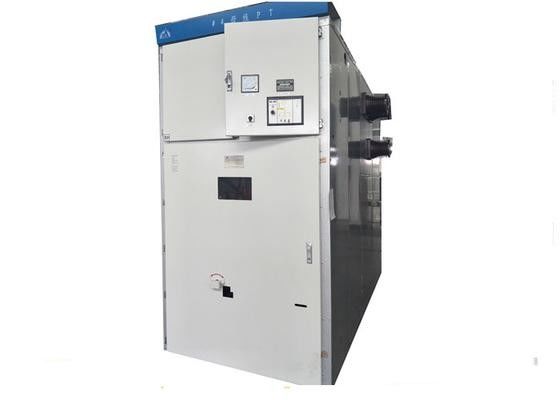

Large Image :  Indoor 40 . 5 KV High Voltage Switchgear Cubicle For Power Distribution

Product Details:

Place of Origin: CHINA
Brand Name: Tianan Electric
Certification: ISO9001:2000 IEC62271:200 CCC VDE
Model Number: KYN61-40.5

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Pending
Packaging Details: Wooden Case
Delivery Time: 45 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 5000sets per year
Contact Now
Detailed Product Description
Rated Current: 630A Altitude: Up To 1 000m Above Sea Level
Frequency: 50( 60)HZ Rated Voltage: 40.5KV
Protection Degree: IP4X Application: Power Transmission &distribution

Indoor 40 . 5 KV High Voltage Switchgear Cubicle For Power Distribution



Product description:

KYT1 (KYN61)-40.5 Metal-clad withdrawable AC Switchgear is a three-phase AC 50Hz, indoor whole set distribution unit with rated voltage 40.5kV.It is used to accept and distribute electric energy in power plant ,substation and industrial and mining enterprises,which can control, protect and supervise circuits, and be used in the place need to  be operated frequently.




Service condition:

Ambient air temperature  -15°C~+40°C.
Altitude ≤1000m.
Relative humidity   Daily average≤95%,monthly  averange≤90%.
Earthquake intensity  ≤magnitude 8.
Applicable in the places without corrosive and flammable gas and water vapor.
Used in place without frequently intense vibrant


Note: Customized products are available.

Main technical specification:

Parameters Unit Specification
Rated Voltage KV 40.5
Lighting impact withstand voltage KV 185/215
Rated Current A 630~2000
Rated short circuit current KA 31.5,40
Rated Short Circuit Closing Current KA 63,80
Rated Dynamic Stable Current KA 63,80
Protection Grade   IP4X



Packaging: packed in international standard wooden cases or as per customer request.
