Armor Type AC Metal - Enclosed Switchgear / Power Distribution Equipment

China Ningbo Tianan (Group) Co.,Ltd. certification
China Ningbo Tianan (Group) Co.,Ltd. certification
I'm Online Chat Now

Armor Type AC Metal - Enclosed Switchgear / Power Distribution Equipment

Armor Type AC Metal - Enclosed Switchgear /  Power Distribution Equipment
Armor Type AC Metal - Enclosed Switchgear /  Power Distribution Equipment Armor Type AC Metal - Enclosed Switchgear /  Power Distribution Equipment

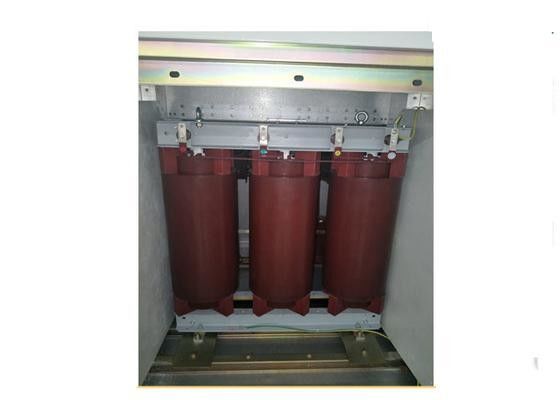

Large Image :  Armor Type AC Metal - Enclosed Switchgear / Power Distribution Equipment

Product Details:
Place of Origin: CHINA
Brand Name: Tianan Electric
Certification: ISO9001:2000 IEC62271:200 CCC VDE
Model Number: KYN61-40.5
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: Pending
Packaging Details: Wooden Case
Delivery Time: 45work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 2000pcs/per year
Detailed Product Description
Rated Current: 630A/ 1250A/ 2000A Altitude: Less Than 1000m
Rated Voltage: 35KV Protection Degree: IP4X
Packing: Carton With Bubble
High Light:

gas insulated switchgear

,

high voltage electrical switchgear

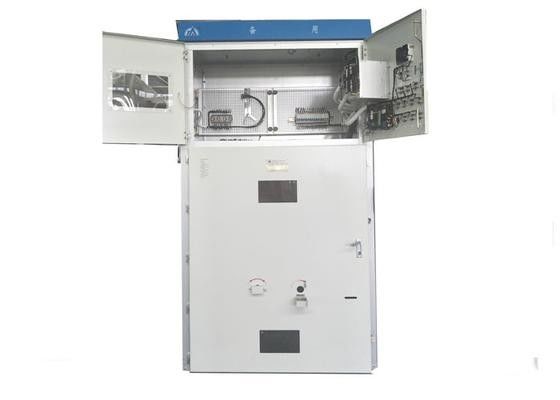

Armor Type AC Metal - Enclosed Switchgear / Power Distribution Equipment​

Overview:

KYN61-40.5 switchgear is three phase AC 50 Hz,rated voltage of 40.5 KV indoor power distribution equipment.As power plants ,substations and industrial distruction of electric energy only ,and has a circuit implementation of control,protection and monitoring function .

Features:

Switchgear according GB3906 and IEC62271-200 standards and design,And can be removed from the cabinet as a whole unit (trolley )components .Cabinet structure are made of aluminum deposited zine plate or galvanized sheet assembled with both connection ,separate circuit breaker switchgear roon ,bus room ,cable room and instrument room,All metal components are grounded ,each compartment of the main circuit system have separate pressure release channel in the cable compartment can be set 200*200mm ground copper bars.



Service condition:

a. Ambient air temperature: -15°C~+40°C.
b. Altitude: ≤1000m.
c. Relative humidity : Daily average≤95%,monthly  averange≤90%.
d. Earthquake intensity: ≤magnitude 8.
e. Applicable in the places without corrosive and flammable gas and water vapor.
f. Used in place without frequently intense vibrant.
Note: Customized products are available.

Main technical specification:

Items Unit Parameters
Rated Voltage kV 40.5
Rated Frequency Hz 50
Rated Current A 1250,1600,2000
Rated Short-circuit Breaking Current kA 25,31.5
Rated Making Current (Peak) kA 63,80
4s Thermal Stability Current kA 25,31.5
Rated Dynamic Current (Peak) kA 63,80
Rated Insulation Level 1min Power Frequency Withstand Voltage (r.m.s)(Between Phases, Phase to Earth) kV 95
Lightning Impulse Withstand Voltage (Peak) kV 185
1min Power Frequency Voltage Across the open gap (r.m.s) kV 115
Enclosure Protection Class

Enclosure IP4X;

Between Compartments IP2X


Enclosure Dimension (Width*Depth*Height) mm 1400*2800*2600
Type of Circuit Breaker

Vacuum Circuit Breaker:ZN85-40.5;

VT19-40.5
SF6 Circuit Breaker: FP(ALSTOM);

SF(Schneider)
