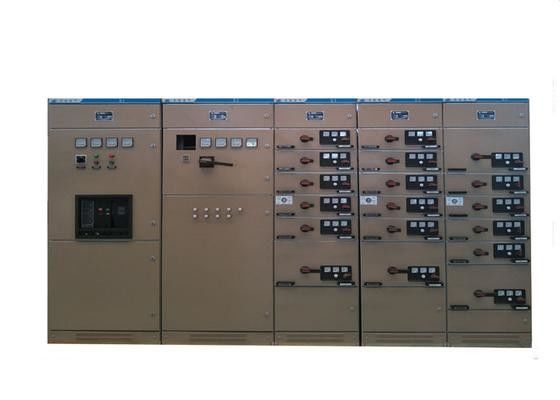

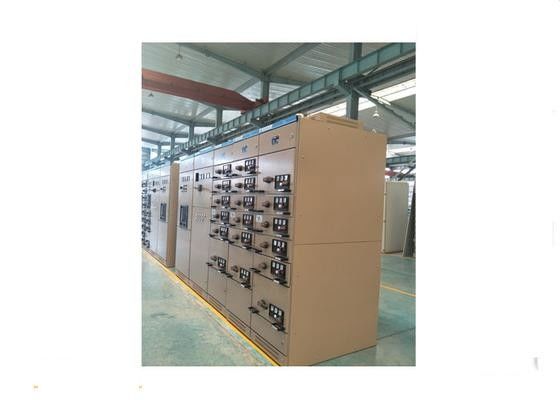

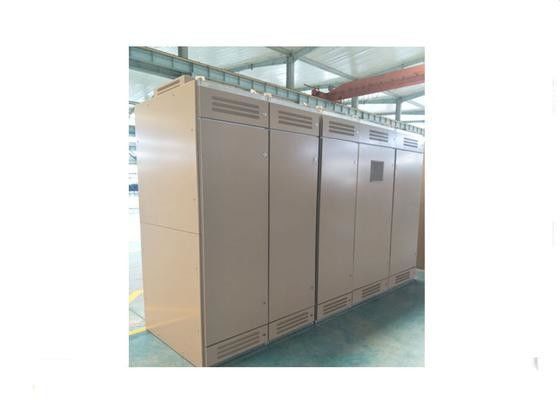

660v Drawable Low Voltage Switchboard For Electrical Switch Power Distribution

China Ningbo Tianan (Group) Co.,Ltd. certification
China Ningbo Tianan (Group) Co.,Ltd. certification
I'm Online Chat Now

660v Drawable Low Voltage Switchboard For Electrical Switch Power Distribution

660v Drawable Low Voltage Switchboard For Electrical Switch Power Distribution
660v Drawable Low Voltage Switchboard For Electrical Switch Power Distribution 660v Drawable Low Voltage Switchboard For Electrical Switch Power Distribution 660v Drawable Low Voltage Switchboard For Electrical Switch Power Distribution

Large Image :  660v Drawable Low Voltage Switchboard For Electrical Switch Power Distribution

Product Details:
Place of Origin: CHINA
Brand Name: Tianan Electric
Certification: IEC GB CCC
Model Number: GCT
Payment & Shipping Terms:
Minimum Order Quantity: 1unit
Price: Pending
Packaging Details: Nude
Delivery Time: 45work days
Payment Terms: L/C, T/T, D/P, D/A, Western Union, MoneyGram
Supply Ability: 5000sets per year
Detailed Product Description
Rated Insulation Voltage: 660V Rated Operating Voltage: 660V,1000V
Application Range: Chemical Protection Degree: IP45
High Light:

low voltage metal clad switchgear

,

industrial electrical switchgear

Electrical Switch Power Distribution Low Voltage Drawable Switchgear

Overview

GCT Series Low Voltage Drawable Switchgear, a developed product of our company by absorbing the advanced technology of the same type of products in domestic and abroad and improving them, is a newly one which technology has reached to an international leading rank in the world in the 1990s.

Parameters



Rated insulation voltage 660V
Rated operating voltage < =660V
Max. operating current of main busbar 4000A (IP30)
Max. operating current of distribution busbar (vertical busbar) 1000A
Horizontal busbar Short time withstand current 50kA (rms. 1s)
Reinforce type 80kA (rms. 1s)
Horizontal busbar Peak short time withstand current 105kA (peak)
Reinforce type 176kA (peak)
Vertical busbar Short time withstand current 50kA (rms. )105kA(peak)
Peak withstand current 50kA (rms. )105kA(peak)
Protection degree IP30 -IP45
