Ggd Series Low Voltage Switchgear , Indoor Power Distribution Panel

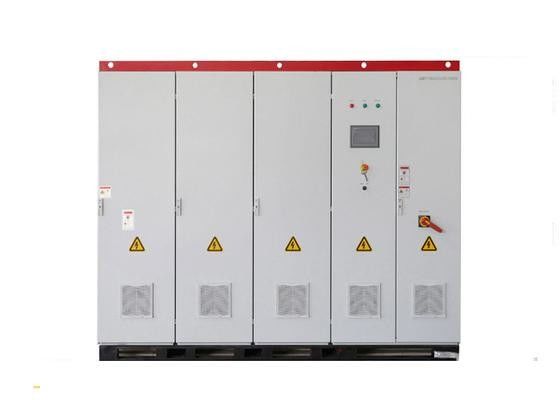

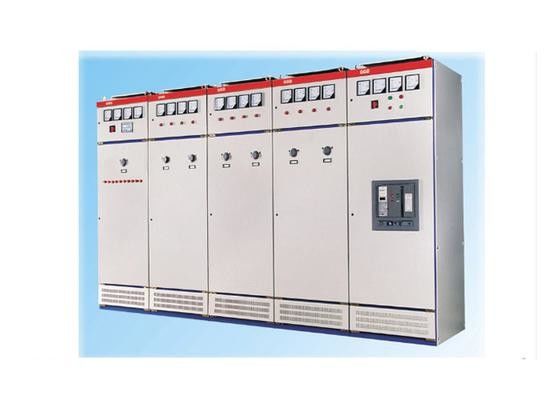

Large Image : Ggd Series Low Voltage Switchgear , Indoor Power Distribution Panel

Product Details:

Place of Origin:	China
Brand Name:	Tianan Electric
Certification:	CCC IEC
Model Number:	GGD

Payment & Shipping Terms:

Minimum Order Quantity:	1set
Price:	Pending
Packaging Details:	Wooden case
Delivery Time:	45work days
Payment Terms:	L/C, T/T, D/A, D/P, Western Union, MoneyGram
Supply Ability:	2000 sets per year

Contact Now

Detailed Product Description

Rated Voltage:

380V/400V

Altitude:

<2000m (At Site)

Breaking Capacity:

15KA/30KA/50KA

AC Frequncy:

Highlight:

low voltage metal clad switchgear

industrial electrical switchgear

GGD Series Indoor Low VoltageSwitchgear , Power Distribution Switch Panel

Overview
Low-voltage switchgear (hereinafter referred to as the device) for AC 50Hz, rated working voltage of 400V, rated current of 3150A and below the low-voltage power grid for power generation, transmission, power distribution system as power lighting, power conversion, Protection and control occasions. The device complies with the requirements of GB7251.1 and IEC60439.

Item	Units	Data
Rated voltage	V	400/380
Rated insulation voltage	V	1000
Rated frequency	Hz	50
Horizontal busbar rated current	A	5500
Vertical busbar rated current	A	2000
Horizontal busbar rated short-time current	kA/s	100
Horizontal busbar rated peak withstand current	kA	220
Vertical busbar rated short-time current	kA/s	85
Vertical busbar rated peak withstand current	kA	187
Rated impulse voltage	kV	12
Overvoltage category		IV
Degree of pollution		3
Degree of protection		IP31/42/54
Height	mm	2200
Width	mm	600/800/1000/1200
Depth	mm	600/800/1000

Ambient temperature:
Maximum	+40℃
Maximum 24 hour average	+35℃
Minimum (according to minus 15 indoor classes)	-15℃
Ambient humidity:
Daily average relative humidity	Less than 95%
Monthly average relative humidity	Less than 90%
Less than 90%	Less than 1000m
Earthquake intensity	ess than 8 degree
Height above sea level	Less than 2000m
