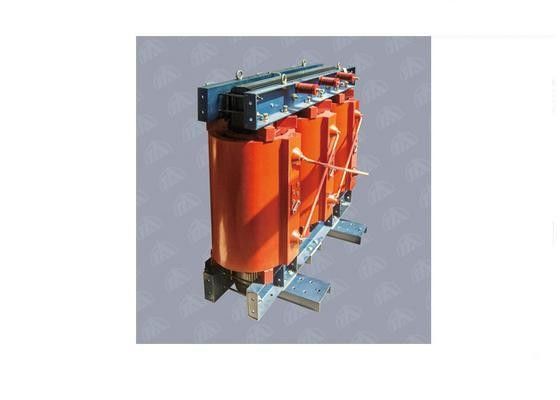

Resin Casting Dry Type Electrical Transformers 6 - 35 Kv Natural Air Cooling

China Ningbo Tianan (Group) Co.,Ltd. certification
China Ningbo Tianan (Group) Co.,Ltd. certification
I'm Online Chat Now

Resin Casting Dry Type Electrical Transformers 6 - 35 Kv Natural Air Cooling

Resin Casting Dry Type Electrical Transformers 6 - 35 Kv Natural Air Cooling
Resin Casting Dry Type Electrical Transformers 6 - 35 Kv Natural Air Cooling Resin Casting Dry Type Electrical Transformers 6 - 35 Kv Natural Air Cooling

Large Image :  Resin Casting Dry Type Electrical Transformers 6 - 35 Kv Natural Air Cooling

Product Details:
Place of Origin: CHINA
Brand Name: TIANAN Electric
Certification: ISO9001-2000, ISO9001,CESI,CTQC
Model Number: SCB10、SCB11
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: Pending
Packaging Details: Wooden cases
Delivery Time: 60 work days
Payment Terms: T/T, L/C, D/A, D/P
Supply Ability: 10000sets per year
Detailed Product Description
Production Capacity: 10000 PCS/Year Transport Package: Export Standard Shape Of Core: Ring
Cooling Way: Natural Air Cooling AN HV,LV Coils: Copper Conductor
Insulation Material: Epoxy Resin &Glass Fiber Ccompound Insulation Material Voltage Gade: 6~35KV
High Light:

dry type distribution transformer

,

three phase dry type transformer

6 ~ 35 KV / 30 ~ 2500 KVA Resin Casting Dry Type Distribution Transformer ​

General:

As the professional power transformer manufacturer, TIANAN Electric design and manufacture various types of dry-type power transformer with features of low noise, low loss and low partial discharge,excellent structure, superior materials, scientific design, strict production technology and advanced testing method.



Products Details:
Adopting advanced technology and international firstclass manufacturing equipment, sC-series resin casting dry-type transformer chooses super quality raw materials, with scientific composition, strictly controlled process and higher inspection standards, so it owns the following advantages:



► Both HV and LV coils are copper conductor, glass fiber strengthened. Drying and casting epoxy resin under high vacuum statue, after solidifying, it becomes a firm cylinder,with high mechanical strength, strong ability to resist shortcircuit. It is of less partial electric release, high reliability, and long service life.
► Flameproof, explosion resistant, no pollution to environ-ment. Adopting imported epoxy resin and glass fiber com-pound insulation materials, and certain percentage siliconpowder in epoxy resin, heat conduction co-efficient andflame-proof ability is greatly improved than old-type epoxyresin with glass fiber materials. This resin will not producetoxin and harmful gas under high heat.
► The coils could not absorb moist. The core clamp iscoated with special anti-corrosive material. It can work under severe conditions. It is not necessary to do a moist-release-treatment on interval running.
►Short circuit resistant, high lightning impulse level.
► Good heat dissipating because of thin resin coated onoutside of the coils, and normally adopting natural air cooling(AN). Any protection level transformer could be fitted with fancooling system (AF) to improve short time overload abilityand ensure safety running.
► Low power loss, low noise, good electric saving, econo-mical running, and free of maintenance.
► Small volume, light-weight, small occupied area, lowinstallation costs, and it is not necessary to build oil releasepool, fire proof and fire fighting facilities, and ready power resources, etc.
► Without any risk of fire disaster, explosion, it could also be installed separately around loading center, near electric using point, so to decrease wiring costs and save expensive low voltage costs.



 Manufacturing equipment:

Resin Casting Dry Type Electrical Transformers 6 - 35 Kv Natural Air Cooling 0
