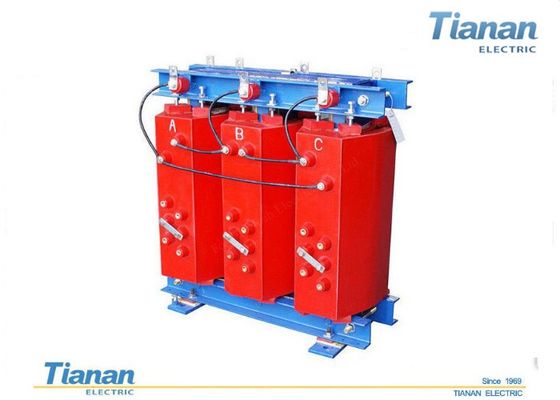

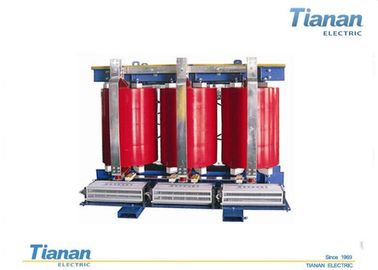

Scb 10kv Three Phase Cast Resin Dry Type Distribution Transformer Indoor Type

Scb 10kv Three Phase Cast Resin Dry Type Distribution Transformer Indoor Type
Scb 10kv Three Phase Cast Resin Dry Type Distribution Transformer Indoor Type Scb 10kv Three Phase Cast Resin Dry Type Distribution Transformer Indoor Type

Large Image :  Scb 10kv Three Phase Cast Resin Dry Type Distribution Transformer Indoor Type

Product Details:
Place of Origin: NIngbo,China
Brand Name: Tianan Electric
Certification: IEC,ISO,CESI,CTQC,CESI
Model Number: SCB10
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: Pending
Packaging Details: Nude /wooden cases
Delivery Time: 35days
Payment Terms: L/C, T/T, D/P, D/A
Supply Ability: 2000 sets per year
Contact Now
Detailed Product Description
Service Condition: Indoor Type Altitude: Up To 1000 M Above The Sea Level
Rated Voltage: 6.6kv, 10kv Phase No.: 3
High Light:

three phase dry type transformer

,

dry type electrical transformers

6.6 kV SCB Three Phase Cast Resin Dry Type Distribution Transformer

Product Description
SC(B)10 series three phase resin-cast dry-type distribution transformer are in conformity with standard of IEC76,with features of low loss, compact and light weight, low noise level,clamp-proof,anti-fouling,high mechanical strength, flame resisting, strong overload ability and low partial discharge quality,they are application to power transmission and distribution system,hotel,restaurant,commercial
building,stadiums,chemical plants,stations,aiports,offshore drilling platforms,especially to heavy load centers and places with special fire protection requirements

Technical Data
Type Voltage combination Vector group Insulation level Loss(W) Imp voltage
%		 No load current Noise
(db)A		 Dimension
(L*W*H)
mm		 Weight
(kg)
Primary Tapping range Seco-ndary No Load loss Full
load loss
SC(B)10-30/10 6
6.3
6.6
10
10.5
11
13.2
17.5
20
24
33
35
40.5		 ±2x2.5% 0.4 or other Yyn0 or Dyn11 LI75AC35
LIOAC3		 190 700 4.0 2.2 43 680*400*686 300
SC(B)10-50/10 270 990 2.0 43 690*400*686 360
SC(B)10-80/10 360 1370 1.8 43 730*450*796 500
SC(B)10-100/10 400 1570 1.8 44 730*500*816 600
SC(B)10-125/10 470 1840 1.6 44 780*600*950 700
SC(B)10-160/10 540 2120 1.4 44 950*650*1124 850
SC(B)10-200/10 620 2520 1.4 45 990*650*1164 950
SC(B)10-250/10 720 2750 1.4 45 1020*650*1207 1100
SC(B)10-315/10 880 3460 1.2 47 1050*750*1320 1250
SC(B)10-400/10 970 3980 1.2 48 1100*800*1450 1550
SC(B)10-500/10 1160 4880 1.2 48 1140*800*1430 1850
SC(B)10-630/10 1340 5870 1.0 50 1250*800*1500 1900
SC(B)10-800/10 1520 6950 6.0 1.0 52 1330*800*1540 2200
SC(B)10-1000/10 1760 8120 0.8 54 1400*960*1640 2750
SC(B)10-1250/10 2090 9690 0.8 54 1450*960*1690 3300
SC(B)10-1600/10 2450 11730 0.8 56 1560*960*1930 4000
SC(B)10-2000/10 3320 14450 0.6 57 1680*960*1930 4800
SC(B)10-2500/10 4000 17170 0.6 57 1720*1010*1950 5500



OUR PAKAGE:
Long time shipment & Seaworthy wooden box
Wooden package optional:
1, choose one unit/ wooden box
2, choose 2unit/ wooden box to save cost

OUR SERVICE:
1, Quick response in before sales period help you got order
2, Excellent service in production time let you know each step we made
3, Reliable quality solve you aftersale headache
4, Long period quality waranty ensure you can buy without hesitate
