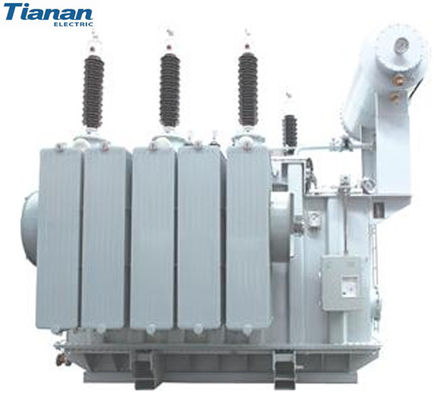

35kV Oil Immersed Power Transformer with Toroidal Coil Structure and Compact Size for Wind Power Step-up

Large Image : 35kV Oil Immersed Power Transformer with Toroidal Coil Structure and Compact Size for Wind Power Step-up

Product Details:

Place of Origin:	CHINA
Brand Name:	Tianan Electric
Certification:	ISO9001-2000, ISO9001, CCC
Model Number:	ZGS-Z.F-/11

Payment & Shipping Terms:

Minimum Order Quantity:	1set
Price:	Pending
Packaging Details:	Nude
Delivery Time:	60work days
Payment Terms:	L/C,T/T,D/P,D/A,Western Union,MoneyGram
Supply Ability:	2000set per year

Contact Now

Detailed Product Description

Altitude:

≤3000m

Contamination Grade:

Coil Structure:

Toroidal

Rated Voltage:

10kV-35kV

Highlight:

35kv Compact Transformer Substation

Toroidal coil structure Transformer Substation

CCC Compact Transformer Substation

35kV Compact Transformer Substation with Toroidal Coil Structure

Wind Electric Power Step-up Transformer Combined Substation

The ZGS-Z.F-/11 series combined transformer substation for wind power generation is designed for 10kV-35kV terminal power supply systems, serving as a comprehensive substation with integrated power distribution, measurement, control, and protection capabilities.

Comprehensive System Design

This substation incorporates high-quality load switches, backup protective fuses, and plug fuses on the high voltage side, along with control equipment, power distribution systems, lighting, and maintenance facilities on the low voltage side. The insulation and arc extinguishing medium utilizes transformer oil for optimal performance.

Key Advantages

Compact size and lightweight design
Low noise and energy loss operation
Enhanced anti-theft security features
Strong overload capacity performance
Comprehensive full-range fuse protection
Simplified maintenance requirements

Standard Operating Conditions

Maximum altitude: 2000 meters
Ambient temperature range: -40°C to +45°C
Relative humidity: Daily average ≤95%, Monthly average ≤90%
Installation: Indoor environments only
Service environment: Sites free from fire/explosion hazards, severe contamination, chemical corrosion, and excessive vibration

For applications exceeding these standard conditions, please consult with our technical team for customized solutions.

Technical Specifications

Parameter	Specification
System Voltage	35kV
Highest Work Voltage (HV Side)	40.5kV
Rated Voltage (HV Side)	38.5kV, 36.75kV, 35kV
Rated Voltage (LV Side)	0.69kV, 0.66kV
Rated Capacity	900 kVA to 3350 kVA
HV Tapping Range	±5% or ±2×2.5%
Connection Group	Dyn11 or Yyn0
