Customizable AC690V and AC1000V Rated Metal Enclosed LV Switchgear

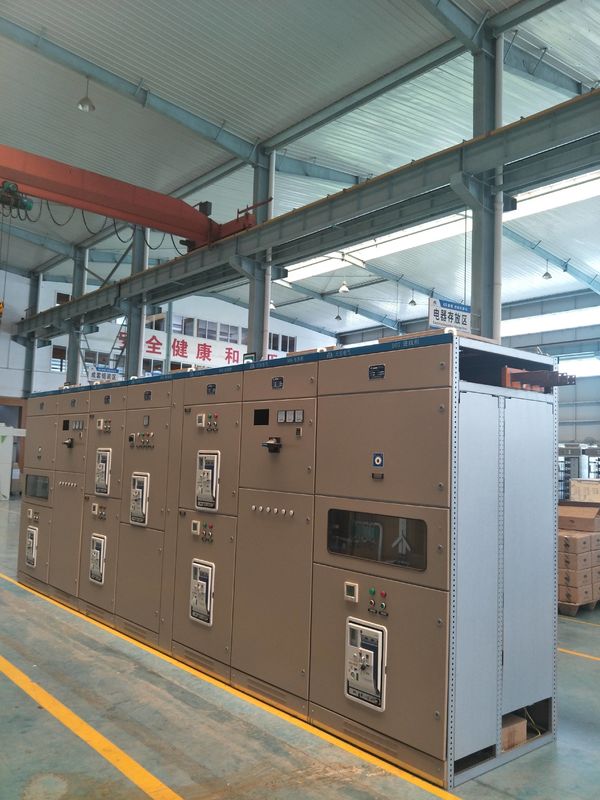

Large Image : Customizable AC690V and AC1000V Rated Metal Enclosed LV Switchgear

Product Details:

Place of Origin:	CHINA
Brand Name:	TIANAN
Certification:	IEC&GB
Model Number:	GCK

Payment & Shipping Terms:

Minimum Order Quantity:	1 SET
Price:	To be confirmed
Packaging Details:	WOODEN CASE
Delivery Time:	30 DATS/SET
Payment Terms:	FOB,EXW,CIF and so on
Supply Ability:	500 PER YEAR

Contact Now

Detailed Product Description

Frame Structure:	Metal Enclosed	Color:	As Required
Rated Current Of Horizontal Busbar:	≤5000 A	Rated Current Of Vertical Busbar:	≤1600 A
Installation Of Vertical Plane Slope:	＜5°	Rated Insulation Voltage:	AC690V AC1000V
Rated Operational Voltage:	AC380V AC400V AC690V	Humidity:	≤90% At 20℃
Highlight:	Customizable Metal Enclosed LV Switchgear , AC690V LV Switchgear , Customizable LV Switchgear

Product Description:

GCK low-voltage withdrawable switchgear (hereinafter referred to as switchgear) is a new product developed by our company by digesting and absorbing advanced technology from similar international products. Suitable for three-phase AC 50Hz, 60Hz, rated voltage 660V, rated current 4000A and below three-phase four wire and three-phase five wire power systems. Suitable for power plants, substations, industrial and mining enterprises, buildings, hotels, airports, docks and other power users and power systems to receive and distribute electrical energy.

Features:

Product Name: Low Voltage Switchgear
Rated insulation voltage: AC690V AC1000V
Installation Gradient: < 5ºC.
Installation of vertical plane slope: ＜5°
Rated operational voltage: AC380V AC400V AC690V
Rated current of vertical busbar: ≤1600 A
Product Type: Low Voltage Power Distribution Unit
Features: Low Voltage Switching Devices, Low Voltage Power Distribution Unit

Technical Parameters:

Packing:	Wooden Case
Rated operational voltage:	AC380V AC400V AC690V
Installation of vertical plane slope:	<5°
Rated insulation voltage:	AC690V AC1000V
Color:	As Required
Rated current of vertical busbar:	≤1600 A
Rated current of horizontal busbar:	≤5000 A
Frame Structure:	Metal Enclosed
Humidity:	≤90% At 20℃
Installation Gradient:	< 5ºC

Structure diagram:

Customizable AC690V and AC1000V Rated Metal Enclosed LV Switchgear 0
