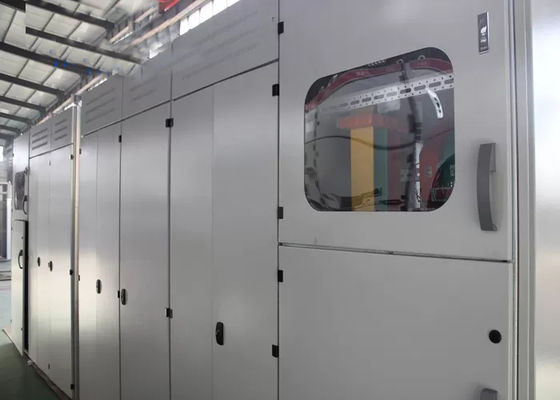

105 Rated Peak Withstand Current Low Voltage Electrical Panels for Ambient Temperature -5-40C

Product Description:

The Low Voltage Switchgear is a crucial component of Low Voltage Substation Equipment, Low Voltage Power Distribution Unit, and Low Voltage Electrical Panels. It is designed to provide reliable and efficient power distribution in various industrial and commercial applications.

With a rated peak withstand current of 17, 40, 105, or 176 KA/1s, this Low Voltage Switchgear ensures the safe operation of electrical systems, protecting them from overloads and short circuits. The rated insulation voltage of 690 or 800 V further enhances the safety and reliability of the system.

Complying with international standards such as IEC61439-2 and GB, this Low Voltage Switchgear guarantees high-quality performance and adherence to industry regulations. It offers different protection degrees, including IP 30, IP40, and IP42, to suit various environmental conditions and installation requirements.

Installation of the Low Voltage Switchgear is made easy with an installation inclination of less than 5 degrees, providing flexibility and convenience in setting up the equipment. Whether used in industrial facilities, commercial buildings, or utility substations, this switchgear ensures efficient power distribution and protection.

Features:

• Product Name: Low Voltage Switchgear
• Rated voltage of main circuit: AC 380(400),690 V
• Installation inclination: <5 Degrees
• Ambient temperature: -5~40℃
• Rated voltage of auxiliary circuit: AC 220,380(400) V; DC 110, 220V
• Standards: IEC61439-2, GB

Technical Parameters:

Applications:

TIANAN GCS Low Voltage Switchgear is a versatile product that finds application in various occasions and scenarios due to its reliable performance and high-quality standards. As a leading brand in the industry, TIANAN ensures that its low voltage switchgear meets the requirements of different environments and applications.

One of the primary product application occasions for TIANAN GCS Low Voltage Switchgear is in Low Voltage Substation Equipment setups. These switchgear units are essential components in substation installations where they play a crucial role in controlling, protecting, and isolating electrical circuits. The GCS model from TIANAN, with its IEC&GB certifications and compliance with standards such as IEC61439-2 and GB, is well-suited for use in low voltage substation applications.

Another key scenario for the use of TIANAN GCS Low Voltage Switchgear is in Low Voltage Switching Devices. These devices are used in various industrial and commercial settings to ensure safe and efficient distribution of power. With a rated voltage of AC 220,380(400) V and DC 110, 220V, the GCS switchgear unit offers reliable performance in switching operations, making it ideal for low voltage switching applications.

Additionally, TIANAN GCS Low Voltage Switchgear is suitable for Low Voltage Power Distribution Units where the efficient distribution of power is essential. The product's protection degree of IP 30, IP40, IP42, and rated short time withstand current of busbar options ranging from 10 to 80 KA/1s make it a reliable choice for power distribution applications.

With a minimum order quantity of 1 set, packaging details in wooden cases, and a delivery time of 30 days per set, TIANAN GCS Low Voltage Switchgear offers flexibility and convenience to customers. The product's origin from China further assures customers of its quality and reliability.

In conclusion, TIANAN GCS Low Voltage Switchgear is a top choice for various product application occasions and scenarios, including Low Voltage Substation Equipment, Low Voltage Switching Devices, and Low Voltage Power Distribution Units. With its high-quality standards, certifications, and compliance with industry regulations, the GCS switchgear unit provides efficient and reliable performance in diverse electrical applications.

Customization:

Product Customization Services for the Low Voltage Switchgear product:

- Brand Name: TIANAN

- Model Number: GCS

- Place of Origin: CHINA

- Certification: IEC&GB

- Minimum Order Quantity: 1 SET

- Price: To be pending

- Packaging Details: WOODEN CASE

- Delivery Time: 30 DATS/SET

- Payment Terms: To be pending

- Supply Ability: To be pending

- Rated peak withstand current of busbar: 17, 40, 105, 176 KA/1s

- Altitude: <2000 M

- Rated voltage of main circuit: AC 380(400),690 V

- Protection degree: IP 30, IP40, IP42

- Installation inclination: <5 Degrees

Keywords: Low Voltage Power Distribution Unit, Low Voltage Substation Equipment, Low Voltage Electrical Panels

Support and Services:

Product Technical Support and Services for Low Voltage Switchgear:

Our technical support team is available to assist with any inquiries or issues related to your Low Voltage Switchgear product. We offer troubleshooting services, maintenance guidance, and product documentation to help you maximize the performance and lifespan of your equipment. Additionally, we provide training programs to ensure that you and your team are well-equipped to operate and maintain the switchgear effectively.
