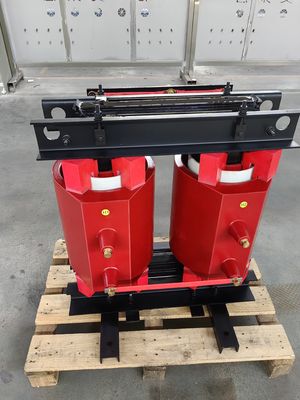

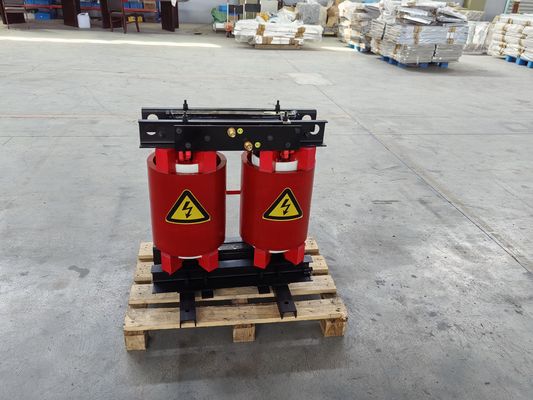

IO Connection Symbol Cast Resin Dry Type Transformer Single Phase Rated Capacity 33 KVA Ideal for Industrial Applications

Product Description:

The Cast Resin Dry Type Transformer is a highly reliable and efficient electrical device designed to meet the demanding requirements of modern power distribution systems. This transformer features a secondary voltage of 240 V, making it ideal for various low voltage applications where stable and consistent power supply is essential. As a single-phase transformer operating at a frequency of 60 Hz, it is perfectly suited for residential, commercial, and light industrial environments where single-phase power is standard.

One of the key characteristics of this product is its cast resin construction, which offers numerous advantages over traditional transformer designs. Cast Resin Low Voltage Transformers are known for their superior insulation properties, excellent thermal performance, and enhanced safety features. The use of cast resin ensures that the windings are fully encapsulated in a solid epoxy resin, which protects the transformer from moisture, dust, and other environmental contaminants. This robust construction significantly reduces the risk of electrical faults and extends the operational life of the transformer.

In addition to its durability, the Cast Resin Type Transformers provide excellent electrical performance. Thanks to their carefully engineered design, these transformers maintain a stable voltage output with minimal losses, contributing to energy efficiency and cost savings in the long run. The single-phase configuration with a connection symbol of I;io simplifies installation and integration into existing electrical systems, making it a versatile choice for a wide range of applications.

Despite their rugged design, these transformers are intended for indoor use, classified under the category of Cast Resin Indoor Transformers. Their protection rating of IP00 indicates that while they do not have specific ingress protection against dust or water, their installation within controlled indoor environments ensures optimal performance and safety. This makes them particularly suitable for use in electrical rooms, control panels, and other indoor settings where environmental conditions can be managed.

The Cast Resin Dry Type Transformer is engineered with the end-user in mind, combining ease of installation, minimal maintenance requirements, and high reliability. The absence of oil or other liquid insulators eliminates the risk of fire hazards and environmental contamination, making these transformers an environmentally friendly and safe choice. Furthermore, the superior heat dissipation properties of cast resin materials allow these transformers to operate efficiently under continuous load without overheating.

Another significant advantage of Cast Resin Low Voltage Transformers is their low noise operation. Unlike traditional oil-filled transformers, the cast resin design significantly reduces humming and vibrations, contributing to a quieter working environment. This feature is especially beneficial in settings such as hospitals, schools, and office buildings where noise reduction is a priority.

To summarize, the Cast Resin Dry Type Transformer with a secondary voltage of 240 V, single-phase configuration, and 60 Hz frequency is an excellent solution for reliable and efficient power distribution. Its cast resin encapsulation provides enhanced safety, durability, and environmental protection, making it a preferred choice among Cast Resin Type Transformers. Designed specifically for indoor applications, these Cast Resin Indoor Transformers offer superior electrical performance, ease of maintenance, and quiet operation, ensuring they meet the diverse needs of modern electrical installations.

Whether you are upgrading existing infrastructure or designing a new electrical system, investing in Cast Resin Dry Type Transformers guarantees a dependable, safe, and energy-efficient power solution tailored for low voltage applications. Their proven performance and robust construction make them an indispensable component in ensuring the stability and longevity of electrical networks.

Features:

• Product Name: Cast Resin Dry Type Transformer
• Rated Capacity: 33 KVA
• Frequency: 60 Hz
• Primary Voltage: 16/0.24 KV
• Secondary Voltage: 240 V
• Insulation Class: F
• High performance Cast Resin Low Voltage Transformers ensuring durability and safety
• Advanced Cast Resin Type Transformers design for enhanced electrical insulation
• Reliable Cast Resin Low Voltage Transformers suitable for various industrial applications

Technical Parameters:

Applications:

The Cast Resin Dry-Type Transformer, model DC9-33/16-0.24, is a highly reliable and efficient electrical device manufactured in China, designed to meet a wide range of power distribution needs. Certified under IEC GB standards, this transformer ensures superior performance and safety, making it an ideal choice for various application occasions and scenarios. With a rated current of 2.06/137.5 A, single-phase configuration, and AN cooling method, it operates efficiently in ambient temperatures up to 30℃, providing stable power supply in diverse environments.

Cast Resin Type Transformers are especially suitable for indoor applications where safety, durability, and low maintenance are paramount. Their cast resin insulation eliminates the risk of oil leakage, reducing fire hazards and environmental concerns. This makes Cast Resin Indoor Transformers perfect for use in commercial buildings, hospitals, schools, and data centers where reliable power distribution is critical and space is limited.

In industrial scenarios, the DC9-33/16-0.24 model is widely employed to power machinery, control panels, and production lines that require stable voltage regulation. The transformer’s robust design and wooden case packaging ensure safe transportation and installation, even in demanding industrial environments. Its connection symbol I;io supports flexible wiring configurations, accommodating various electrical system requirements.

Cast Resin Indoor Transformers also find extensive use in renewable energy projects, such as solar power plants and wind farms, where dry-type transformers offer enhanced safety and environmental benefits compared to traditional oil-filled transformers. They are also favored in public infrastructure projects like metro systems, airports, and telecommunications facilities, where continuous and reliable power supply is crucial.

With a supply ability of 100 sets per year and a minimum order quantity of just 1 set, this product is accessible for both small-scale and large-scale projects. Payment terms including FOB, EXW, and CIF provide flexibility for international buyers. Delivery time is typically 30 days per set, ensuring timely availability for urgent project demands.

In summary, the Cast Resin Dry-Type Transformer DC9-33/16-0.24 is an excellent solution for various indoor power distribution requirements, combining safety, efficiency, and environmental friendliness. Whether for commercial, industrial, or renewable energy applications, these Cast Resin Indoor Transformers are designed to deliver optimal performance and reliability in every scenario.

Customization:

Our Cast Resin Dry-Type Transformer product, model number DC9-33/16-0.24, is a high-quality Cast Resin Indoor Transformer designed to meet various industrial needs. Manufactured in CHINA and certified with IEC and GB standards, this single-phase transformer features a primary voltage of 16/0.24 KV, rated current of 2.06/137.5 A, protection level IP00, and insulation class F.

We offer flexible product customization services for our Cast Resin Indoor Transformers to ensure they perfectly fit your specific requirements. With a minimum order quantity of just 1 set, you can benefit from our reliable supply ability of 100 units per year. Each transformer is carefully packaged in a sturdy wooden case to guarantee safe delivery.

Our delivery time is approximately 30 days per set, and we provide multiple payment terms including FOB, EXW, and CIF to accommodate your purchasing preferences. Prices are to be confirmed based on your customization needs. Trust our expertise in Cast Resin Indoor Transformers to deliver durable, efficient, and safe electrical solutions tailored just for you.

Support and Services:

Our Cast Resin Dry Type Transformers are supported by a comprehensive range of technical support and services designed to ensure optimal performance and longevity. We provide expert consultation during the selection and specification process to help you choose the right transformer for your application.

Installation guidance and commissioning assistance are available to ensure that your transformer is set up correctly and operates efficiently from day one. Our trained service technicians offer routine maintenance, inspections, and testing services to identify and address potential issues before they affect performance.

In the event of a fault or failure, our prompt repair and refurbishment services help minimize downtime and extend the life of your transformer. We also offer customized training programs for your staff to enhance their understanding of transformer operation, maintenance, and safety protocols.

Additionally, we provide detailed documentation, including manuals and troubleshooting guides, to support your maintenance team. Our commitment to ongoing support ensures that your Cast Resin Dry Type Transformer continues to deliver reliable and efficient service throughout its operational life.
