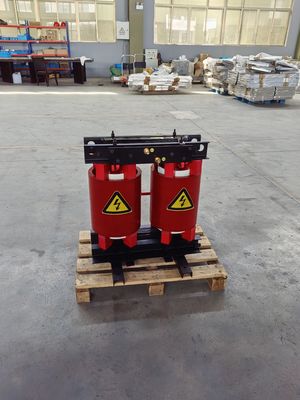

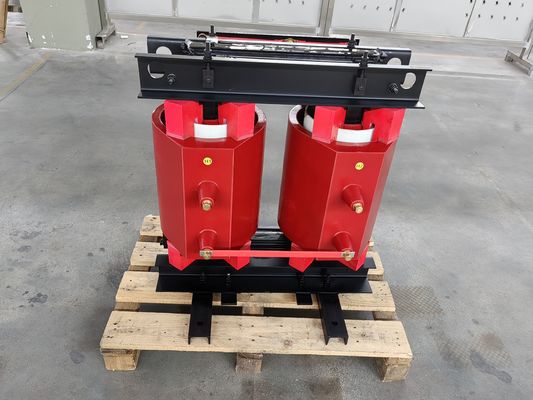

IP00 Protection Cast Resin Type Transformers With Cooling AN Technology Ensuring Electrical Performance and Thermal Management

Product Description:

The Cast Resin Dry Type Transformer is an advanced electrical device designed to provide reliable voltage transformation with enhanced safety and efficiency. Operating at a frequency of 60 Hz, this transformer is engineered to meet the demanding requirements of modern electrical systems. It features a secondary voltage rating of 240 V, making it ideal for a wide range of industrial, commercial, and residential applications where stable and consistent voltage output is critical.

One of the defining characteristics of this product is its construction as a Cast Resin Type Transformer. Unlike traditional oil-filled transformers, Cast Resin Type Transformers utilize epoxy resin to encapsulate the windings, providing superior insulation and protection against environmental factors such as moisture, dust, and contaminants. This resin encapsulation not only improves the durability of the transformer but also significantly reduces the risk of fire hazards, making it a safer choice for indoor installations.

Designed with an insulation class of F, the transformer can withstand higher temperatures, ensuring long-term reliability and performance even under demanding operating conditions. The insulation system provides a thermal rating that allows the transformer to operate efficiently at elevated temperatures without degradation, thereby extending its service life. This feature is particularly important in environments where ambient temperatures can reach up to 30℃, as it ensures the transformer remains stable and functional without overheating.

The Cast Resin Indoor Transformers are specifically optimized for indoor use, where protection and safety are paramount. With an IP00 protection rating, the transformer is designed without a protective enclosure, which requires careful installation in controlled environments to prevent exposure to foreign objects and moisture. Despite the lack of an enclosure, the cast resin encapsulation offers robust internal protection, making these transformers suitable for installation in electrical rooms, control panels, and other indoor settings where space and cooling considerations are critical.

In addition to their safety and performance features, Cast Resin Type Transformers are known for their low maintenance requirements. The absence of oil eliminates the need for regular oil checks and reduces environmental concerns related to oil leaks and disposal. This contributes to lower operational costs and simplifies the overall management of the electrical system. Furthermore, the dry-type design enhances the transformer's resilience against short circuits and mechanical stresses, providing greater reliability in demanding applications.

These transformers are widely used in various sectors, including manufacturing plants, commercial buildings, hospitals, educational institutions, and data centers, where reliable power distribution is essential. Their ability to operate efficiently at a standard frequency of 60 Hz and deliver a stable secondary voltage of 240 V makes them versatile solutions for numerous power distribution challenges. Moreover, the use of Cast Resin Indoor Transformers aligns with modern safety standards and environmental regulations, promoting safer workplaces and sustainable power management practices.

In summary, the Cast Resin Dry Type Transformer offers a robust, safe, and efficient solution for voltage transformation needs. Its key features such as 60 Hz operating frequency, 240 V secondary voltage, IP00 protection rating, F class insulation, and suitability for ambient temperatures up to 30℃ make it an excellent choice for indoor electrical applications. By leveraging the advantages of cast resin technology, these transformers provide enhanced safety, reduced maintenance, and reliable performance, solidifying their position as a preferred option in the realm of Cast Resin Type Transformers and Cast Resin Indoor Transformers.

Features:

• Product Name: Cast Resin Dry Type Transformer
• Rated Capacity: 33 KVA
• Primary Voltage: 16/0.24 KV
• Ambient Temperature: 30℃
• Protection Level: IP00
• Frequency: 60 Hz
• Robust and reliable Cast Resin Low Voltage Transformers design
• Suitable for indoor use as Cast Resin Indoor Transformers
• Maintenance-free due to cast resin insulation
• Excellent electrical and thermal performance

Technical Parameters:

Applications:

The Cast Resin Dry-Type Transformer, model DC9-33/16-0.24, is a highly reliable and efficient electrical device designed for various application occasions and scenarios. Manufactured in China and certified under IEC and GB standards, this transformer is built to meet stringent quality and safety requirements. Its robust construction and cast resin insulation technology make it ideal for environments where safety, durability, and low maintenance are critical.

Cast Resin Type Transformers are widely used in commercial buildings, industrial plants, and renewable energy systems. Their excellent resistance to moisture, dust, and environmental contaminants makes them perfect for indoor installations in places such as office complexes, shopping malls, hospitals, and schools. The single-phase design with a primary voltage of 16/0.24 KV and a secondary voltage of 240 V ensures stable voltage transformation suitable for lighting, HVAC systems, and other electrical equipment.

In industrial scenarios, Cast Resin Type Transformers offer reliable performance in factories and manufacturing units where electrical isolation and safety are paramount. The rated current of 2.06/137.5 A and IP00 protection rating indicate that this transformer is optimized for dry, controlled environments, providing dependable service with minimal risk of electrical faults caused by moisture or dust ingress.

Renewable energy projects, such as solar and wind power plants, also benefit from the advanced design of Cast Resin Type Transformers. Their environmentally friendly cast resin insulation eliminates the use of oil, reducing fire hazards and environmental risks. The transformer’s compact size and packaging in sturdy wooden cases facilitate easy transportation and installation, with a delivery time of 30 days per set and a supply ability of 100 sets per year.

With flexible payment terms including FOB, EXW, and CIF, and a minimum order quantity of just one set, this Cast Resin Dry-Type Transformer caters to a wide range of customers from small businesses to large enterprises. Whether used for upgrading electrical infrastructure, supporting critical systems, or integrating renewable energy sources, the Cast Resin Type Transformers provide reliable voltage regulation, safety, and efficiency in diverse operational scenarios.

Customization:

Our Cast Resin Dry-Type Transformer model DC9-33/16-0.24 is a high-quality Cast Resin Indoor Transformer designed and manufactured in CHINA. Certified under IEC and GB standards, this Cast Resin Type Transformer ensures reliable performance and safety for various electrical applications.

This product features a secondary voltage of 240 V and operates at a frequency of 60 Hz, complying with the IEC60076 standard. The connection symbol is I;io, and it uses AN cooling to maintain optimal temperature during operation.

We offer a minimum order quantity of 1 set, with a supply ability of 100 sets per year. The transformers are carefully packaged in a durable wooden case to ensure safe delivery. The delivery time is approximately 30 days per set.

Pricing is to be confirmed based on order specifics, and we provide flexible payment terms including FOB, EXW, CIF, and more to accommodate your needs.

Choose our Cast Resin Indoor Transformers for efficient, safe, and reliable power solutions tailored to your requirements.

Support and Services:

Our Cast Resin Dry Type Transformers are designed for reliable performance and minimal maintenance in a variety of industrial and commercial applications. For technical support, our team of experts is available to assist with installation guidance, troubleshooting, and maintenance recommendations to ensure optimal operation and longevity of your transformer.

We provide comprehensive services including on-site inspections, testing, and diagnostics to identify and resolve any issues promptly. Additionally, we offer customized solutions tailored to your specific power requirements and environmental conditions.

Regular maintenance services such as cleaning, thermal imaging, and electrical testing are available to help prevent unexpected failures and extend the service life of your equipment. Our support also includes assistance with compliance to relevant industry standards and safety regulations.

For further information on service plans, upgrades, or spare parts for your Cast Resin Dry Type Transformer, please refer to our detailed product documentation or contact our technical support team.
