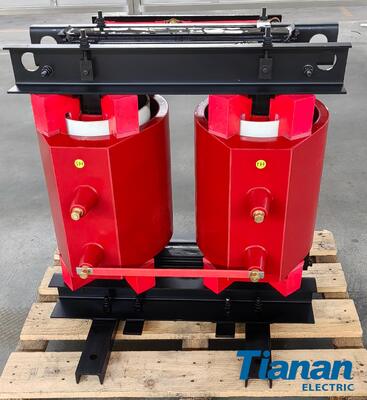

AN Cooling Cast Resin Indoor Transformers Rated Capacity 33 KVA Durable Electrical Equipment for Industrial Applications

Product Description:

The Cast Resin Dry Type Transformer is an advanced electrical device designed to provide reliable and efficient voltage transformation for a variety of indoor applications. Specifically engineered as a single phase transformer, this product is an ideal solution for environments where space constraints and safety are critical considerations. With a primary voltage rating of 16/0.24 KV, this transformer is well-suited for stepping down medium voltage to low voltage, ensuring stable power supply and optimal performance in residential, commercial, and industrial settings.

This particular model of Cast Resin Indoor Transformers features a cast resin insulated winding system, which offers superior resistance to moisture, dust, and other environmental contaminants. Unlike traditional oil-filled transformers, the cast resin design significantly reduces the risk of fire hazards, making it a safer choice for indoor installations. The IP00 protection rating indicates that the transformer is designed without an enclosure, allowing for natural ventilation and easy maintenance while requiring installation in a controlled environment to prevent exposure to foreign objects and moisture.

Cooling for this transformer is achieved through natural air cooling (AN), a method that relies on ambient air circulation to dissipate heat generated during operation. This cooling technique is both energy-efficient and environmentally friendly, eliminating the need for additional cooling equipment or fluids. Natural air cooling ensures that the transformer operates within safe temperature limits, thus prolonging its lifespan and maintaining consistent performance even under varying load conditions.

One of the standout features of these Cast Resin Indoor Transformers is their low no-load loss, rated at just 208 watts. Low no-load loss translates to reduced energy consumption when the transformer is energized but not supplying load, enhancing overall energy efficiency and reducing operational costs. This efficiency is a critical factor for facilities aiming to minimize power wastage and comply with stringent energy regulations. The reduced losses also contribute to lower heat generation, which in turn improves the reliability and durability of the transformer over time.

Constructed with high-quality materials and precision engineering, the Cast Resin Dry Type Transformer ensures excellent electrical performance and mechanical strength. The use of cast resin insulation eliminates the need for oil, thereby removing the environmental risks associated with oil leaks and spills. The single phase configuration makes it versatile for a range of applications such as lighting systems, small-scale industrial machinery, HVAC systems, and other equipment requiring stable and safe voltage transformation.

These Cast Resin Indoor Transformers also benefit from their compact size and lightweight design, allowing for easy installation in confined indoor spaces. Their robust construction and the absence of flammable liquids contribute to enhanced operational safety, making them suitable for use in schools, hospitals, office buildings, and other public or private facilities where safety standards are paramount. Maintenance requirements are minimal due to the sealed and solid insulation system, which reduces downtime and maintenance costs over the transformer's operational life.

In summary, the Cast Resin Dry Type Transformer with an IP00 protection rating, single phase configuration, natural air cooling, 208 W no-load loss, and a primary voltage of 16/0.24 KV offers an exceptional combination of safety, efficiency, and reliability. It is a smart choice for customers seeking high-performance Cast Resin Indoor Transformers that meet modern electrical infrastructure demands while prioritizing environmental responsibility and operational safety. Whether for upgrading existing installations or new projects, this transformer provides a dependable and cost-effective solution tailored to indoor applications.

Features:

• Product Name: Cast Resin Dry Type Transformer
• Phase: Single
• Connection Symbol: I;io
• Frequency: 60 Hz
• Cooling Method: AN (Air Natural)
• Protection Level: IP00
• Designed as Cast Resin Type Transformers for enhanced safety and durability
• Ideal for indoor use as Cast Resin Indoor Transformers
• Provides reliable performance with superior insulation and environmental resistance

Technical Parameters:

Applications:

The Neutral ground transformer, model number DC9-33/16-0.24, is a high-quality Cast Resin Dry Type Transformer designed and manufactured in China. Certified under IEC and GB standards, this transformer ensures reliable performance and safety in various electrical applications. With a rated capacity of 33 KVA, primary voltage of 16/0.24 KV, and a rated current of 2.06/137.5 A, it is ideal for use in environments requiring stable and efficient voltage transformation. The no-load current of 2.12A and AN cooling method contribute to its efficient operation and long service life.

Cast Resin Low Voltage Transformers like the DC9-33/16-0.24 are widely used in industrial, commercial, and residential settings where indoor installation is necessary. Their robust cast resin insulation makes them particularly suited for indoor applications, providing excellent resistance to moisture, dust, and corrosive environments. This ensures safety and durability, making Cast Resin Indoor Transformers a preferred choice for factories, office buildings, shopping malls, and hospitals.

Typical application scenarios for this Cast Resin Type Transformer include power distribution in manufacturing plants, electrical substations, and control rooms. Due to its compact size and reliable performance, it is also suitable for use in renewable energy systems, such as solar power plants, where stable voltage regulation is critical. Additionally, it can be employed in data centers and telecommunications facilities to ensure uninterrupted power supply and protect sensitive electronic equipment from voltage fluctuations.

Packaging details for the Neutral ground transformer include sturdy wooden cases to ensure safe transportation and delivery within 30 days per set. The supply ability is 100 units per year, with flexible payment terms such as FOB, EXW, and CIF, accommodating various customer requirements. The minimum order quantity is 1 set, offering convenience for both small and large scale projects.

In summary, the DC9-33/16-0.24 Cast Resin Dry Type Transformer is a reliable, efficient, and versatile solution for various power distribution needs. Its use as a Cast Resin Low Voltage Transformer, Cast Resin Indoor Transformer, and general Cast Resin Type Transformer makes it an excellent choice for customers seeking high performance and compliance with international standards.

Customization:

Our Cast Resin Dry Type Transformer, branded as Neutral Ground Transformer, model number DC9-33/16-0.24, is designed to meet your specific needs with excellent customization services. Manufactured in CHINA and certified under IEC GB standards, this product ensures high quality and reliability.

We specialize in Cast Resin Type Transformers, providing options tailored to your requirements. The transformer features a no-load loss of 208 W, operates at a frequency of 60 Hz, and delivers a secondary voltage of 240 V with a single-phase configuration. Its protection rating is IP00, suitable for indoor use.

Our Cast Resin Indoor Transformers come with customizable packaging in sturdy wooden cases, ensuring safe delivery. The minimum order quantity is 1 set, with a supply ability of 100 sets per year. Delivery time is approximately 30 days per set.

We offer flexible payment terms including FOB, EXW, CIF, and more. Pricing is to be confirmed based on your specific order requirements. Trust our expertise in providing reliable Cast Resin Type Transformers tailored to your application.

Support and Services:

Our Cast Resin Dry Type Transformers are designed for optimal performance and reliability in a wide range of applications. To ensure the longevity and efficiency of your transformer, it is essential to follow proper installation, operation, and maintenance guidelines.

Technical Support Services:

We offer comprehensive technical support to assist with product selection, installation guidance, troubleshooting, and performance optimization. Our team of experts is available to provide detailed information on transformer specifications, electrical characteristics, and compatibility with your system requirements.

Installation and Commissioning:

Proper installation is crucial for the safe and efficient operation of cast resin dry type transformers. Our support includes recommendations on site preparation, mounting, electrical connections, and initial testing procedures to help you achieve optimal setup and compliance with industry standards.

Maintenance and Inspection:

Regular maintenance is vital to maintain transformer performance and extend service life. We provide detailed guidelines on routine inspections, cleaning, thermal monitoring, and testing to detect potential issues early. Our services may also include on-site inspections and diagnostic testing to ensure your transformer operates within specified parameters.

Repair and Replacement Services:

In the event of transformer failure or degradation, our technical team can assist with repair assessments and recommend appropriate corrective actions. We also offer replacement solutions tailored to your specific needs, ensuring minimal downtime and continued operational reliability.

Training and Documentation:

To empower your team, we provide training sessions and comprehensive documentation covering installation procedures, safety practices, troubleshooting methods, and maintenance schedules. This ensures that your personnel are well-equipped to manage and support the transformer throughout its lifecycle.

For further assistance and detailed technical inquiries regarding our Cast Resin Dry Type Transformers, please refer to the product manual or contact our technical support department through the official channels provided by your supplier.
