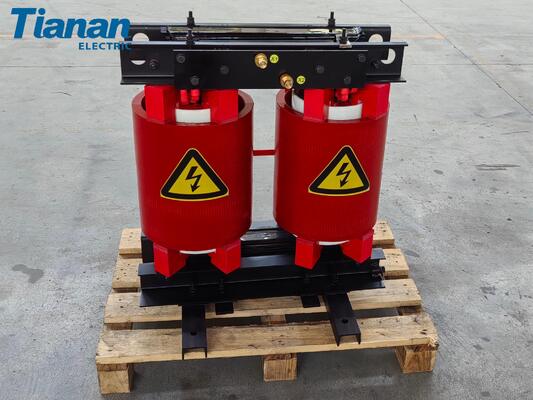

60 Hz Frequency Cast Resin Dry Type Transformer Rated Current 2.06 137.5 A Primary Voltage 16 0.24 KV for Electrical Systems

Product Description:

The Cast Resin Dry Type Transformer is an advanced electrical device designed to provide reliable and efficient voltage transformation for a variety of indoor applications. Engineered with precision and built using high-quality materials, this transformer is a perfect solution for those seeking dependable performance coupled with enhanced safety features. As a specialized product within the category of Cast Resin Indoor Transformers, it offers superior insulation and resistance to environmental factors, making it an ideal choice for low voltage distribution systems.

This particular model is a single-phase transformer, optimized for use in settings where a secondary voltage of 240 V is required. The single-phase configuration ensures simplicity and ease of integration into existing electrical networks, making it suitable for commercial buildings, industrial facilities, and residential complexes. The transformer operates with an impressive efficiency profile, characterized by a no-load loss of only 208 watts, which helps minimize energy waste during operation and contributes to overall energy savings.

One of the standout features of this transformer is its cast resin insulation technology. Unlike traditional oil-filled transformers, Cast Resin Type Transformers utilize epoxy resin to encase the windings, providing excellent protection against moisture, dust, and corrosive elements. This design significantly enhances the safety and durability of the transformer, reducing the risk of fire hazards and eliminating the need for oil maintenance. The solid insulation also improves the transformer's ability to withstand short circuits and mechanical stresses, ensuring long-term operational reliability.

Cooling in this transformer is achieved through natural air cooling (AN), which leverages ambient air circulation to dissipate heat generated during operation. This cooling method is both environmentally friendly and cost-effective, as it eliminates the need for additional cooling equipment or fluids. The natural air cooling system also contributes to quieter operation, making this transformer suitable for indoor environments where noise reduction is a priority.

The no-load current of the transformer is rated at 2.12 amperes, which indicates the current drawn when the transformer is energized but not supplying any load. This parameter is crucial for understanding the transformer's efficiency and performance under no-load conditions. A low no-load current signifies reduced core losses and better energy efficiency, which translates to lower operational costs over the transformer's lifespan.

Incorporating this transformer into your electrical infrastructure means investing in a product that aligns with modern standards of safety, efficiency, and environmental responsibility. Cast Resin Low Voltage Transformers like this one are increasingly favored in various industries due to their robust construction and minimal maintenance requirements. Their compact design and excellent thermal performance also facilitate easier installation and integration into confined spaces, further enhancing their appeal.

Overall, this Cast Resin Dry Type Transformer represents a reliable and efficient solution for voltage transformation needs. Its combination of a 240 V secondary voltage, low no-load loss of 208 W, natural air cooling, single-phase configuration, and a no-load current of 2.12A makes it an outstanding choice for applications demanding high performance and safety. Whether used in commercial, industrial, or residential settings, it exemplifies the advantages of Cast Resin Indoor Transformers and underscores the benefits of adopting Cast Resin Type Transformers in modern electrical systems.

Features:

• Product Name: Cast Resin Dry Type Transformer
• Phase: Single
• Connection Symbol: I;io
• No-load Loss: 208 W
• Cooling Method: AN (Air Natural)
• Standard Compliance: IEC60076
• Designed as Cast Resin Type Transformers for enhanced safety and durability
• Ideal for indoor applications as Cast Resin Indoor Transformers
• Offers excellent electrical insulation and moisture resistance
• Maintenance-free due to its cast resin insulation technology

Technical Parameters:

Applications:

The Neutral Ground Transformer model DC9-33/16-0.24 is a high-quality Cast Resin Type Transformer designed and manufactured in China. Certified to meet IEC and GB standards, this single-phase transformer is ideal for various industrial and commercial applications requiring reliable and efficient power distribution. With a secondary voltage of 240 V and connection symbol I;io, it ensures stable and safe voltage transformation suitable for sensitive electrical equipment.

Cast Resin Type Transformers, such as the DC9-33/16-0.24, are widely used in environments where enhanced insulation and durability are crucial. Their cast resin insulation technology makes them highly resistant to moisture, dust, and corrosive substances, making them perfect for harsh industrial settings, including factories, manufacturing plants, and outdoor installations. These transformers are particularly suitable for applications involving low voltage needs, often referred to as Cast Resin Low Voltage Transformers, ensuring optimal performance and minimal maintenance.

With a no-load loss of only 208 W and a no-load current of 2.12 A, this model is designed to minimize energy consumption during idle periods, improving overall system efficiency. The transformer is packaged securely in a wooden case to guarantee safe delivery, with a delivery time of 30 days per set. Customers can order a minimum quantity of one set, and the supply ability is 100 units per year, making it accessible for both small-scale and larger projects.

The DC9-33/16-0.24 transformer is ideal for use in power distribution networks, control panels, and equipment requiring a reliable low voltage supply with neutral grounding. Its robust design and compliance with international certification standards make it a trusted choice for electrical contractors, engineers, and system integrators looking for durable and efficient Cast Resin Type Transformers. Payment terms such as FOB, EXW, and CIF offer flexible purchasing options to meet various buyer requirements.

In summary, the Neutral Ground Transformer DC9-33/16-0.24 is a dependable Cast Resin Low Voltage Transformer that excels in providing stable, safe, and efficient power transformation across diverse application scenarios. Its superior insulation, low energy loss, and compliance with IEC GB certifications make it a valuable component in modern electrical infrastructure.

Customization:

Our Cast Resin Dry Type Transformer, model number DC9-33/16-0.24, is a high-quality product from the trusted Neutral Ground Transformer brand. Manufactured in China and certified under IEC and GB standards, this transformer ensures reliable performance and safety.

Designed as a Cast Resin Low Voltage Transformer, it features a rated capacity of 33 KVA and operates as a single-phase unit with AN cooling. It complies with the IEC60076 standard and exhibits a no-load current of 2.12A, making it an efficient and dependable choice for various indoor applications.

This Cast Resin Type Transformer is ideal for indoor use and comes carefully packaged in a wooden case to guarantee safe delivery. With a supply ability of 100 sets per year and a minimum order quantity of just 1 set, we offer flexible purchasing options. The delivery time is approximately 30 days per set.

Payment terms are flexible, including FOB, EXW, CIF, and more, with pricing to be confirmed based on order specifics. Choose our Cast Resin Indoor Transformers for superior quality, durability, and performance in your electrical installations.

Support and Services:

Our Cast Resin Dry Type Transformers are designed for superior performance, safety, and reliability in various industrial and commercial applications. To ensure optimal functioning and longevity of your transformer, we provide comprehensive technical support and services.

Technical Support:

Our expert technical team is available to assist with installation guidance, troubleshooting, and maintenance procedures. We offer detailed documentation, including user manuals and wiring diagrams, to facilitate easy setup and operation. For any technical inquiries, our support staff is ready to provide prompt and accurate solutions.

Services:

We provide a range of services including on-site inspection, routine maintenance, and performance testing to ensure your transformer operates efficiently. Our team can assist with retrofit and upgrade options to enhance capacity and comply with latest standards. Additionally, we offer repair and refurbishment services to extend the service life of your equipment.

By choosing our Cast Resin Dry Type Transformers, you benefit from not only a high-quality product but also dedicated support and service to meet your operational needs.
