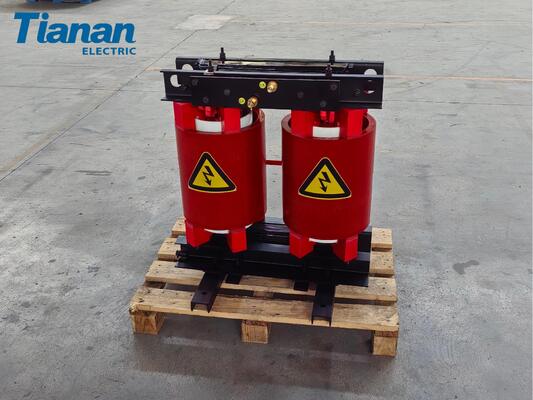

No-load loss 208 W Cast Resin Type Transformers Incorporating IP00 Protection Ensuring and Electrical Power Distribution

Product Description:

The Cast Resin Dry Type Transformer is an advanced electrical device designed to provide reliable and efficient voltage transformation for a wide range of industrial and commercial applications. This transformer belongs to the category of Cast Resin Indoor Transformers, known for their superior insulation properties and robust construction that ensure safe and stable operation even in demanding environments. With a rated capacity of 33 KVA, this transformer is ideally suited for medium power distribution needs, offering excellent performance and energy efficiency.

One of the most notable features of this Cast Resin Type Transformer is its low no-load current, measured at 2.12A. This attribute is crucial as it indicates minimal energy consumption when the transformer is energized but not supplying load, contributing to reduced operational costs and improved overall efficiency. Additionally, the no-load loss of this transformer is recorded at 208 W, which further highlights its energy-saving capabilities by minimizing the power wasted during idle periods.

The secondary voltage of this transformer is rated at 240 V, making it compatible with a variety of electrical systems and equipment that require a stable voltage supply within this range. The connection symbol for this transformer is I;io, which indicates the specific winding arrangement and connection scheme employed. This connection configuration is designed to optimize performance, ensure voltage stability, and facilitate easy integration into existing electrical networks.

Cast Resin Indoor Transformers are highly valued for their enhanced safety features compared to traditional oil-filled transformers. The use of cast resin insulation instead of oil eliminates the risk of fire hazards and environmental contamination, making these transformers ideal for indoor installations where safety and cleanliness are paramount. Their robust encapsulation also provides excellent protection against moisture, dust, and chemicals, thereby extending the service life of the transformer and reducing maintenance requirements.

In addition to safety and reliability, Cast Resin Type Transformers offer superior thermal performance. The cast resin insulation allows for efficient heat dissipation, enabling the transformer to operate at lower temperatures even under high load conditions. This thermal advantage not only improves the durability of the transformer components but also allows for a more compact design, saving valuable space in indoor electrical rooms and substations.

The 33 KVA Cast Resin Dry Type Transformer is engineered to meet stringent industry standards and is suitable for various applications including commercial buildings, manufacturing facilities, hospitals, and data centers. Its indoor rating ensures that it can be installed in controlled environments where noise levels, space constraints, and safety considerations are critical factors. The use of cast resin technology ensures that the transformer remains resilient under electrical stresses and environmental challenges, maintaining consistent performance over time.

Overall, this Cast Resin Indoor Transformer represents a state-of-the-art solution for efficient, safe, and reliable power distribution. Its combination of low no-load current, minimal no-load loss, and optimal secondary voltage makes it an excellent choice for users seeking to enhance energy efficiency while ensuring operational stability. Whether used in new installations or as a replacement for older transformers, this product delivers outstanding value and long-term performance in a compact, maintenance-friendly design.

Features:

• Product Name: Cast Resin Dry Type Transformer
• Connection Symbol: I;io
• Phase: Single
• Protection Level: IP00
• Standard Compliance: IEC60076
• Cooling Method: AN (Air Natural)
• Designed as Cast Resin Indoor Transformers for enhanced safety and reliability
• Ideal for use as Cast Resin Type Transformers in indoor applications
• Provides superior insulation and reduced fire risk typical of Cast Resin Indoor Transformers

Technical Parameters:

Applications:

The Neutral ground transformer, model number DC9-33/16-0.24, is a high-quality Cast Resin Dry Type Transformer manufactured in China, certified under IEC and GB standards. This product is designed with advanced technology to meet diverse industrial and commercial applications requiring reliable and efficient power transformation. As a Cast Resin Low Voltage Transformer, it excels in environments where safety, durability, and minimal maintenance are critical.

Cast Resin Type Transformers like this model are ideal for use in various application occasions and scenarios. They are commonly deployed in industrial plants, commercial buildings, and infrastructure projects where low voltage power distribution is essential. Thanks to its robust construction using cast resin insulation, this transformer resists moisture, dust, and corrosive environments, making it suitable for indoor installations in factories, substations, and workshops with harsh conditions.

The DC9-33/16-0.24 model features a rated current of 2.06/137.5 A and a secondary voltage of 240 V, operating on a single-phase power supply. Its no-load current of 2.12A ensures energy efficiency during standby operation. This transformer adheres to the IEC60076 standard, guaranteeing reliability and safety compliance across various applications. Typical scenarios include power supply for motor control centers, distribution boards, HVAC systems, and lighting circuits where low voltage stability is paramount.

Due to its compact and maintenance-free design, Cast Resin Low Voltage Transformers are also preferred in hospitals, data centers, and commercial complexes where uninterrupted and clean power is necessary. The product is supplied with durable wooden case packaging, ensuring safe delivery within 30 days per set. With a supply ability of 100 units per year and flexible payment terms such as FOB, EXW, and CIF, this transformer meets both small and large scale project demands.

In summary, the Neutral ground transformer DC9-33/16-0.24 is a versatile and reliable solution for many electrical power distribution needs. Its cast resin insulation technology, compliance with international standards, and robust performance make it an excellent choice for any application requiring high-quality Cast Resin Type Transformers or Cast Resin Low Voltage Transformers.

Customization:

Our Cast Resin Dry Type Transformer, branded as Neutral ground transformer, model number DC9-33/16-0.24, is a high-quality solution designed to meet diverse industrial needs. Manufactured in CHINA and certified under IEC GB standards, this product ensures reliability and compliance with international regulations.

Specializing in Cast Resin Indoor Transformers, our product adheres to the IEC60076 standard and operates efficiently at a frequency of 60 Hz. With a no-load loss of only 208 W and a rated current of 2.06/137.5 A, this single-phase transformer is optimized for performance and energy savings.

Our Cast Resin Low Voltage Transformers are carefully packaged in sturdy WOODEN CASES to ensure safe delivery. We offer flexible payment terms including FOB, EXW, CIF, and more, catering to different customer preferences. The delivery time is approximately 30 days per set, with a supply ability of 100 sets per year.

Minimum order quantity is 1 set, and pricing is to be confirmed based on order specifics. Whether you require Cast Resin Indoor Transformers for industrial applications or specialized electrical systems, this transformer provides a reliable and efficient solution.

Support and Services:

Our Cast Resin Dry Type Transformers are designed for superior performance, safety, and reliability in a wide range of industrial and commercial applications. We offer comprehensive technical support and services to ensure optimal operation and longevity of your transformer.

Technical Support:

Our experienced technical team is available to assist with installation guidance, troubleshooting, and maintenance procedures. We provide detailed product documentation, including installation manuals, wiring diagrams, and operation guidelines to support your technical needs.

Installation Services:

Professional installation services are available to ensure your transformer is set up correctly and safely. Our technicians follow industry best practices and manufacturer specifications to guarantee proper installation and commissioning.

Maintenance and Inspection:

Regular maintenance and inspection services help prevent unexpected failures and extend the life of your transformer. We offer scheduled maintenance programs including cleaning, thermal imaging, electrical testing, and physical inspections to detect and address potential issues early.

Repair and Replacement:

In the event of a malfunction or damage, our repair services aim to restore your transformer to full functionality quickly and efficiently. If repair is not feasible, we offer replacement options tailored to your application requirements.

Training and Consultation:

We provide training sessions for your personnel on safe handling, operation, and maintenance of cast resin dry type transformers. Additionally, our experts are available for consultation to help optimize transformer performance and integration within your electrical system.

Warranty and Quality Assurance:

All our cast resin dry type transformers come with a comprehensive warranty backed by stringent quality control processes. We are committed to delivering products that meet international standards and customer expectations.
