35 KV Electric Oil Immersed Power Transformer Industrial Power Transformer

China 35 KV Electric Oil Immersed Power Transformer Industrial Power Transformer  supplier

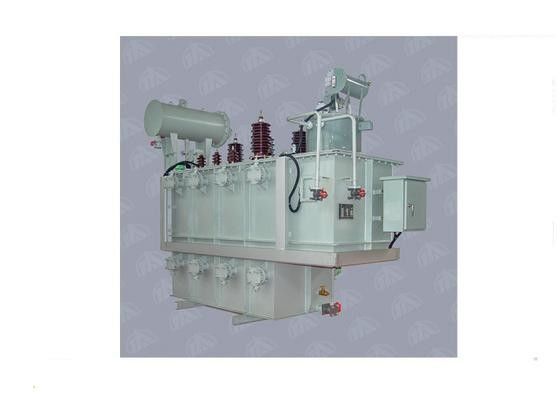

Large Image :  35 KV Electric Oil Immersed Power Transformer Industrial Power Transformer

Product Details:

Place of Origin: China
Brand Name: Tianan Electric
Certification: IEEE,IEC,ISO,CESI
Model Number: S11

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Price: Pending
Packaging Details: Nude
Delivery Time: 60 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 5000 PCS/year
Contact Now
Detailed Product Description
Core: Core-type Transformer Altitude: ≤1, 000m
Environment: Outdoor Insulation Oil: High Quality Grade Mineral Oil

35KV Electric Oil Immersed Power Transformer Industrial Power Transformer

Product Description:

Oil-immersed power transformer product designed and developed on the basis of absorbing the most advanced technology at home and abroad. It features high reliability, low partial discharge, low noise, low loss and high anti-short circuit capability. Its excellent and reliable performance have won customers' as well as experts' reorganizations and appreciations.
Reliable Structure:

1. Spiral loops with longitudinal oil path to produce a better interior cooling effect;
2. Improve the effectual support of the loop's terminal face to strengthen the anti-short circuit electricity capability;
3. New suspending structure and instrument-positioning frames to guarantee that the long distance transport and movement will be more reliable.

Excellent Materials​:

1. Oxygen-free copper lines of lower resistivity, which will become smoother and burr-free after series of additional surface treatment, so the load loss of our transformer is lower and the electric performance is better.
2. High-quality silicon-steel plates which are of lower unit loss, and the no-load of the transformers is lower.
3. High-quality wooden laminating insulation pieces, which won't split or move even under the influence of short circuit.
4. Thoroughly filtrated transformer oil containing less water, gas and impurities, which makes our transformers work better.
5. High-quality rubber sealing material, which can prevent the transformers form aging or leakage.

Service Condition:

Altitude cannot exceed: 1000m
Highest ambient temperature: +40°C
Highest daily average temperature: +30°C
Highest annual average temperature: +20°C
Lowest outdoor temperature: -25°C

Product Advantage:

Compare with other series product, S9 series product reduces the no-load loss by 10%, load loss by 24% and no-load electric current by 46%; as a result, the operating cost will drop by 19%. Improved from S9 series product, S11 series product reduces the no-load loss by 20%; no-load electric current by 70%85%; average temperature by 10K; noise level by 2-4db; and double the products' service life. Even under 20% overloads, it can also work for a long period of time.



35 KV Electric Oil Immersed Power Transformer Industrial Power Transformer
