Low Voltage Circuit Breaker / Moulded Case Circuit Breaker TANM1 TANM2 Series

China Low Voltage Circuit Breaker / Moulded Case Circuit Breaker TANM1 TANM2 Series supplier

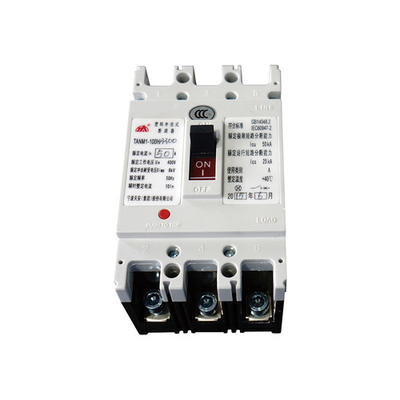

Large Image :  Low Voltage Circuit Breaker / Moulded Case Circuit Breaker TANM1 TANM2 Series

Product Details:

Place of Origin: CHINA
Brand Name: TIANAN
Certification: CCC
Model Number: TANM1,TANM2

Payment & Shipping Terms:

Minimum Order Quantity: 1SETS
Price: Pending
Packaging Details: Wooden case
Delivery Time: 30 work days
Payment Terms: L/C, T/T, D/A, D/P, MoneyGram, Western Union
Supply Ability: 2000SETS/YEAR
Contact Now
Detailed Product Description
Rated Current: 800A Rated Frequency: 50HZ/60HZ
Rated Operating Voltage: 660 (690V) Frame Rated Current: 63A 100A 225A

Low Voltage Circuit Breaker / Moulded Case Circuit Breaker TANM1 TANM2 Series



Overview

TANM1/TANM2 series moulded case circuit breaker (hereinafter referred to as circuit breaker) is suitable in a circuit with AC 50Hz (or 60Hz), rated operating voltage 660 (690V) or below, rated current to 800A, for less frequent transformer, and also can be used for motor protection and less frequent start. The circuit breaker has over load, short circuit and under voltage protection device, which can protect the circuit and power supply from damage.

TANM1 has passed China Compulsory Product Certification——CCC Certification issued by China Quality Certification Center (CQC)



Features

a. Rated current with complete specifications, can meet circuit protection with different capacity

b. Adopt arc extinguish chamber and contact structure with optimal design, improving breaker short circuit breaking capacity, and the flashover distance is short

c. The design of whole products have complete accessories and flexible connection mode

d. Small volume, light weight, compact structure, simple and reliable

e. The enclosure adopts high-strength insulating material, beautiful and reliable

f. Easy installation, can provide various installation types, such as fix type and plug-in type

g. Easy operation, can operate by handle directly, operate by external turning handle and motor operation

h. Conform to international and national standard of IEC60947-2,GB/T14048.2



Parameters

Type TANM1-63 TANM1-100 TANM1-225
S H S H R S H R
Frame rated current
Inm(A)
63 100 225
Rated current In(A) 10,16,20,32,40,50,63 16,20,32,40,
50,63,80,100
100,125,140,160,180,200,225
Rated insulation voltage Ui(V) 500 800 800
Rated working voltage Ue(V) 400 400,690 400,690
Rated limit short circuit breaking capacity
Icu(kA)
AC690V - 10 8 20 - 8 20 -
AC400V 25 50 35 50 85 35 50 85
Rated running short circuit breaking capacity
Ics(kA)
AC690V - 5 4 10 - 4 10 -
AC400V 18 35 22 25 42.5 22 25 42.5
Rated operational voltage Uimp(V) 6000 8000 8000
Dielectric property(V) 2500 3000 3000
Service life Total time 14500 10000
Electrical life 6000 3000
Mechanism life 8500 7000
Flashover distance (mm) 0 0 or<50 0 or<50

Continue

Type TANM1-400 TANM1-630 TANM1-800
S H R S H R S H
Frame rated current Inm(A) 400 630 800
Rated current In(A) 225,250,315,350,400 400,500,630 630,700,800
Rated insulation voltage Ui(V) 800 800 800
Rated operational voltage Ue(V) 400,690 400,690 400,690
Rated limit short circuit breaking capacity Icu(kA) AC690V 10 20 - 10 20 - 20 -
AC400V 50 65 100 50 65 100 75 100
Rated running short circuit breaking capacity Ics(kA) AC690V 5 10 - 5 10 - 10 -
AC400V 25 40 50 25 40 50 50 65
Rated impulse withstand current Uimp(V) 8000 8000 8000
Dielectric property(V) 3000 3000 3000
Service life Total time 6000 5500 3500
Electrical life 2000 1500 1000
Mechanism life 4000 4000 2500
Flashover distance (mm) 0 or<50 0 or <50 0 or<50



Low Voltage Circuit Breaker / Moulded Case Circuit Breaker TANM1 TANM2 Series

Low Voltage Circuit Breaker / Moulded Case Circuit Breaker TANM1 TANM2 Series

Low Voltage Circuit Breaker / Moulded Case Circuit Breaker TANM1 TANM2 Series
