Thermal Magnetic 660V Indoor LV Circuit Breaker Trip Device For Overload Short Circuit Protection

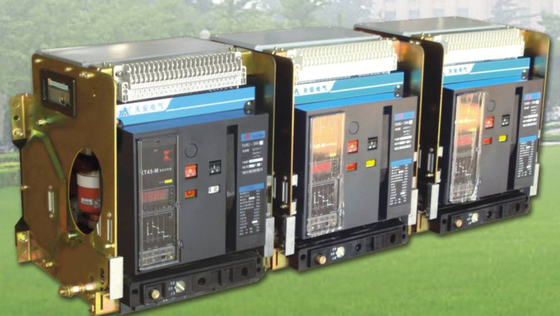

Large Image : Thermal Magnetic 660V Indoor LV Circuit Breaker Trip Device For Overload Short Circuit Protection

Product Details:

Place of Origin:	CHINA
Brand Name:	TIANAN
Certification:	IEC and GB
Model Number:	TANK1

Payment & Shipping Terms:

Minimum Order Quantity:	1SET
Price:	Pending
Packaging Details:	Wooden case
Delivery Time:	30 work days/ unit
Payment Terms:	T/T
Supply Ability:	500 SET/YEAR

Contact Now

Detailed Product Description

Rated Impulse Withstand Voltage:	8000 V	Dielectric Property:	3000 V
Rated Short-time Withstand Current:	50 (AC400V), 40 (AC690) A	Temperature:	-5 ~ 40℃
Application:	Industrial, Commercial, Residential	Protection Degree:	IP3X
Altitude:	＜2000 M	Color:	Grey
Highlight:	Overload Short Circuit Protection Trip Device , Indoor LV Circuit Breaker Trip Device , 660V Indoor LV Circuit Breaker Trip Device

Product Feature :

TANK1 Series Intelligent Universal LV Vacuum Circuit Breaker has features of free maintenance, overload capability, and strong interrupter breaking ability, can achieve true zero arcing. The circuit breaker is suitable for environmental protection, and the service ambient temperature can be -40℃, the 2000 meters of altitude above sea level. Especially the workplace that air circuit breakers isn't suitable for, such as wind power generation, coal, chemical, metallurgical and other explosive industries, It is suitable for distribution in residential area with high security requirement.

Appearance and installation dimensions:

Thermal Magnetic 660V Indoor LV Circuit Breaker Trip Device For Overload Short Circuit Protection 0
