Drawable Ac High Voltage Switchgear Power Distribution With Metal Clad

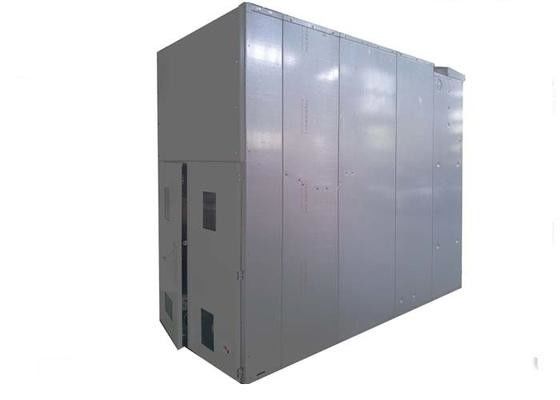

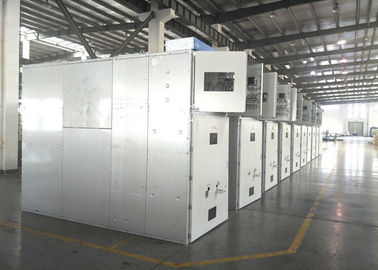

Large Image : Drawable Ac High Voltage Switchgear Power Distribution With Metal Clad

Product Details:

Place of Origin:	CHINA
Brand Name:	Tianan Electric
Certification:	ISO9001:2000 IEC62271:200 CCC VDE
Model Number:	KYN61-40.5

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Pending
Packaging Details:	Wooden Case
Delivery Time:	45work days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	5000sets per year

Contact Now

Detailed Product Description

Rated Current:	630 1250 2000A	Altitude:	Up To 1 000m Above Sea Level
Frequency:	50( 60)HZ	Rated Voltage:	40.5KV
Protection Degree:	IP4X,IP2X	Application:	Power Transmission &distribution
Highlight:	high voltage electrical switchgear , gas insulated switchgear

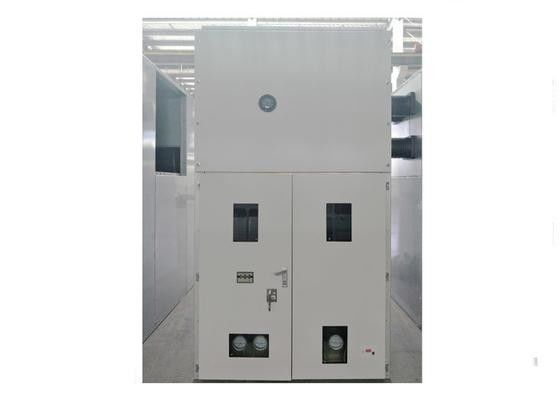

Power Distribution Metal - Clad Drawable AC High Voltage Switchgear

Product description:

KYN61-40.5(Z) Air Insulated Metal-clad Switchgear is suitable for

application at three phases, 50Hz, 40.5kV power distribution system. This product has functions of protection, control and monitoring.

Service condition:

1. Ambient air temperature: -15°C~+40°C.
2. Altitude: ≤1000m.
3. Relative humidity : Daily average≤95%,monthly averange≤90%.
4. Earthquake intensity: ≤magnitude 8.
5. Applicable in the places without corrosive and flammable gas and water vapor.
6. Used in place without frequently intense vibrant.
Note: Customized products are available.

Technical Data:

No.	Name	Unit	Data
1	Rated voltage	kV	40.5
2	Rated current	A	1250, 1600, 2000
3	Rated frequency	Hz	50
4	Rated short time withstand current	kA	20, 25, 31.5
5	Rated peak withstand current	kA	50, 63, 80
6	Rated power frequency withstand voltage	kV	95/1min
7	Rated lightning impulse withstand voltage	kV	185
8	Rated duration of short circuit	S	4
9	The degree of protection		IP3X

Main Technical Data of the Vacuum Circuit Breaker

No.	Name	Unit	Data
1	Rated voltage	kV	40.5
2	Rated frequency	Hz	50
3	Rated power frequency withstand voltage	kV	95/1min
4	Rated lightning impulse withstand voltage	kV	185
5	Rated current	A	1250, 1600, 2000
6	Rated short time withstand current	kA	20, 25, 31.5
7	Rated short circuit breaking current	kA	20, 25, 31.5
8	Rated peak withstand current	kA	50, 63, 80
9	Rated duration of short circuit	S	4
10	Opening time	ms	30≤t≤60
11	Closing time	ms	50≤t≤100
12	Breaking times of the rated short circui breaking current	Cycle	20
13	Mechanical endurance	Cycle	10000

Main Technical Data of Spring Operating Mechanism

Name		Unit	Data
Rated operating voltage	Opening coil	V	DC220/110 AC220/110
	Closing coil
Rated operating current	Opening coil	A	0.96(220V) 1.05(110V)
	Closing coil
Power of energy-stored motor		W	230
Rated voltage of energy-stored motor		V	DC220/110 AC220/110
Duration for storing energy		S	≤12
