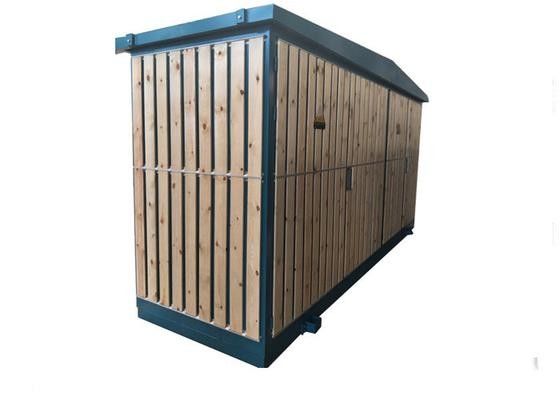

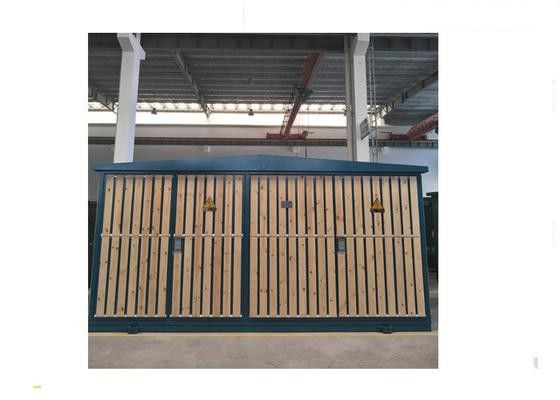

12/24kV Outdoor Ring Main Unit Cable Branch Box with Stainless Steel Shell and 630A Rated Current

Large Image : 12/24kV Outdoor Ring Main Unit Cable Branch Box with Stainless Steel Shell and 630A Rated Current

Product Details:

Place of Origin:	CHINA
Brand Name:	TIANAN ELECTRIC
Certification:	ISO9001:2000
Model Number:	DFT6-12

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Pending
Packaging Details:	Wooden case
Delivery Time:	40 work days/set
Payment Terms:	L/C,T/T,D/P,D/A
Supply Ability:	2000sets per year

Contact Now

Detailed Product Description

Rated Voltage:	12/24KV	Rated Current:	630A
Shell Material:	Stainless Steel	Altitude:	≤1000m
Rated Frequency:	50Hz	Price:	To Be Pending
Highlight:	packaged transformer substation , power distribution substation

Ring Main Unit Cable Branch Box, 12/24kV Outdoor Electric Meter Box

12/24kV Outdoor Ring Main Unit Cable Branch Box - Distribution Metering Box

Product Overview | DFT6-12/24 Series Cable Branch Box

The DFT6-12/24 Series Cable Branch Box is a new generation of outdoor power supply equipment designed for 12kV and 24kV power network cable systems. It is engineered for power acceptance and distribution, providing reliable cable connection, branching, and transfer functions in outdoor environments.

With a compact structure and aesthetically appealing enclosure, this ring main unit (RMU) cable branch box is especially suitable for locations with limited installation area and high environmental requirements, including:

City streets
Residential areas
High-rise buildings
Airports
Wharfs / ports

Key Applications

The DFT6-12/24 series is used for:

Connecting
Shunting / branching
Cable circuit continuation
Transferring cable circuits outdoors

Optional: Wooden board inside the case enclosure - available upon customer request.

Service Conditions (Normal Operating Environment)

This outdoor distribution metering box is designed to operate reliably under the following conditions:

Parameter	Value
Altitude	≤ 1000m above sea level
Ambient temperature	-25°C ~ +40°C
Wind speed	≤ 34 m/s
Regular severe vibration	No

Key Features - DFT6-12/24 Series

Simple and reliable connection - easy installation
Fully insulated and completely sealed structure - maintenance-free, dustproof, and waterproof
Low initial investment - saves switchgear and cable costs
Small footprint - easy integration with surrounding environment

Main Technical Parameters - FN26-12/24 SF6 Load Switch

Parameter	Unit	12kV Value	24kV Value
Rated Voltage	kV	12	24
Rated Current	A	630	630
Rated Short-time Withstand Current	kA/s	25/2	25/2
Rated Peak Withstand Current	kA	63	63
Rated Short-time Making Current	kA/s	50/2	63/2
1min Power Frequency Withstand Voltage	kV	42	65
Lightning Impulse Withstand Voltage	kV	75	125
Mechanical Endurance	times	10,000	10,000
SF6 Gas Pressure (20°C gauge pressure)	MPa	0.04	0.04
Leakage Rate / Year	-	≤1%	≤1%

Main Technical Parameters - Cable Terminal

Parameter	Unit	12kV Value	24kV Value
Rated Voltage	kV	12	24
Rated Current	A	≤630	≤630
Applicable Cable Cross Section	mm²	25 - 400	35 - 400
Connection Point Resistance	µΩ	40	45
Partial Discharge	Pc/kV	≤10 / 13	≤10 / 21.5
Rated Thermal Stability Voltage	kA/s	20/3	25/2
Rated Dynamic Voltage	kA	50	63
1min Power Frequency Withstand Voltage	kV	42	65
Lightning Impulse Withstand Voltage	kV	75	125

Commonly Used Cable Conductive Cross-Sectional Areas (mm²)

35, 50, 70, 95, 120, 150, 185, 240, 300, 400, and others as required.
