Rated Voltage: 10kV12kv Capacity: 30-1250kVA
Breaking Current: 630A Frequency: 50Hz
Mechanical: 2000 Times Typical Products: Zbw

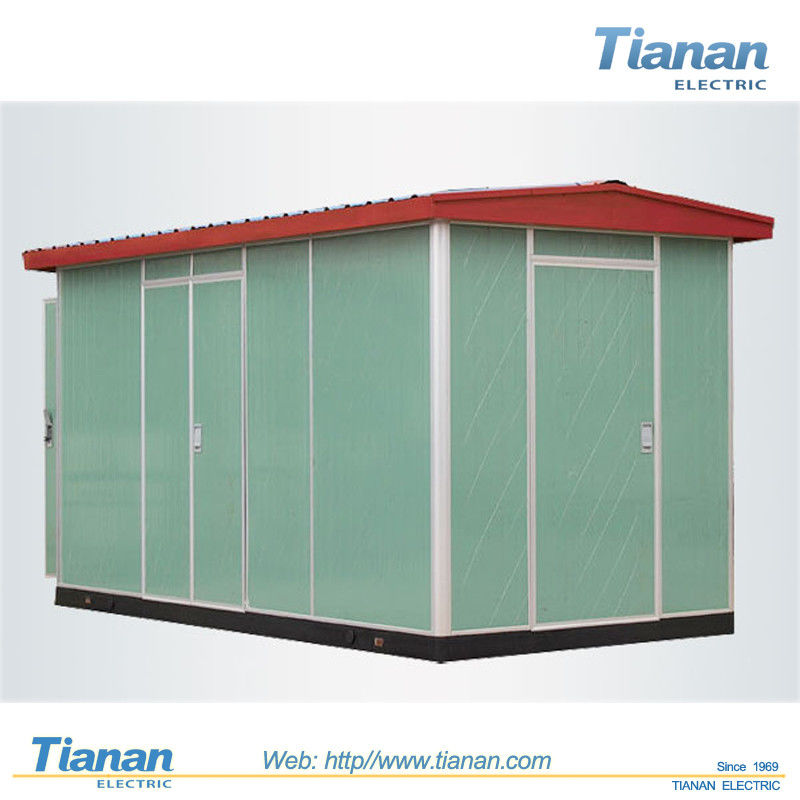

12kv Zbw series Prefabricated Compact Transformer Substation with 3 Phase Transformers​



Service condition


1. Altitude: ≤ 1000m (above sea level)


. Ambient temperature: Max. 40C Min. -25C
>> Max. Monthly average temperature: ≤ 35C
>> Max. Yearly average temperature: ≤ 25C



3. Relative humidity: Daily average value≤ 95%, monthly average value≤ 90%


4. Max. Daily difference in temperature: 25C


5. Sunlight intensity: 0.1W/CM2 (wind speed 0.5M/S);


6. Outdoor wind speed: ≤ 35m/s;


7. Pollution grade: Grade III;


8. Rain proof grade: Grade 3;


9. The gradient on installation spot shall be not more than 3° ;


10. Ability of anti-earthquake: Horizontal acceleration of ground surface is 0.2g
Vertical acceleration of ground surface is 0.1g;


11. Installation spot: The spot should has no fire/explosion danger/serious pollution/chemical
corrosion
and exquisite shake.





Technical parameters



  Items Unit Parameters
High Voltage Part Rated voltage kV 12
Rated frequency Hz 50
Rated current of main busbar A 630
1mm power frequency withstand voltage (to earth and between phases/disconnecting fracture) kV 42/48
Lightning impulse withstand voltage (to earth and between phases/disconnecting fracture) kV 75/85
Rated short time withstand current kA/s 25/2
Rated peak withstand current kA 63
Rated short time making current kA 50
Rated transfer current A 1500
Breaking current of fuse kA 31.5 40
Low Voltage Part Rated voltage V 400
Rated current of main circuit A 100-4000
Rated limiting short circuit breaking ability kA 80
Rated operating short circuit breaking ability kA 50 (65)
Rated short time withstand current kA/1s 50 (65)
Branch current,compensating capacity According to requirements of users
Transformer Rated capacity kVA 30-2000
Impedance voltage % 4 4.5
Tapping range % ±2×2.5 ±5
Connection symbol Y, yn0 D, yn11
Case Protection level of enclosure IP23
Sound level dB ≤50

Note: The parameters are taken from HXGN26-12 High Voltage Switchgear, TANW1 Series Intelligent Circuit Breaker and S9-M Oil Type Transformer which are produced by our company.
