Electrical Medium Voltage Switchgear Separate Type Metal Enclosed For Indoor

China Electrical  Medium Voltage Switchgear Separate Type Metal Enclosed For Indoor supplier
Electrical  Medium Voltage Switchgear Separate Type Metal Enclosed For Indoor supplier Electrical  Medium Voltage Switchgear Separate Type Metal Enclosed For Indoor supplier Electrical  Medium Voltage Switchgear Separate Type Metal Enclosed For Indoor supplier

Large Image :  Electrical Medium Voltage Switchgear Separate Type Metal Enclosed For Indoor

Product Details:

Place of Origin: CHINA
Brand Name: Tianan Electric
Certification: GB3906,IEC298 (1990)
Model Number: KYN28A-12

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Price: Pending
Packaging Details: wooden case
Delivery Time: 45work days
Payment Terms: L/C, T/T, D/P, D/A, MoneyGram, Western Union
Supply Ability: 5000sets per year
Contact Now
Detailed Product Description
Earthquake Intensity: ≤Magnitude 8 Rated Voltage: 7.2KV,12kV
Rated Transfer Current: Up To 4000A Breaking Current: 31.5KA

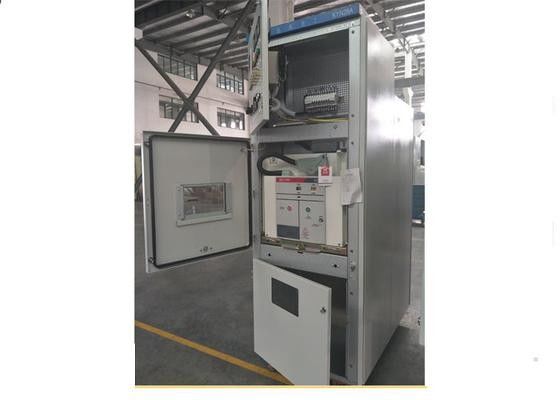

Metal-enclosed Separate Type Distribution Cabinet , Indoor Electrical Switchgear



Overview

KYN28A-12 Metal-enclosed Separate Type Switch Facilities is a In-door Power Distribution System of AC 50Hz, Three Phase, with Single Busbar or Double Busbar, for the use of Connecting and Distributing 3-10Kv Net-Power, and to protect, control and monitor the Electric Circuit.

Working Conditions:


a. The Ambient temperature upper limit and lower limit are respectively +40°C and -40°C; (allowing storage and transportation at -30°C);
b. Altitude is not more than 1000m;
c. Relative humidity: daily average value should not be more than 95%, while monthly average value should not be more than 90% (+25°C);
d. Seismic intensity should be not more than 8°;
e. Places without fire, explosion risk, serious pollution, chemical corrosion and violent vibration.



Parameters

Item(Unit) Data
Rated Voltage(kV) 3.6~12
Rated Current(A) ≤4000
Rated Frequency(Hz) 50
Rated Short-time Power Frequency Withstand Voltage(kV) 42
Rated Lightning Impulse Withstand Voltage (kV) 75
Rated Peak Withstand Current(kA) ≤100
4S Rated Short-time Withstand Current(kA) ≤40
Standard GB3906
Protect Degree Out Shell IP4X, Cubicle and Door Open IP2X
