Indoor Gas - Insulated Medium Voltage Switchgear 10kV GIS Ring Main Unit Cabinet

Good quality Mobile Transformer Substation for sales
Good quality Mobile Transformer Substation for sales
I'm Online Chat Now

Indoor Gas - Insulated Medium Voltage Switchgear 10kV GIS Ring Main Unit Cabinet

China Indoor Gas - Insulated Medium Voltage Switchgear 10kV GIS Ring Main Unit Cabinet supplier
Indoor Gas - Insulated Medium Voltage Switchgear 10kV GIS Ring Main Unit Cabinet supplier Indoor Gas - Insulated Medium Voltage Switchgear 10kV GIS Ring Main Unit Cabinet supplier Indoor Gas - Insulated Medium Voltage Switchgear 10kV GIS Ring Main Unit Cabinet supplier

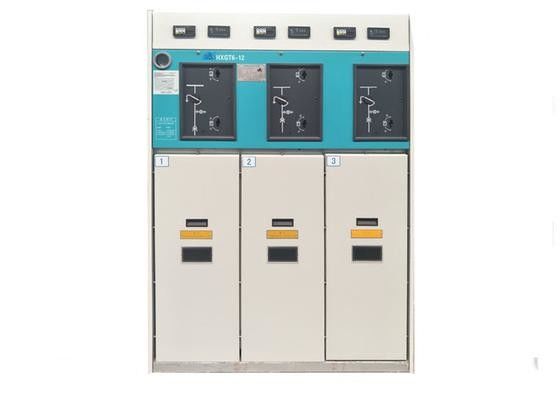

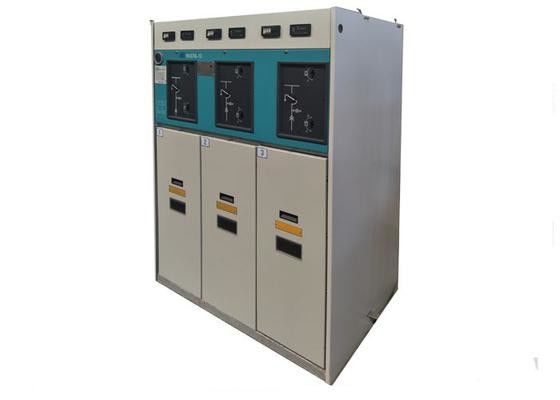

Large Image :  Indoor Gas - Insulated Medium Voltage Switchgear 10kV GIS Ring Main Unit Cabinet

Product Details:

Place of Origin: CHINA
Brand Name: Tianan Electric
Certification: ISO9001:2000, VDE, CCC, TUV
Model Number: XGN58(HXGT6A)-12/24

Payment & Shipping Terms:

Minimum Order Quantity: 1unit
Price: Pending
Packaging Details: wooden cases
Delivery Time: 45 work days
Payment Terms: L/C, T/T, Western Union, D/A, D/P, MoneyGram
Supply Ability: 2000units per year
Contact Now
Detailed Product Description
Size: 3 Uint Specification: 12kV/24KV
Equipment: Switch-fuse Combinations Application: Industrial And Commercial Zones Or Rural Area

Indoor 10kV MV GIS Ring Main Unit Switchgear , Gas - Insulated Safering Cabinet



General
XGN58(HXGT6A)-12/24 Switchgear(RMU) is a kind of composite apparatus which seals all themain circuits switches in a metal enclosure and uses SF6 gas as arc-extinguishing and insulation medium. It is suitable for RMU and double radiation power supply in 12/24kV power supply circuit. The product is especially suitable for industrial and commercial zones or rural area, which have high-density power supply load and use cable feed network. Meanwhile, the RMU has the advantages of safe operation, no weather influence, easy installation, lttemaintenance and space saving, which is suitable to be installed in box-type substation. TheRMU can be flexibly combined by the extension of bus bars.

Service Conditions
1. Altitude: Not more than 3000m above the sea level;
2. Ambient temperature: Max: +40C, Min: -40"C;
3. Relative humidity: Daily average is not more than95%, monthlyaverage is not more than 90%;
4. No apparent pollution of corrosive or combustible gas around,Seismic intensity is not more than eight class.
5. No regular violent vibration, Seismic intensity is not more thaneight class;
Note: if deviation of normal service conditions occurs, the customer can negotiate with the manufacturer.

Technical characteristics
► Equipped with load switch, load swithfuse composite apparatus, circuit breaker function unit, its function is very complete.
►Small volume, light weight, minimum volume for one single is 350*820* 1500(mm).
►Easy operation, safe use, convenient maintenance, the
switchgear can be used for 30 years without maintenance.
►RMU is designed to be omniseal, without exposed live part and can run for a long term in the adverse environment.
Electrical parameter of switchgear
No. Item unit Parameter
1 Rated voltage KV 12,24
2 Rated bus bar current A 630,1250
3 Rated current A 630
4 Rated frequency 1min HZ 50/60
5 Rated short-time withstand current KA 20/4,25/2
6 Rated peak withstand current KA 50,63
7 Rated short-circuit making current KA 50,63
8 Rated Current of load switchgear with fuse wire A 100
9

Rated short-circuit breaking current



fuse KA 31.5
Circuit breaker KA 20,25
10 1min Power
frequency withstand
voltage

(phase to phase/ phase-to-ground/chasm)



KV 42/48,65/79
lightning impulse
withstand voltage
(peak value)
(phase to phase/ phase-to-ground) (phase to phase/ phase-to-ground KV 75/85,125/145
  Circuit resistance Load switchgear μΩ 130
Composite apparatus cabinet(not include fuse resistance) μΩ 250
  Circuit breaker cabinet SF6 μΩ 140
11 SF6 Rated Gas pressure
(20ºC gauge pressure)
Mpa 0.04
12 SF6 Gas annual Leakage rate   ≤0.2%
13 Protection grade (gas filled enclosure)   IP67

Contact Details
Ningbo Tianan (Group) Co.,Ltd.

Contact Person: admin

Send your inquiry directly to us (0 / 3000)
