Metal - clad Gis Switchgear Dual Power Source Automatic Cut - in Equipment

China Metal - clad Gis Switchgear Dual Power Source Automatic Cut - in Equipment supplier
Metal - clad Gis Switchgear Dual Power Source Automatic Cut - in Equipment supplier Metal - clad Gis Switchgear Dual Power Source Automatic Cut - in Equipment supplier

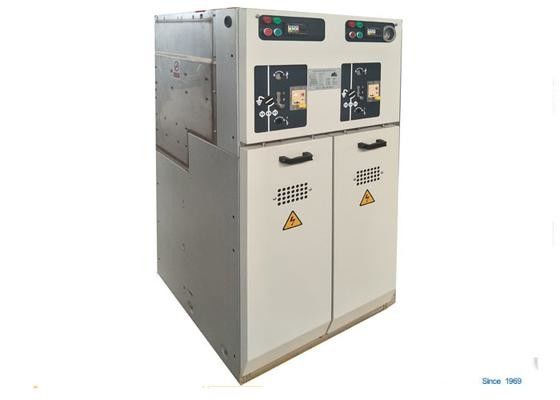

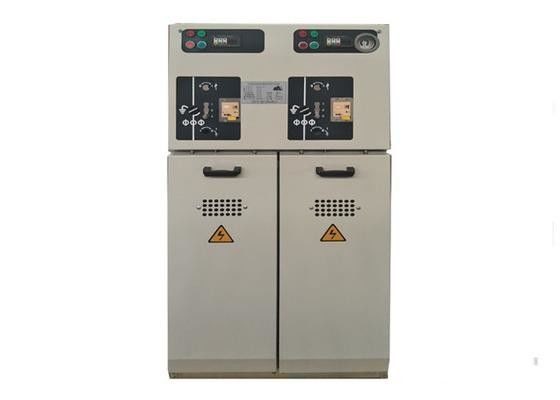

Large Image :  Metal - clad Gis Switchgear Dual Power Source Automatic Cut - in Equipment

Product Details:

Place of Origin: CHINA
Brand Name: Tianan Electric
Model Number: HXGT6A-12ST

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Price: Pending
Packaging Details: wooden cases
Delivery Time: 45 work days
Supply Ability: 1000units per year
Contact Now
Detailed Product Description
Rated Current: 630A Rated Voltage: 12KV
Protection Grade Of Gas Tank: IP67 Rated Operating Pressure: 0.04MPa

Dual Power Source Automatic Cut - in Equipment Gas Insulated Metal - clad Switchgear



Overview:
In order to meet the increasing demand for reliability of power supply , we have developed a new generation of dual power supply Automatic Cut - in Equipment . It can make intelligent judgement according to the state and load state of the main power supply, and automatically switch it so that realize the reconfiguration of distribution network and improve the reliability of power supply.



Product features:
1. Reliable mechanical design ensures that the two power supply will not be closed, and has very high safety and reliability.
2. It can automatically select the main power supply and standby power supply, and automatically switch to the standby power supply when the main power supply is out of power or under pressure.
3. The state of the main power supply and the load condition can be judged intelligently, and the best switching time can be selected to switch the power supply to improve the stability of the system operation.
4.The PT sampling power interface can be reserved in the gas tank, and the power supply of the operation mechanism can be powered by two sides of the PT.
5. fully insulated and fully enclosed structure, high safety and complete operation.



Technical Parameters

S/N Item Unit Parameters
1 Rated Voltage kV 12
2 Rated Frequency Hz 50
3 Rated Main Circuit  Current  A 630
4
Rated Main Circuit Current
A 630
5 Rated short circuit Making Current(Peak) kA 50
6 Rated short time withstand Current(4s) KA 20
7 Rated peak withstand curent KA 50
8 1min Power frequency withstand voltage

(phase to phase/ phase-to-ground/chasm)

kA 42/42/48
9 lightning impulse withstand voltage
(phase to phase/ phase-to-ground/chasm)
KA 75/75/85
10 Mechanical life Times 5000
