Indoor 35kv Ring Main Unit Switchgear , Sf6 Gas Insulated Switchgear Gis

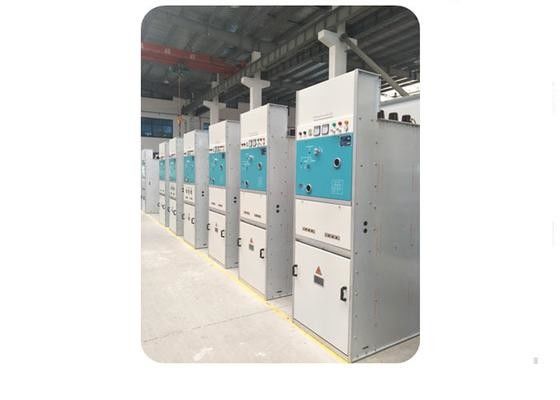

Large Image : Indoor 35kv Ring Main Unit Switchgear , Sf6 Gas Insulated Switchgear Gis

Product Details:

Place of Origin:	China
Brand Name:	Tianan Electric
Certification:	ISO9001:2000
Model Number:	HXGT10-40.5F

Payment & Shipping Terms:

Minimum Order Quantity:	1 unit
Price:	Pending
Packaging Details:	Wooden Case
Delivery Time:	45 work days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	5000 PCS/year

Contact Now

Detailed Product Description

Rated Current (LBS):

630 A

Typical Products:

Ring Main Unit

Rated Voltage:

36(38)KV,40.5KV

Altitude:

Up To 2000m

Highlight:

high voltage electrical switchgear

gas insulated switchgear

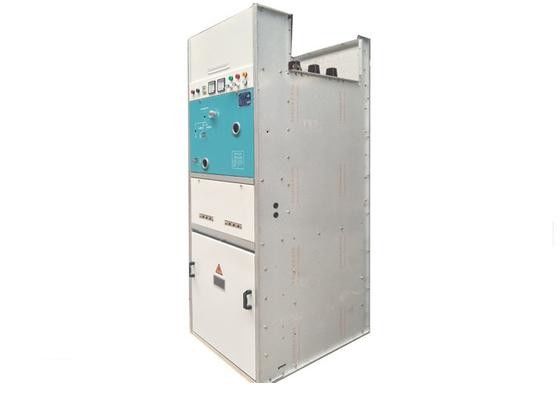

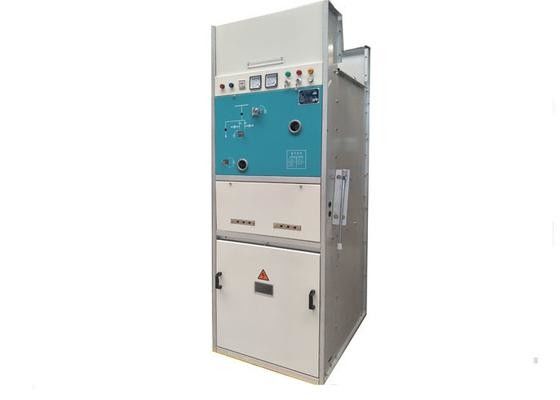

Indoor 35kV RMU / Ring Main Unit / SF6 Gas insulated Switchgear GIS
NINGBO TIANAN (GROUP) CO., LTD.

Overview:
The indoor HV SF6 RMU are used in high voltage distribution networks. They offer a sealed stainless steel tank which contains all the live components and switching functions. The transformer is protected either by a switch fuse combination or a vacuum circuit breaker.

Operating Conditions:

	Description	Requirement
1	Altitude(installed indoors)	≤2000m
2	Ambient air temperature	-5℃ ~ +40℃
3	Monthly average relative humidity	≤90%(+25℃)
4	Anti-seismic intensity	≤8°
5	Maximum daily temperature difference	< 25℃

Parameter:

Rated voltage	kV	33~40.5KV
Rated short time power frequency withstand voltage(1min)	kV	95
Rated lighting impulse withstand voltage	kV	185
Rated current(LBS)	A	630
Rated short circuit breaking current	kA	50
Rated peak value withstand current(LBS)	kA	50
