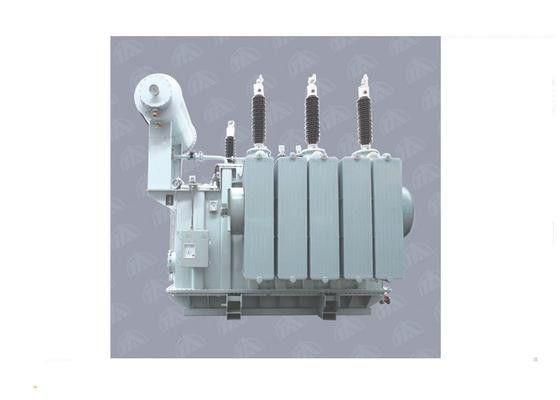

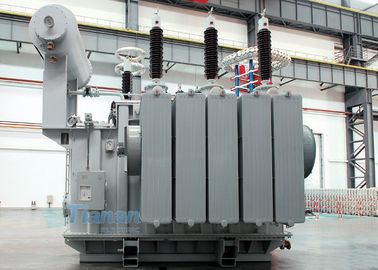

High Strength Three Phase Power Transformers Oil Immersed Type 110kv

110KV Power transformer Three phase Electric Oil - immersed Power Transformer

General:

Adopting advanced and strictly technology, the 110kV's transformer that we develops to produce index all achieves the advanced standard of international by way of constantly exploring and make perfect. The product possesses characteristics such as the low loss, low noise and low power in part and the resisted short circuit ability is strong etc. The product breed is diversified and the model specifications complete. It can be installed and used outdoor or indoor, it is very ideal equipment in the distriubiton network both for rural and urban area.

Product Features:

1. Product standards
GB1094.1 ~ 2-1996
GB1094.3, 5-1985
GB/T6451-1995
IEC76

2. Low loss
- Optimization of electromagnetic calculations, using combined technology of electrical shielding and magnetic circuit, effectively controlled leakage, so as to reduce the load loss and to avoid partial overheating.
- Use high quality cold-rolled lattice orientation high permeability silicon steel, to reduce the load loss, no-load current.
- Core all-helical stacking with STEP joints, and advanced stacking process, reduced the load loss, load current and electromagnetic noise.

3. Low partial discharge
To ensure the safe and steady operation of the transformer under continuous rated voltage, our Electric Power Research Institute conducted a lot of research to develop a more reasonable insulation structure, plus the strict technology specifications and technical staff experience, ensured the low partial discharge of our products.

4. High strength
- Adoption of six-side method positioning for the body, meets the transportation requirements of, horizontal acceleration not more than 0.3G, vertical direction not greater than 0.15g.
- Upper and Lower Clamps and the formation of tight fixed side beam frame.
- The tank can withstand the vacuum test and required positive pressure test.

5. Low Noise
- Use of high-quality core silicon steel;
- Core STEP stepping joints;
- Reduction of the flux density, despite of the increase of cost;
- Use low-noise fan as the air cooling equipment;
- Increase the shock absorbing measures;
- Well interior-protection, to avoid direct rigid contact of the body and tank;

6. Maintenance-free
Our company adopts the domestic leading technology, use fully enclosed structure for the transformer tank, ensuring product life of 30 years, and maintenance-free operation.

Service Condition:

• Altitude cannot exceed: 1000m
• Highest ambient temperature: +40°C
• Highest daily average temperature: +30°C
• Highest annual average temperature: +20°C
• Lowest outdoor temperature: -25°C
