Product Details:
Payment & Shipping Terms:
|
| Rated Voltage: | 110kv 126kv 132kv 145 Kv | Frequency: | AC 50HZ |
|---|---|---|---|
| Suitable Altitude: | 1000m | Suitable Temperature: | -45℃ ~ +40℃ |
| Function: | Isolating | Rated Current: | 1600A2500A |
| Highlight: | isolator disconnector,hv disconnect switch |
||

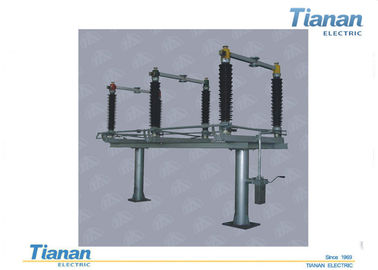

GW4 Three - Phase Outdoor AC HV Disconnecting Switch 126KV with Earthing Switch
GW4 series outdoor AC HV disconnecting switch is an outdoor HV switch of three-phase AC50 Hz, it is suitable for power system of rated voltage 35kV, is used for disconnecting no-load change over in HV circuits and disconnecting busbar will be checked , breaker and HV circuit with power.
Technical parameters:
| Item |
Type |
Rated voltage(KV) | Rated current(A) | Isolating switch | Grounding switch | Grounding switch | ||||
| Rated peak withstand current(KA) | Rated time withstand current(KA) | Rated peak withstand current(KA) | Rated time withstand current(KA) | |||||||
|
General type |
GW4 |
15 | 400-1600 |
40
|
20(4s) |
40 |
40 |
20(4s) |
31.5(4s) |
Ungrounded; Grounding; Double grounding |
| 20 | 400-2000 |
31.5(4s) |
||||||||
| 40.5 |
630-2500
|
|||||||||
| 66 | ||||||||||
| 126 | ||||||||||
| 138 | ||||||||||
