950/1050 kV Voltage Disconnect Switch for Altitude ≤2000m

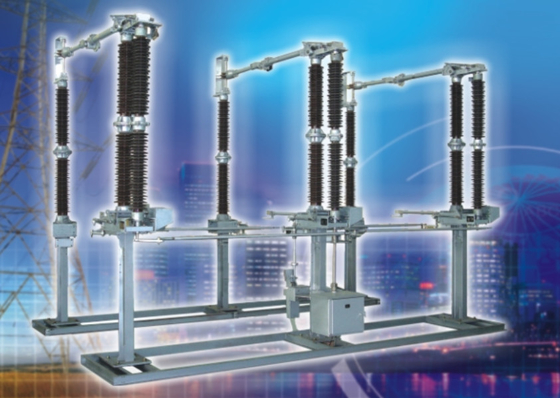

Large Image : 950/1050 kV Voltage Disconnect Switch for Altitude ≤2000m

Product Details:

Place of Origin:	CHINA
Brand Name:	TIANAN
Certification:	IEC&GB
Model Number:	GW23(GT9)-252D

Payment & Shipping Terms:

Minimum Order Quantity:	1 SET
Price:	Pending
Packaging Details:	Naked
Delivery Time:	30 work days/ unit
Payment Terms:	L/C, T/T,
Supply Ability:	500 SETS/YEAR

Contact Now

Detailed Product Description

Mechanical Lifespan Of Isolating Switches And Grounding Switches:	2000 Times	Peak Withstand Current (peak) Of Isolating Switch And Grounding Knife:	125 KA
Power Frequency Withstand Voltage At 1 Min (effective Value):	395/460 KV	Isolation Switch And Grounding Knife 3S Short-time Withstand Current (effective Value):	50 KA
Wind Presssure:	≤700Pa（Equivalent To A Wind Speed Of 34m/s）	Rated Volatge:	252 KV
Lightning Impulse Withstand Voltage (1.2/50 μ S):	950/1050 KV	Isolation Switch Main Circuit Resistance:	≤130 μΩ
Highlight:	1050 kV Disconnect Switch , 950 kV Disconnect Switch , 2000m Disconnect Switch

Technical Parameters:

Elevated-voltage Diverter
High-voltage Isolating Switch
Maximum-voltage Interrupter
Peak withstand current (peak) of isolating switch and grounding knife	125 KA
Wind pressure	≤700Pa(Equivalent To A Wind Speed Of 34m/s)
Power frequency withstand voltage at 1 min (effective value)	395/460 KV
Lightning impulse withstand voltage (1.2/50 μ S)	950/1050 KV
Isolation switch main circuit resistance	≤130 μΩ
Creepage distance of insulators	16mm/kV,20mm/kV,25mm/kV
Rated current	2500 A
Ambient temperature	-25 ~ 40℃
Isolation switch and grounding knife 3S short-time withstand current (effective value)	50 KA
Mechanical lifespan of isolating switches and grounding switches	2000 Times

Support and Services:

Our High Voltage Disconnect Switch product comes with comprehensive technical support and services to ensure optimal operation and performance. Our team of experts can provide assistance with installation, commissioning, and troubleshooting, as well as regular maintenance and repairs.

We also offer customized training programs for your staff to ensure safe and efficient operation of the High Voltage Disconnect Switch. In addition, our team can provide on-site support for critical situations to minimize downtime and ensure uninterrupted power supply.

Our commitment to quality extends beyond the sale of our products. We offer ongoing support to ensure customer satisfaction and provide technical assistance throughout the lifespan of the High Voltage Disconnect Switch.
