Mineral Oil Immersed Transformer Class A Insulation System

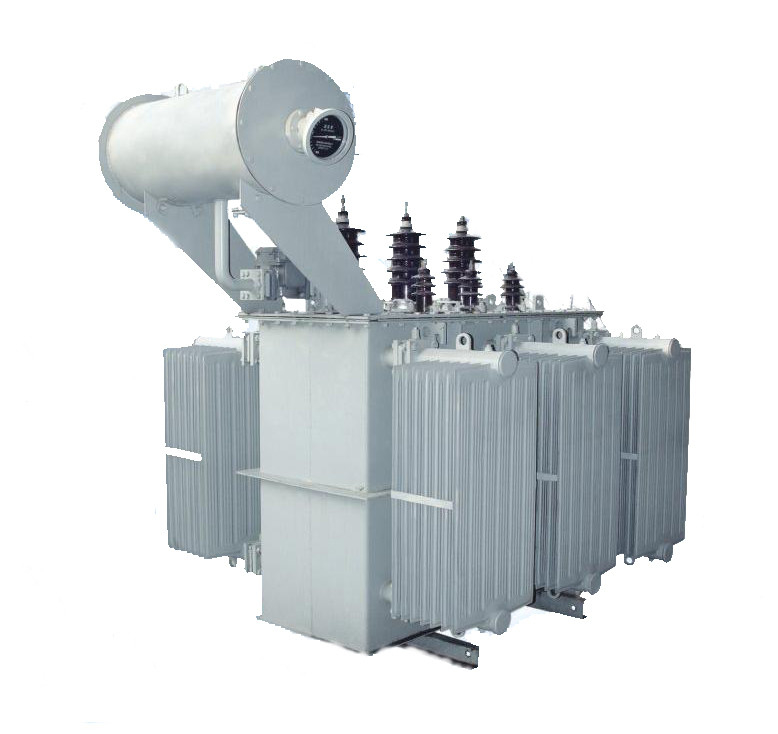

Large Image : Mineral Oil Immersed Transformer Class A Insulation System

Product Details:

Place of Origin:	CHINA
Brand Name:	Oil immersed power transformer
Certification:	GB, IEC
Model Number:	12, 24, 36kV Transformer

Payment & Shipping Terms:

Minimum Order Quantity:	1 SET
Price:	Pending
Packaging Details:	Naked
Delivery Time:	45 work days/set
Supply Ability:	1000 SETS/YEAR

Contact Now

Detailed Product Description

High Voltage:	11kV	Altitude:	Up To 1,000m Above Sea Level
Insulation Fluid:	Mineral Oil(No PCB)	Insulation Level:	Class A
Type:	Three Phase	Frequency:	50Hz ,60Hz
Highlight:	Mineral Oil Immersed Transformer , Class A Insulation System Transformer

Features:

Product Name: Oil Immersed Power Transformer
Capacity Range: 50-50000KVA
Environment: Outdoor
Altitude: Up To 1,000m Above Sea Level
High Voltage: 11kV
Insulation Level: Class A

Keywords: Oil Immersed Distribution Transformer, Oil Immersed Transformer, Oil Immersed Transformer

Technical Parameters:

Product Attribute	Value
Material	Cu/Cu, Al/Al
High Voltage	11kV
Frequency	50Hz, 60Hz
Altitude	Up To 1,000m Above Sea Level
Capacity Range	50-50000KVA
Secondary Voltage	415V, 400V, etc.
Environment	Outdoor
Insulation Fluid	Mineral Oil (No PCB)
Type	Single Phase, Three Phase
Insulation Level	Class A

Support and Services:

The Oil Immersed Power Transformer product technical support and services include:

- Installation and commissioning support

- Maintenance and repair services

- Technical troubleshooting and fault analysis

- Upgrades and retrofits

- Training and education programs

- Spare parts and accessories

Tag:

oil type transformer,

power transmission transformer,

three phase transformer
