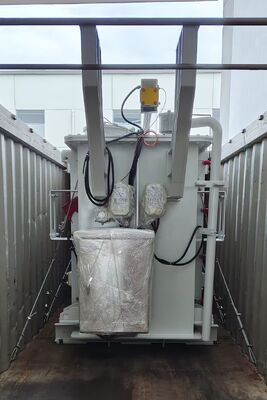

3 Phase Oil Immersed Power Transformer Rated Capacity 12500KVA Tapping Range Plus Minus 2 Times 2.5 Percent Ensuring Electrical Distribution

Product Description:

The Oil Immersed Power Transformer is a highly efficient and reliable piece of electrical equipment designed to meet the demanding requirements of modern power distribution systems. With a rated capacity of 12500KVA and a rated voltage of 67/13.2 KV, this transformer is engineered to provide stable and consistent voltage transformation in various industrial, commercial, and utility applications. Its robust design ensures optimal performance under different operating conditions, making it a preferred choice for power distribution networks.

One of the standout features of this Oil Immersed Power Transformer is its advanced cooling method, known as ONAF (Oil Natural Air Forced). This cooling technique uses natural circulation of oil inside the transformer tank combined with forced air cooling on the radiator surfaces. The ONAF cooling system significantly enhances the transformer's ability to dissipate heat, thereby improving its thermal efficiency and extending its operational lifespan. This method is particularly effective in maintaining the transformer's temperature within safe limits, even under heavy load conditions, ensuring safe and uninterrupted power supply.

The transformer is designed as a three-phase unit, which is essential for most power distribution systems that require balanced and efficient power transfer. The three-phase configuration allows for smoother operation and better handling of electrical loads, reducing losses and increasing overall system reliability. This makes the Oil Immersed Transformer suitable for a wide range of applications, from industrial plants to large commercial complexes and utility substations.

Humidity levels can have a significant impact on the performance and longevity of transformers. The Oil Immersed Power Transformer is optimized to operate efficiently at a humidity level of 50%, which is typical for many geographic locations. The oil immersion provides excellent insulation and moisture protection, preventing the ingress of moisture into the winding and core materials. This protection is crucial in maintaining dielectric strength and preventing insulation failure, which can lead to costly downtime and repairs.

Oil Immersed Distribution Transformer technology has been proven over decades to offer superior insulation, cooling, and protection compared to dry-type transformers. The mineral oil used in the transformer not only serves as an insulating medium but also acts as a coolant, absorbing the heat generated by the electrical currents and dissipating it through the cooling system. This dual function of the oil enhances the transformer's efficiency and reliability, making it suitable for high-voltage and high-capacity applications.

Additionally, the Oil Immersed Transformer is constructed with high-quality materials and adheres to stringent manufacturing standards to ensure durability and long service life. The transformer's tank is designed to withstand mechanical stresses and environmental factors, including temperature fluctuations and physical impacts. The use of high-grade insulation paper and copper windings further contributes to the transformer's efficiency and thermal stability.

Maintenance of the Oil Immersed Power Transformer is straightforward due to its design, which allows easy access to key components for inspection and servicing. Regular maintenance ensures that the transformer continues to operate at peak performance and minimizes the risk of unexpected failures. The oil can be periodically tested and filtered to maintain its insulating properties and cooling effectiveness.

In summary, the Oil Immersed Power Transformer with a rated capacity of 12500KVA, rated voltage of 67/13.2 KV, and ONAF cooling method is an excellent solution for reliable and efficient power distribution. Its three-phase design, optimized for 50% humidity environments, along with the superior insulating and cooling properties of oil immersion, makes it an ideal choice for a wide range of applications. Whether used in utility substations, industrial facilities, or commercial buildings, this Oil Immersed Distribution Transformer provides dependable performance, enhanced safety, and long service life, ensuring that your power distribution needs are met with excellence.

Features:

• Product Name: Oil Immersed Power Transformer
• Type: Oil Immersed Distribution Transformer
• Oil Temperature: 32℃
• Connection Group: Dyn1
• Rated Capacity: 12500 KVA
• Breakdown Voltage: 65.2 kV
• Tapping Range: ±2x2.5%
• Reliable performance as an Oil Immersed Transformer
• Designed for efficient power distribution as an Oil Immersed Distribution Transformer

Technical Parameters:

Applications:

The Oil Immersed Transformer, model SF-12500/67, is a high-performance electrical device designed for efficient power distribution and voltage regulation. Manufactured in China and certified under GB standards, this transformer is built to meet stringent quality and safety requirements. With a rated voltage of 67/13.2 KV and a breakdown voltage of 65.2kV, it ensures reliable operation in various electrical networks. The product features a connection group of Dyn1 and operates optimally at an oil temperature of 32℃, with a humidity tolerance of 50%. Its robust construction is complemented by secure packaging on wooden pallets, ensuring safe transportation and delivery.

The Oil Immersed Distribution Transformer is widely used in diverse application occasions and scenarios. It is ideal for industrial facilities, substations, and commercial complexes where stable and efficient power distribution is critical. This transformer is particularly suited for environments requiring high voltage regulation and dependable performance under fluctuating load conditions. Its oil-immersed design provides excellent insulation and cooling, making it suitable for both indoor and outdoor installations, even in areas with moderate humidity levels.

In urban and rural power grids, the Oil Immersed Distribution Transformer plays a vital role in stepping down high transmission voltages to usable levels for residential and commercial consumers. It is commonly deployed in electricity distribution substations to ensure uninterrupted power supply and to maintain voltage stability. Additionally, this transformer is essential in renewable energy applications, such as solar and wind power plants, where it helps integrate generated power into the main grid efficiently.

Maintenance-intensive scenarios also benefit from the Oil Immersed Transformer’s durability and reliability. Its oil temperature rating of 32℃ allows it to operate safely under normal environmental conditions, while the wooden pallet packaging facilitates easy handling during installation and replacement. This transformer’s design supports long-term operation with minimal downtime, making it a preferred choice for utility companies and large-scale industrial users.

Overall, the Oil Immersed Distribution Transformer SF-12500/67 is a versatile and dependable solution for a wide range of power distribution needs. Its advanced specifications, including high rated voltage and robust insulation properties, make it suitable for critical applications in power generation, transmission, and distribution networks globally.

Customization:

Our Oil Immersed Transformer customization services are designed to meet your specific requirements with precision and reliability. The Oil-immersed transformer, model number SF-12500/67, manufactured in CHINA, adheres to the GB certification and IEC60076 standards, ensuring top quality and safety.

We offer tailored options for the Oil Immersed Transformer including rated voltage configurations of 67/13.2 KV, connection group Dyn1, and a breakdown voltage of 65.2kV. The transformer is designed to operate efficiently at an oil temperature of 32℃, providing stable performance under various conditions.

Packaging is customized with sturdy wooden pallets to ensure secure delivery. Choose our Oil Immersed Transformer customization services for a product that perfectly fits your operational needs and complies with international standards.

Support and Services:

Our Oil Immersed Power Transformers are engineered for optimal performance and reliability in various electrical power applications. To ensure the longevity and efficient operation of your transformer, we provide comprehensive technical support and services tailored to meet your specific needs.

Our technical support team is available to assist with installation guidance, operational troubleshooting, and maintenance best practices. We offer detailed documentation, including user manuals, installation guides, and maintenance schedules to help you maximize the lifespan of your transformer.

Regular maintenance services include oil testing and replacement, insulation resistance testing, and thorough inspections to identify any potential issues before they affect performance. Our experts can also perform diagnostic testing and provide recommendations for repairs or upgrades.

In addition to routine maintenance, we offer refurbishment and retrofitting services to enhance the capacity and efficiency of your existing transformers. Our service engineers are equipped to handle on-site repairs and emergency support to minimize downtime.

We are committed to delivering high-quality support and ensuring your Oil Immersed Power Transformer operates safely and efficiently throughout its service life.
