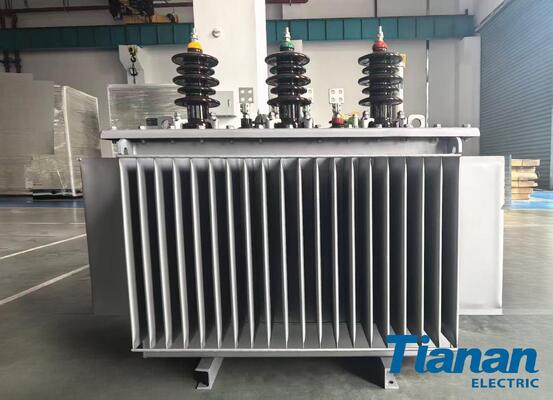

Breakdown voltage 54kV Oil Immersed Transformer Featuring ONAN Cooling Method Providing Electrical Energy Conversion and Distribution

Product Description:

The Oil Immersed Power Transformer is a highly reliable and efficient electrical device designed to step down or step up voltage levels in power distribution networks. Specifically engineered to meet the rigorous demands of modern power systems, this transformer operates at a rated voltage of 15000/400 V and has a rated capacity of 100KVA, making it ideal for various industrial, commercial, and residential applications. With its robust design and superior performance, the Oil Immersed Power Transformer ensures stable and continuous power supply, minimizing energy losses and enhancing overall system efficiency.

This product is a three-phase transformer, which allows it to handle large amounts of electrical power while maintaining high efficiency and reliability. The three-phase configuration is particularly beneficial for power distribution systems, as it provides a consistent power flow and balanced load distribution. This makes the transformer suitable for use in electrical grids, substations, and other critical infrastructure where dependable power transformation is essential.

The cooling method employed in this transformer is ONAN (Oil Natural Air Natural), a widely used and effective cooling technique for oil immersed transformers. In the ONAN cooling method, the transformer’s insulating oil absorbs heat generated by the core and windings, which is then naturally circulated within the tank. The heat is subsequently dissipated into the surrounding air through the radiator fins or cooling surfaces. This natural cooling process ensures the transformer operates at optimal temperatures, enhancing its lifespan and reducing maintenance requirements. The use of ONAN cooling also contributes to the transformer's environmental friendliness by eliminating the need for additional cooling equipment like fans or pumps.

As an Oil Immersed Distribution Transformer, this product is filled with high-quality insulating oil that serves multiple critical functions. The oil not only provides excellent electrical insulation but also acts as a cooling medium that effectively removes heat from the transformer windings and core. This dual role of the oil helps in maintaining the transformer's thermal stability and prevents overheating, which is crucial for ensuring uninterrupted power delivery and extending the transformer's service life. The oil also protects internal components from moisture and contaminants, thereby enhancing overall durability and reliability.

Manufactured in accordance with the IEC60076 standard, this Oil Immersed Transformer complies with international quality and safety regulations. The IEC60076 standard specifies the requirements for power transformers, including design, testing, and performance criteria. Compliance with this standard guarantees that the transformer meets stringent benchmarks for efficiency, insulation, temperature rise, short-circuit strength, and mechanical integrity. This adherence to global standards provides end-users with confidence in the product's safety, reliability, and operational excellence.

The Oil Immersed Distribution Transformer is designed for ease of installation and maintenance. Its compact and sturdy construction allows for flexible placement in various environments, including outdoor substations and indoor electrical rooms. The transformer’s design incorporates features that facilitate routine inspection and servicing, such as accessible oil filling and draining ports, temperature monitoring devices, and pressure relief systems. These features ensure that the transformer remains in peak condition throughout its operational life, reducing downtime and maintenance costs.

In summary, the Oil Immersed Power Transformer with a rated voltage of 15000/400 V, rated capacity of 100KVA, and three-phase configuration is an essential component in modern power distribution systems. Utilizing ONAN cooling and filled with high-quality insulating oil, this Oil Immersed Distribution Transformer offers superior thermal performance, reliability, and longevity. Its compliance with the IEC60076 standard further underscores its quality and safety credentials. Whether for industrial, commercial, or residential power distribution, this Oil Immersed Transformer delivers efficient and stable power transformation, making it a trusted choice for electrical utilities and infrastructure developers worldwide.

Technical Parameters:

Applications:

The Oil Immersed Transformer, model S-M-1000/15-0.4, is a highly reliable and efficient electrical device designed for various power distribution applications. Manufactured in China and certified under the GB standard, this transformer meets rigorous quality and safety requirements, ensuring optimal performance under demanding conditions. It operates at a rated frequency of 50Hz and features a three-phase configuration, making it ideal for commercial, industrial, and utility-scale power distribution systems.

The Oil Immersed Distribution Transformer is specifically designed to handle voltage levels up to a breakdown voltage of 54kV, providing stable and secure voltage transformation for medium to low voltage networks. The transformer’s oil temperature is maintained at 23℃, which helps in efficient cooling and insulation, extending the lifespan of the equipment. Compliant with the IEC60076 standard, this oil immersed transformer guarantees excellent performance and durability in various environmental conditions.

This oil immersed transformer is widely used in multiple application scenarios. It is perfectly suited for urban and rural power distribution grids, where stable electricity supply is crucial for residential, commercial, and industrial customers. The transformer is also employed in renewable energy sectors, such as wind farms and solar power plants, to step up or step down voltage levels for efficient energy transmission. Additionally, it is used in manufacturing plants, mining operations, and large infrastructure projects, providing reliable power conversion and distribution to support heavy machinery and critical systems.

Due to its robust design and wooden pallet packaging, the Oil Immersed Transformer is easy to transport and install in remote or challenging locations. Its oil immersion cooling system ensures excellent heat dissipation, which is essential for continuous operation under heavy load conditions. This makes the Oil Immersed Distribution Transformer a preferred choice for utilities and enterprises seeking dependable and long-lasting electrical infrastructure components.

In summary, the Oil Immersed Transformer S-M-1000/15-0.4 from China, with its GB certification and adherence to IEC60076 standards, is ideal for diverse power distribution occasions including urban power grids, renewable energy projects, industrial facilities, and infrastructure developments. Its reliable performance, efficient cooling, and sturdy packaging make it a versatile and essential product for modern electrical power systems.

Customization:

Our Oil Immersed Transformer, model number S-M-1000/15-0.4, is a high-quality Oil Immersed Distribution Transformer designed to meet diverse power needs. Manufactured in CHINA, this 3-phase transformer operates at a rated frequency of 50Hz with a rated voltage of 15000/400 V, ensuring reliable performance for various electrical applications.

The cooling method employed is ONAN, which guarantees efficient heat dissipation and prolonged transformer life. With a tapping range of ±2x2.5%, our Oil Immersed Transformer provides flexible voltage regulation to adapt to different load conditions.

Certified under GB standards, this transformer assures compliance with rigorous quality and safety requirements. It is carefully packaged on a wooden pallet to ensure secure delivery and protection during transportation.

Whether you require an Oil Immersed Transformer for industrial, commercial, or distribution purposes, our customizable product offers optimal performance, durability, and safety tailored to your specifications.
