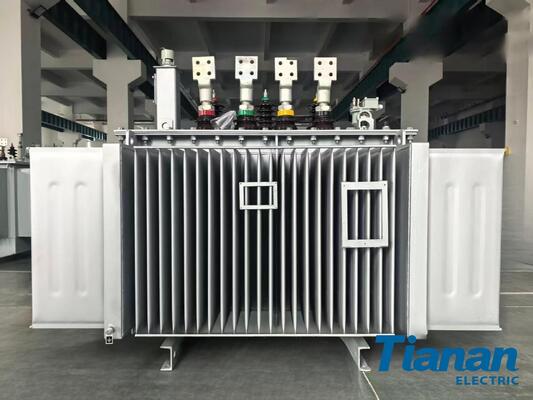

Oil Temp 23C Oil Immersed Distribution Transformer Rated Frequency 50Hz Designed for Load Handling and Voltage Stability

Product Description:

The Oil Immersed Power Transformer is a highly reliable and efficient electrical device designed to meet the demanding requirements of modern power distribution systems. This transformer is specifically engineered as an Oil Immersed Distribution Transformer, which ensures superior insulation and cooling performance by submerging its core and windings in high-quality insulating oil. This design not only enhances the transformer's durability but also significantly improves its operational stability under various load conditions.

One of the key features of this Oil Immersed Transformer is its rated capacity of 100KVA, making it an ideal choice for medium-scale power distribution applications. With a rated voltage of 15000/400 V, it effectively steps down high voltage from the primary side to a safer, usable low voltage on the secondary side. This voltage configuration is particularly suitable for commercial and industrial power supply systems, ensuring consistent and reliable power delivery to end-users.

The transformer operates as a three-phase unit, which is essential for balanced power distribution in three-phase electrical networks. The three-phase design helps in minimizing power losses and voltage fluctuations, thereby providing a stable electrical output. This makes the Oil Immersed Distribution Transformer highly suitable for use in substations, manufacturing plants, and other facilities where consistent power quality is crucial.

Another significant attribute of this transformer is its tapping range of ±2x2.5%. The adjustable tapping allows for fine-tuning the voltage output to accommodate variations in the supply voltage or load requirements. This feature is particularly beneficial in maintaining voltage stability and optimizing the performance of electrical equipment connected to the transformer. The tapping mechanism is designed for ease of operation and long-term reliability, ensuring minimal maintenance and downtime.

Safety and durability are paramount in the design of this Oil Immersed Transformer. It boasts a high breakdown voltage of 54kV, which indicates its excellent insulation strength and ability to withstand transient voltage surges without failure. This high breakdown voltage rating ensures that the transformer can operate safely in environments prone to electrical disturbances, thereby protecting both the transformer itself and the connected electrical network.

The insulating oil used in this Oil Immersed Distribution Transformer serves multiple purposes. It provides effective cooling by dissipating the heat generated during operation, prevents electrical discharges within the transformer, and acts as a barrier against moisture and contaminants. This oil immersion technique significantly extends the lifespan of the transformer and enhances its performance under varying environmental conditions.

In addition to its robust technical specifications, this Oil Immersed Power Transformer is designed with environmental considerations in mind. The use of high-quality insulating oil and advanced manufacturing techniques ensures minimal environmental impact while delivering optimal energy efficiency. The transformer’s construction complies with international standards, guaranteeing reliable operation and ease of integration into existing power distribution networks.

Overall, the Oil Immersed Distribution Transformer with a 100KVA rating, 15000/400 V voltage specification, ±2x2.5% tapping range, three-phase configuration, and a breakdown voltage of 54kV represents a perfect blend of performance, reliability, and safety. It is an excellent solution for utilities and industries seeking to enhance their power distribution infrastructure with a dependable Oil Immersed Transformer that meets rigorous operational demands.

Technical Parameters:

Applications:

The Oil Immersed Transformer, model S-M-1000/15-0.4, is a highly reliable and efficient power transformer designed and manufactured in China, adhering to the stringent GB certification standards. With a rated capacity of 100KVA and a rated frequency of 50Hz, this three-phase Oil Immersed Transformer operates at a rated voltage of 15000/400 V, making it suitable for a wide range of electrical distribution applications. Its oil temperature is maintained at 23℃, ensuring optimal performance and longevity.

This Oil Immersed Distribution Transformer is ideal for use in various industrial, commercial, and residential power distribution networks. It is commonly applied in electrical substations, manufacturing plants, and large commercial complexes where stable voltage transformation and reliable power delivery are critical. The transformer's robust design and oil-immersed cooling system enable it to handle heavy load conditions and fluctuating power demands efficiently.

In urban and rural power grids, the Oil Immersed Transformer plays a vital role in stepping down high transmission voltages to safer, usable levels for end-users. It is also widely used in renewable energy projects, such as solar and wind farms, where consistent voltage regulation is essential for system stability. The transformer’s durable construction, combined with packaging on wooden pallets, ensures safe transportation and easy installation in diverse environments.

Moreover, the Oil Immersed Distribution Transformer is well-suited for emergency power systems and backup power solutions, providing reliable voltage transformation during outages or peak load conditions. Its capability to maintain stable oil temperature at 23℃ contributes to enhanced thermal performance and reduces the risk of overheating, thereby extending the transformer's operational life.

Overall, the Oil Immersed Transformer model S-M-1000/15-0.4 is a versatile and dependable component in modern electrical infrastructure, supporting efficient energy distribution across various scenarios. Whether used in industrial facilities, commercial buildings, or residential areas, this transformer ensures consistent power quality and safety, making it an indispensable asset for power system operators.

Customization:

Our Oil Immersed Transformer product, model number S-M-1000/15-0.4, offers extensive product customization services to meet your specific requirements. Manufactured in CHINA and certified under GB standards, this Oil Immersed Transformer ensures reliable performance and compliance with industry norms.

The Oil Immersed Transformer features a rated capacity of 100KVA and operates at a rated voltage of 15000/400 V, making it suitable for various power distribution applications. Its cooling method is ONAN, which guarantees efficient thermal management during operation.

Customization options include an adjustable tapping range of ±2x2.5%, allowing precise voltage regulation tailored to your needs. The product adheres to the IEC60076 standard, ensuring high quality and safety standards are met.

For secure transportation, the Oil Immersed Transformer is packaged using sturdy wooden pallets, providing protection during shipping and handling. Choose our Oil Immersed Transformer customization services to get a dependable and efficient transformer solution designed specifically for your application.

Support and Services:

Our Oil Immersed Power Transformers are supported by a comprehensive range of technical support and services designed to ensure optimal performance and longevity. We provide expert consultation during the installation phase to guarantee proper setup and integration with your existing systems.

Routine maintenance services are available to help prevent unexpected failures and extend the lifespan of your transformer. Our skilled technicians perform thorough inspections, oil testing, and diagnostic evaluations to identify any potential issues early.

In the event of a fault or malfunction, our rapid response repair services minimize downtime and restore functionality efficiently. We also offer refurbishment and upgrade options to enhance transformer capabilities and adapt to evolving power requirements.

Training programs are provided for your operational staff to ensure they are well-versed in best practices for handling, operating, and maintaining oil immersed transformers safely and effectively.

Additionally, we supply genuine replacement parts and consumables to maintain the reliability and safety of your equipment. Our technical support team is available to assist with troubleshooting, technical inquiries, and providing detailed product documentation and manuals.

By choosing our Oil Immersed Power Transformer services, you benefit from a partner committed to quality, reliability, and continuous support throughout the lifecycle of your equipment.
