10000kVA / 10KV Composite Oil Type Distribution Rectifier Transformer

China Ningbo Tianan (Group) Co.,Ltd. certification
China Ningbo Tianan (Group) Co.,Ltd. certification
I'm Online Chat Now

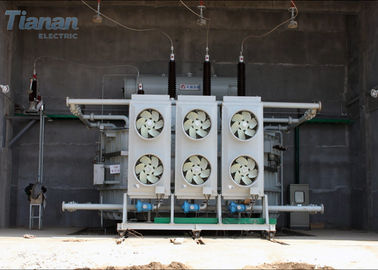

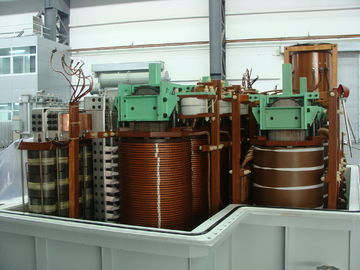

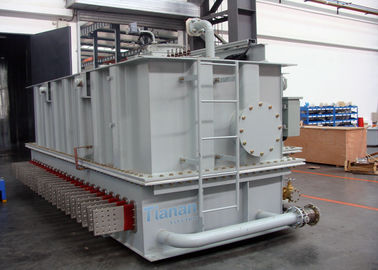

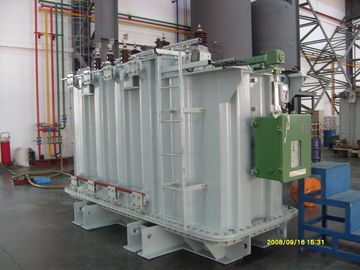

10000kVA / 10KV Composite Oil Type Distribution Rectifier Transformer

10000kVA / 10KV Composite Oil Type Distribution Rectifier Transformer
10000kVA / 10KV Composite Oil Type Distribution Rectifier Transformer 10000kVA / 10KV Composite Oil Type Distribution Rectifier Transformer 10000kVA / 10KV Composite Oil Type Distribution Rectifier Transformer 10000kVA / 10KV Composite Oil Type Distribution Rectifier Transformer

Large Image :  10000kVA / 10KV Composite Oil Type Distribution Rectifier Transformer

Product Details:
Place of Origin: CHINA
Brand Name: Tianan Electric
Certification: CQC
Model Number: SFZ, SF, type
Payment & Shipping Terms:
Minimum Order Quantity: 1 uint
Price: Pending
Packaging Details: as Standard
Delivery Time: 45 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 2000 units/year
Detailed Product Description
Phase: 3 Phase Core: Core-type Transformer
Shape Of Core: Ring Application: Power
High Light:

oil type transformer

,

power transmission transformer

10000kVA / 10KV Composite Oil Type Distribution Rectifier Transformer



Overview:

11kV Oil immersed Self cooled Rectifier Transformer has the advantages of low loss, low noise and high efficiency and can achieve good energy-saving effect and reduce pollution. Compared with common oil-immersed transformer, it is unnecessary for full-sealed transformer to be equipped with oil conservator and change in oil volume is automatically adjusted and compensated by elasticity of corrugated sheet of corrugated tank, and transformer is isolated from air to prevent and slow down oil degrading and insulation aging, enhance operational reliability, with normal operation and no maintenace.





Rated capacity (KVA)
Connection symbol
High voltage (KV)
Tapping range
Low voltage (KV)
No-load loss(W)

Load loss(W)
No-load current (%)
Short circuit impedance (%)
30













Yyn0  or Dyn11












       6         6.3   10  10.5
11













      ±5%      or ±2*2.5%














0.4
100
630/600
2.3








4.0
50
130
910/870
2.0
63
150
1090/1040
1.9
80
180
1310/1250
1.9
100
200
1580/1500
1.8
125
240
1890/1800
1.7
160
280
2310/2200
1.6
200
340
2730/2600
1.5
250
400
3200/3050
1.4
315
480
3830/3650
1.4
400
570
4520/4300
1.3
500
680
5410/5100
1.2
630
810
6200
1.1



4.5
800
980
7500
1.0
1000
1150
10300
1.0
1250
1360
12800
0.9
1600
1640
14500
0.8
2000
2280
17820
0.6

5.0
2500
2700
20700
0.6

For detailed technical specifications, please contact us.
