|Environment:||Outdoor||Insulation Oil:||High Quality Grade Mineral Oil|
|Test Equipment:||IEC Standard||Voltage:||10~35kv|
three phase transformer,
power transmission transformer

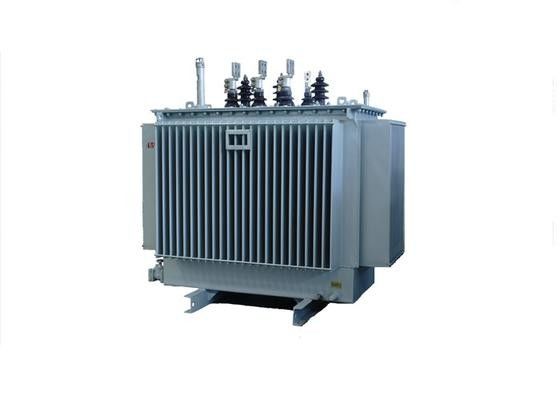

10kV Oil Immersed Off - Load Tap Changer Power Distribution Transformer
11KV class transformers are widely used in power transmission and distribution stations, industry plants, Generation Set-up Unit (GSU). They have the characteristic of high efficiency, low loss and maintenance free.
Structural Features :
► Iron core
The iron core is made of cold rolled grain oriented silicon steel sheet. Laminations are cut to length on GEORG cut-to- length line with step-lap cut and automatic stacking functions. The multi-step lamination structure can reduce the loss and noise .The steel sheet in the core limbs and yokes are clamped together by glass-epoxy bonds.
High quality enameled or paper covered copper is used as conductor, the winding was made as drum type, spiral type, improved spiral type, continuous type and interleaved type to ensure the insulation strength. Standard tapings are ±2*2.5%of the HV winding.
The tank, cover and the conservator are
made by corrugated steel plate .For the small transformers, we use a deep tank and a cover, but for larger transformers, we manufacture bell type .The corrugated construction are a effective way for oil cooling.
► Insulation oil
The tanks are filled with high quality grade mineral oil as per IEC296 and it is PCB and PCT free. The oil is used to help cooling the transformer. It is also used provide part of the electrical insulation between internal live parts.
Tap changers are used to regulate the output voltage of the transformers to required levels .We achieve this by changing the ratios of the transformer on the system by altering the number of turns in the HV winding .Tap changers can be on load (OLTC) or off load(OCTC).
The core and the windings assembled together from the active part of the transformer. The active body assembled with multi-windings and identical pressure dry method adopted, effectively improved the electrical strength and the ability to short circuit withstanding
Technical Data of Typical Products ;
