33KV Floorstanding Prefabricated Compact Transformer , Combined Substation

China Ningbo Tianan (Group) Co.,Ltd. certification
China Ningbo Tianan (Group) Co.,Ltd. certification
I'm Online Chat Now

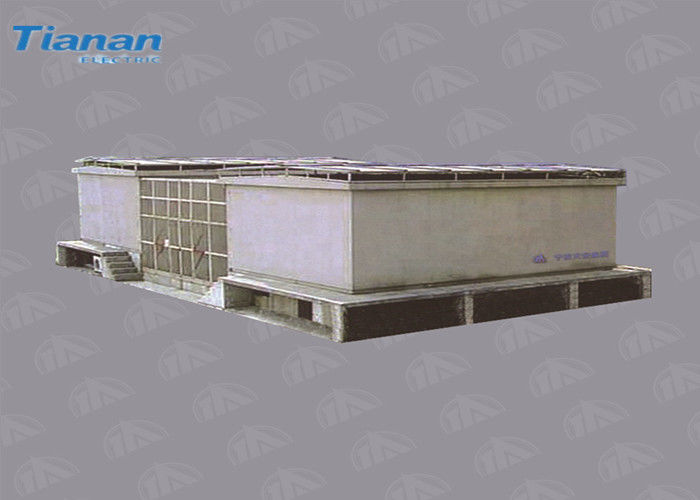

33KV Floorstanding Prefabricated Compact Transformer , Combined Substation

33KV Floorstanding Prefabricated Compact Transformer , Combined Substation
33KV Floorstanding Prefabricated Compact Transformer , Combined Substation

Large Image :  33KV Floorstanding Prefabricated Compact Transformer , Combined Substation

Product Details:
Place of Origin: China
Brand Name: Tianan Electric
Certification: CTQC
Model Number: ZBW3-40.5
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: Pending
Packaging Details: Wooden Case
Delivery Time: 45 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 2000 PCS/year
Detailed Product Description
Rated Voltage: 33KV Structure: Floorstanding
Altitude: <1, 000m Above Sea Level Environment: Outdoor
Tank: Corrugated Steel Plate Insulation Oil: High Quality Grade Mineral Oil
High Light:

oil immersed distribution transformer

,

packaged transformer substation

33KV Floorstanding Prefabricated Compact Transformer , Combined Substation



Overview:
ZBW3-40.5 series Packaged substation is a kind of integrated complete power transmission and distribution equipiment, used in 24kV, AC 50Hz power tranmission and distribution system with a transfromer of rated capacity of 30-2500kVA. It is widely used in out-door power supply fields such as high buildings, residentail zone, factory and mining , hotel, park, oil field, airport, wharf, railway, shopping store and other temporary facilities. This product can be used not only in a ring net fro power distribution but also can serve as terminal power supply for power transmiission line.



Feature:
ZBW3-40.5 series package substation consists of three parts: transformer room, high voltage room and low voltage room.
1. High voltage sides is equipped with HXGN series RMU (aerogenesis type, compressed air type, vacuum type or SF6 type), equipped with LBS, fuse inside (CB could be equipped, if required).
2. LV side adopts new type ACB, with high breaking capacity and good protection capacity.
3. Transformer room adopts oil immersed type or dry type transformer.
4. Caries materials can be used as enclosure materials, such as aluminum alloy plate, steel pate, compound plate, etc. Roof is double layered, protecting against heat radiation.
5. Inside, there are cooling equipment and anti-comdensation equipment.





Parameters:

Unit Switchgear Circuit Breaker Item Unit Parameters



HV Unit



40.5kV KYN10-40.5
JYN1-40.5
ZN23-35
ZN12-35
LN2-35(Z)
Rated Voltage kV 40.5
Rated Current A 1250-1600
Rated Short-circuit Breaking Current kV 20-31.5
Rated Short-circuit Making Current (Peak) A 50-80
Load Switch NAL36
NALF36
Rated Current A 630
Rated Short-time Withstand Current kA/s 25/2
LV Unit 12kV XGN56-12
XGN2-12
KZN1-12
KYN1-12
ZN28A-12
ZN28B-12
VD4
VT2-12
VT1-12
Rated Voltage kV 12
Rated Current A 630-3150
Rated Short-circuit Breaking Current (r.m.s) kA 16-50
Rated Short-circuit Making Current (Peak) kA 40-125
HXGN11-12(F)
HXGN26-12(F)
Load Switch
FN16-12
FN26-12
FN26-12R
Rated Current A 630
Rated Short-time Withstand Current kA/s 20/3,25/2
0.4kV GGD
GCT
GCS

DW15
ME,M,F
DZ20
CM,H,S

series

Rated Circuit Breaker Current A 70-3900
On-Off Capacity (400V) kA 28-80
Transformer Unit SC9,S9,SZ9Transformer Rated Voltage kV 40.5
Rated Capacity kVA 400-20000
Transformer Ratio kV / kV 35/10,35/6.3,35/0.4
