24KV Indoor Metal - Clad AC Switchgear Medium Voltage Switchgear

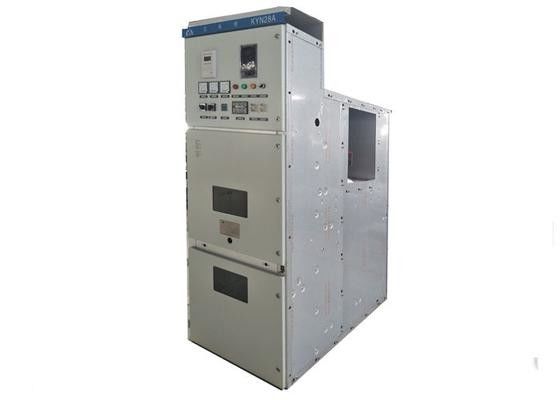

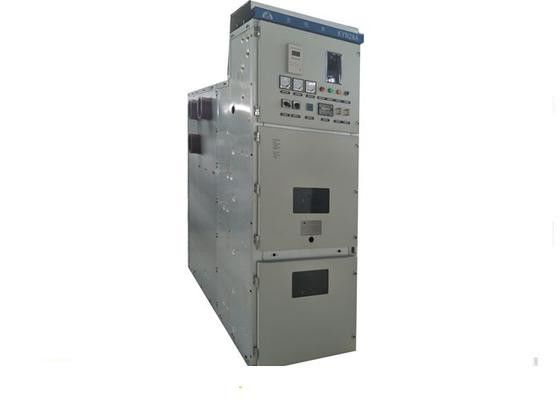

Large Image : 24KV Indoor Metal - Clad AC Switchgear Medium Voltage Switchgear

Product Details:

Place of Origin:	China
Brand Name:	Tianan Electric
Certification:	VDE, CCC, ISO9001:2000, IEC62271:200
Model Number:	KYN28A-24

Payment & Shipping Terms:

Minimum Order Quantity:	1 unit
Price:	Pending
Packaging Details:	Wooden Cases
Delivery Time:	45 work days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	5000 PCS/year

Contact Now

Detailed Product Description

Shell Meterial:

Stainless Steel

Rated Voltage:

15KV-24 Kv

Altitude:

Up To 1, 000m Above Sea Level

Protection Level:

Enclosure Is IP4X

Highlight:

middle voltage switchgear

gis gas insulated switchgear

24KV Indoor Metal - Clad AC Switchgear Medium Voltage Switchgear
NINGBO TIANAN (GROUP) CO., LTD.

General

KYN28-24metal-clad withdrawable switchgear is suitable for 3- phase AC 50Hz/15~24kV single busbar and single busbar section system. Apply to distribute electricity power and implement system control,protection,supervision monitoring.
Operating Conditions

No.	Description	Requirement
1	Ambient air temperature	-10℃ ~ +40℃
2	Daily average saturated vapor pressure	≤ 2.2×10mpa
3	Monthly average saturated vapor pressure	≤ 1.8×10mpa
4	Daily average relative humidity	≤95%
5	Monthly average relative humidity	≤90%
6	Altitude	≤1000m
7	Anti-seismic intensity	≤ 8°
7	No fire, explosion, danger, severe contamination, chemical corrosion and violent vibration.

Technical Parameter

Item		Unit		Parameters
Rated Voltage (Maximum Operating Voltage)		kV		24
Rated Insulation Level	1min Power Frequency Withstand Voltage	kV		65
	Lightning Impulse Withstand Voltage	kV		125
Rated Frequency		Hz		50
Rated Main Busbar Current		A		630,1250,1600,2000,2500,3150
Rated Branch Busbar Current		A		630,1250,1600,2000,2500,3150
4s Thermal Stability Current (r.s.m)		kA		16,20,25,31.5
Rated Dynamic Current(Peak)		kA		40,50,63,80
Protection Level		Enclosure is IP4X
Dimension (WidthDepthHeight)		mm	1000×1900×2300
