Prefabricated Compact Transformer SubstationFor Wind Power Generation With 24KV

China Prefabricated Compact Transformer SubstationFor Wind Power Generation With 24KV supplier
Prefabricated Compact Transformer SubstationFor Wind Power Generation With 24KV supplier Prefabricated Compact Transformer SubstationFor Wind Power Generation With 24KV supplier

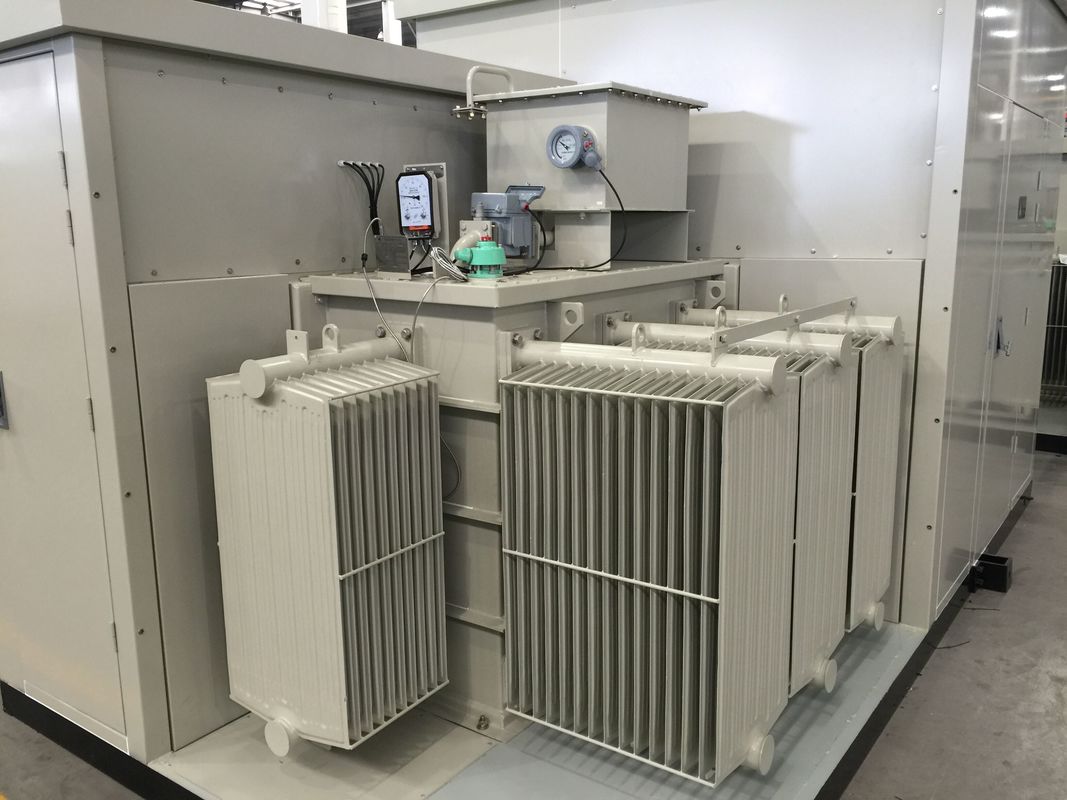

Large Image :  Prefabricated Compact Transformer SubstationFor Wind Power Generation With 24KV

Product Details:

Place of Origin: CHINA
Brand Name: Tianan
Certification: CQC
Model Number: YBT

Payment & Shipping Terms:

Minimum Order Quantity: 1Unit
Price: Pending
Packaging Details: Standard export package
Delivery Time: 45 work days
Payment Terms: D/A, D/P, T/T, L/C, Western Union, MoneyGram
Supply Ability: 1000 Sets / Year
Contact Now
Detailed Product Description
Voltage: 24KV Transformer: Oil / Dry Type Transforemer
Capacity: 1000KVA~5500KVA HV Unit: AIS/C-GIS/RMU
LV Unit: 400V /600V Protection: IP33~IP54

Prefabricated Compact Transformer SubstationFor Wind Power Generation With 24KV​
Service condition:

1. Altitude: ≤ 1000m (above sea level)
2. Ambient temperature: Max. 40C Min. -25C
>>Max. Monthly average temperature: ≤ 35C
>>Max. Yearly average temperature: ≤ 25C
3. Relative humidity: Daily average value≤ 95%, monthly average value≤ 90%
4. Max. Daily difference in temperature: 25C
5. Sunlight intensity: 0.1W/CM2 (wind speed 0.5M/S);
6.Pollution grade: Grade III;
7.Outdoor wind speed: ≤ 35m/s;
8. Rain proof grade: Grade 3;
9. The gradient on installation spot shall be not more than 3° ;
10. Ability of anti-earthquake: Horizontal acceleration of ground surface is 0.2g
Vertical acceleration of ground surface is 0.1g;
11. Installation spot: The spot should has no fire/explosion danger/serious pollution/chemical
corrosion and exquisite shake.
*****More information, please freely contact us. Glad to service you.



Reference specification for 24kV:



Item

Unit

Parameters

HV Unit Rated Voltage kV 24
Rated Frequency Hz 50
Rated Main Busbar Current A 630
1min Power Frequency Withstand Voltage To Earth, Between Phases/to open gap kV 50/65
Lightning Impulse Withstand Voltage to Earth and Between Phases/ to open gap kV 95/110
Rated Short-time Withstand Current kA/s 25/2
Rated Peak Withstand Current kA 63
Rated Short-time Making Current kA 63
Fuse Breaking Current kA 31.5
Circuit Breaker Breaking Current kA 25
LV Unit Rated Voltage V 400
Main Circuit Rated Current A 100~4000
Rated Limit Short-circuit Breaking Capacity kA 80
Rated Operating Short-circuit Breaking Capacity kA 50(65)
Rated Short-time Withstand Current kA/1s 50(65)
Branch Current, Compensation Capacity   According to users’ requirements
Transformer Unit Rated Capacity kVA 30~2000
Resistance Voltage % 4; 4.5
Tapping Range % ±2X2.5; ±5
Connected Group   Y,yn0; D,yn11
Enclosure Degree of Protection HV Room   IP33
LV Room   IP33
Transformer Room   IP23
Protection Level   IP23
Sound Level dB ≤50
