35kv Prefabricated Distribution Combined Compact Transformer Substation High reliability

China Ningbo Tianan (Group) Co.,Ltd. certification
China Ningbo Tianan (Group) Co.,Ltd. certification
I'm Online Chat Now

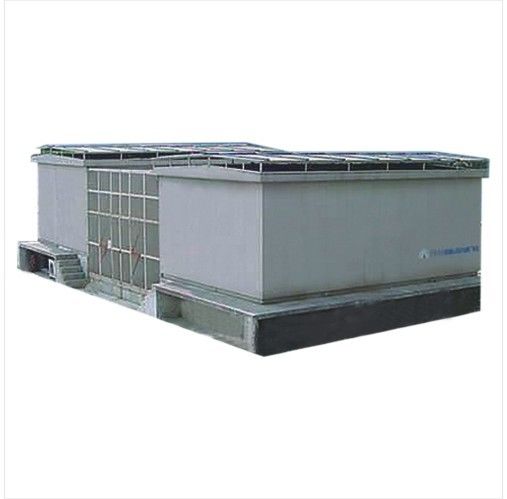

35kv Prefabricated Distribution Combined Compact Transformer Substation High reliability

35kv Prefabricated Distribution Combined Compact Transformer Substation High reliability
35kv Prefabricated Distribution Combined Compact Transformer Substation High reliability

Large Image :  35kv Prefabricated Distribution Combined Compact Transformer Substation High reliability

Product Details:
Place of Origin: CHINA
Brand Name: Tianan Electric
Certification: IEC
Model Number: ZBW3
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Packaging Details: Nude
Delivery Time: 50 work days
Payment Terms: L/C, T/T
Supply Ability: 500 Sets/Year
Detailed Product Description
HV Voltage: 35KV LV Voltage: 0.4KV/12KV
Capacity: 400-20000KVA
High Light:

oil immersed distribution transformer

,

packaged transformer substation



35kv Prefabricated Distribution Combined Substation Power Transmission/Supply Substation,High reliability



1. Altitude: ≤ 1000m (above sea level)
2. Ambient temperature: Max. 40C Min. -25C
>>Max. Monthly average temperature: ≤ 35C
>>Max. Yearly average temperature: ≤ 25C
3. Relative humidity: Daily average value≤ 95%, monthly average value≤ 90%
4. Max. Daily difference in temperature: 25C
5. Sunlight intensity: 0.1W/CM2 (wind speed 0.5M/S);
6. Outdoor wind speed: ≤ 35m/s;
7. Pollution grade: Grade III;
8. Rain proof grade: Grade 3;
9. The gradient on installation spot shall be not more than 3° ;
10. Ability of anti-earthquake: Horizontal acceleration of ground surface is 0.2g
Vertical acceleration of ground surface is 0.1g;
11. Installation spot: The spot should has no fire/explosion danger/serious pollution/chemical
corrosion
and exquisite shake.





a short time of erection, small occupied areas, low investment.

b. Can be moved, low waste, strong whole set, convenient to use and installation.

c. High reliability.

d. The enclosure is made of aluminum alloy plate (colorful synthetic plate) with well anti-corrosive preference, and uses thermal insulation material with long service life as the inner, which can prevent sun heat radiation.

e. There are cooling and anti-condensation equipments in the substation.

f. It can be fitted with integrated automation equipment.

g. It can configure all kinds of communication equipment free.
