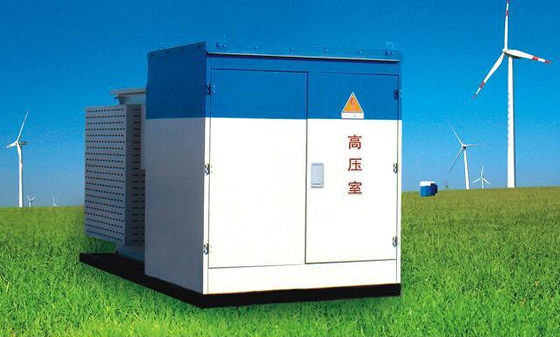

36kV Combined Transformer Windpad Three Phase Transformer / Wind Power

China 36kV Combined Transformer Windpad Three Phase Transformer / Wind Power supplier

Large Image :  36kV Combined Transformer Windpad Three Phase Transformer / Wind Power

Product Details:

Place of Origin: CHINA
Brand Name: TIANAN
Certification: ISO9001-2000, ISO9001, CCC
Model Number: ZGS-Z. F-/35

Payment & Shipping Terms:

Minimum Order Quantity: 1UNIT
Price: US $10,000/ Set
Packaging Details: Nude
Delivery Time: 50 work days
Supply Ability: 20000Sets/Year
Contact Now
Detailed Product Description
Voltage: 36KV Transformer: Oil-immersed Type Transformer
Winding Type: Two-winding Transformer Phase: Three
Capacity: 800~1600KVA Voltage Current: 315/630A

Main technical parameter of transformer
Voltage combination
Rated voltage of HV side: 36kV
Rated voltage of LV side: 0.27kV, 0.3kV, 0.315kV, 0.4kV
HV tapping range+5% or + 2x2.5%
Connecting symbol: Dyn11 or Yyn0
Condensation controller and other auxiliary equipment can be added in the body as per clients' requests.
Insulation class: A class
No. of phases: three
Note: As per different requirement from client, the capacity of transformer can be customized.

Product technical parameter
Parameter of 35kV oil immersed load switch
Table 1

S/N Name Unit Parameter
1 Rated voltage KV 40.5
2 Rated current A 315 630
3 Rated frequency Hz 50
4 Rated short-circuit withstand current kA/2s 12.5 20
5 Rated peak withstand current kA 31.5 50
6 Mechanical endurance times 2000
7 1 min power withstand voltage (phase-to-phase, phase-to-earth) kV 95
8 Lightning impulse level (phase-to-phase, phase-to-earth) KV 185



Parameter of 35kV Fuse
Table 2

Rated voltage Fuse rated current A Fusing element rated current A Rated Max. breaking current kA
40.5 40 20,25,31.5,40 31.5


Parameter of Transformer

Rated Capacity(KVA) S9 series transformer Impedance voltage(%)
No-load loss(W) Load-loss(W)
800 1230 9900 6.5
900 1370 11990 6.5
1000 1490 12100 6.5
1400 1950 16500 6.5
1600 2120 17550 6.5

Contact Details
Ningbo Tianan (Group) Co.,Ltd.

Contact Person: admin

Send your inquiry directly to us (0 / 3000)
